Question 1 Single choice

A network administrator wants to join a switch to an Intelligent Resilient Framework (IRF) virtual device.
The administrator changes the switch member ID from 1 to 2.

What must the administrator do before configuring the IRF port on this switch?

  1. A

    Physically connect the switch to the IRF master device.

  2. B

    Reboot the switch.

  3. C

    Disable IP routing.

  4. D

    Enable the physical interfaces that will be assigned to the IRF port.

Show answer and explanation

Correct answer: D

Question 2 Single choice

Refer to the exhibit.

Examine the partial HP switch output shown in the exhibit.
Based on this output, if the switch receives a packet with a destination IP address of 10.2.90.87, which entry in the routing table would the switch use to forward the packet?

  1. A

    10.2.128.0/17

  2. B

    10.2.0.0/17

  3. C

    10.2.64.0/19

  4. D

    10.2.64.0/18

Show answer and explanation

Correct answer: C

Question 3 Single choice

A network administrator configures several HP Comware switches to be part of a single Intelligent Resilient Framework (IRF) virtual device.

What is correct about the domain and member IDs in this configuration?

  1. A

    The switches have different domain IDs and different member IDs.

  2. B

    The switches have the same domain ID and the same member ID.

  3. C

    The switches have the same domain ID and different member IDs.

  4. D

    The switches have different domain IDs and the same member ID.

Show answer and explanation

Correct answer: C

Question 4 Single choice

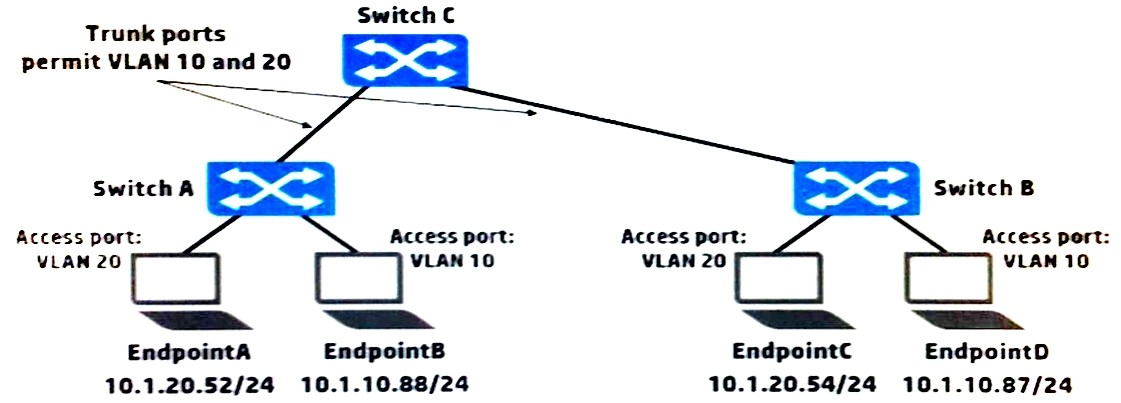

Refer to the exhibit.

Which endpoint or endpoints receive broadcast ARP requests sent by EndpointA?

  1. A

    EndpointB, EndpointC, and EndpointD

  2. B

    EndpointB only

  3. C

    EendpointB and EndpointC only

  4. D

    EndpointC only

Show answer and explanation

Correct answer: D

Question 5 Single choice

What is the maximum number of active links supported between a device and HP ProVision switches when distributed trunking is used to connect the device to the ProVision switches?

  1. A

    Two

  2. B

    Four

  3. C

    Six

  4. D

    Eight

Show answer and explanation

Correct answer: A

Question 6 Single choice

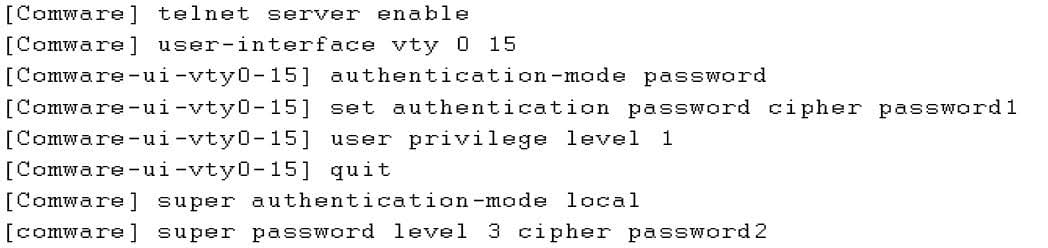

Refer to the exhibit.

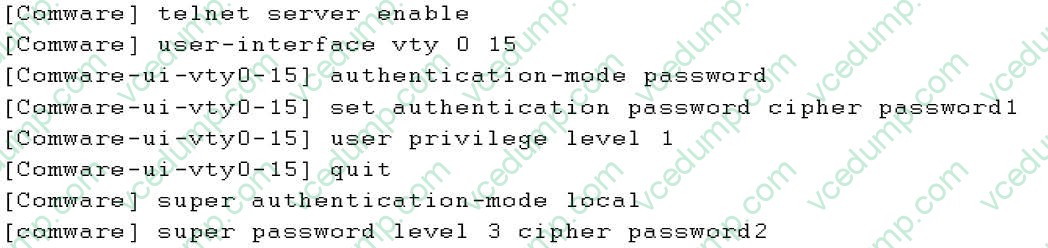

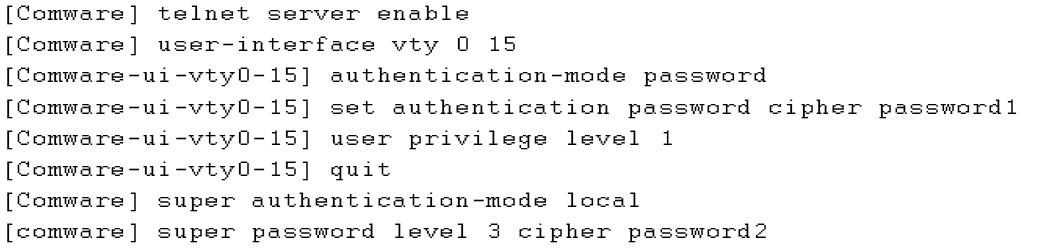

An HP Comware switch is using its default user-interface settings. The network administrator then enters the commands shown in the exhibit.

What correctly describes how an admin user must now log in?

  1. A

    When the admin user logs in to the console port, the admin user must enter either a password of password1 or password2.

  2. B

    When the admin user logs in using Telnet, the admin user must enter either a password of password1 or password2.

  3. C

    When the admin logs in using Telnet, the admin user must enter a password of password1 and is given level 1 privileges.

  4. D

    When the admin user logs in to the console port, the admin user must enter a password of password1 and is given level 3 privileges.

Show answer and explanation

Correct answer: D

Question 7 Single choice

What is one difference between Network Segment-based discovery and ARP-based discovery on HP Intelligent Management Center (IMC)?

  1. A

    With Network Segment-based discovery, network device SNMP settings must match SNMP settings on IMC. With ARP-based discovery, only ARP settings must match.

  2. B

    With Network Segment-based discovery, IMC can discover multiple devices. With ARP-based
    discovery, IMC can only discover one device; the administrator must re-run ARP-based discovery to
    discover a second device.

  3. C

    With Network Segment-based discovery, the administrator enters a range of IP addresses to discover.
    With ARP-based discovery, the administrator enters one seed IP address, and IMC dynamically learns more IP addresses to discover.

  4. D

    With Network Segment-based discovery, IMC can discover Layer 3 devices. With ARP-based discovery, IMC can discover only Layer 2 devices.

Show answer and explanation

Correct answer: C

Question 8 Single choice

A network administrator wants an HP switch to use an IP address that is always up for its Open Shortest Path First (OSPF) router ID.

Which address meets this requirement?

  1. A

    An IP address configured as the global management address

  2. B

    An IP address on the interface for the default VLAN, which is typically VLAN

  3. C

    An IP address on the VLAN 1 interface

  4. D

    An IP address on a loopback interface

Show answer and explanation

Correct answer: D

Question 9 Single choice

A network administrator has copied new software to an HP ProVision switch and placed this software in the secondary flash location. The switch is currently booting from the primary flash location. The administrator wants the switch to start using the new software.

What should the administrator do to accomplish this?

  1. A

    Execute the command to boot the system from the secondary flash.

  2. B

    Reboot the switch, which automatically causes the switch to use the newer software.

  3. C

    Copy the secondary software to the primary software slot.

  4. D

    Rename the secondary software as the primary software.

Show answer and explanation

Correct answer: A

Question 10 Single choice

When configuring Multiple Spanning Tree Protocol (MSTP), how should VLANs be separated to perform load balancing?

  1. A

    placed into separate instances

  2. B

    configured with different priority values

  3. C

    never configured with more than one VLAN per instance

  4. D

    placed into separate regions

Show answer and explanation

Correct answer: A
