HP HP Certifications HP2-Z37 Questions & Answers

• Question 21:

  Which HP Comware term defines the untagged VLAN on a trunk port that is commonly used for network management traffic?

  A. default VLAN

  B. port VLAN identifier

  C. management VLAN

  D. access VLAN tag

  Correct Answer: B

• Question 22:

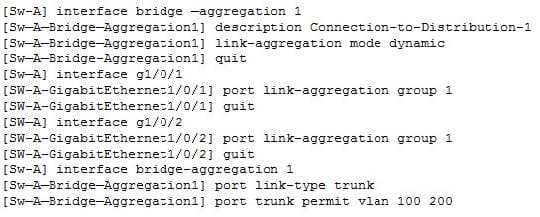

  Refer to the exhibit.

  Exhibit: HP Comware switch configuration



  Based on the exhibit output, which type of link aggregation is this?

  A. dynamic trunk protocol

  B. static trunking

  C. dynamic port group

  D. static LACP

  Correct Answer: C

• Question 23:

  Refer to the Exhibit. Exhibit: HP Comware switch configuration. [Comware] vlan 100 [Comware-vlan100] quit [Comware] vlan 200 [Comware-vlan200] quit [Comware] interface g1/0/22 [Comware-GigabitEthernet1/0/22] port link-type trunk [Comware-GigabitEthernet1/0/22] port trunk permit vlan 100 200 [Comware-GigabitEthernet1/0/22] quit A network administrator configures the Comware switch, as shown in the exhibit. The network administrator then connects a cable from the Comware's g1/0/22 interface to port 5 on an HP ProVision switch. Which configuration will

  successfully establish connection for VLAN 1, 100, and 200 between the two switches?

  A. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # vlan 100 tagged 5ProVision (config) # vlan 200 tagged 5

  B. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # interface 5 tagged 100 200

  C. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # interface 5 tagged 100ProVision (config) # interface 5 tagged 200

  D. ProVision (config) # vlan 100 200ProVision (config) # vlan 100 200 tagged 5

  Correct Answer: A

• Question 24:

  Exhibit1.

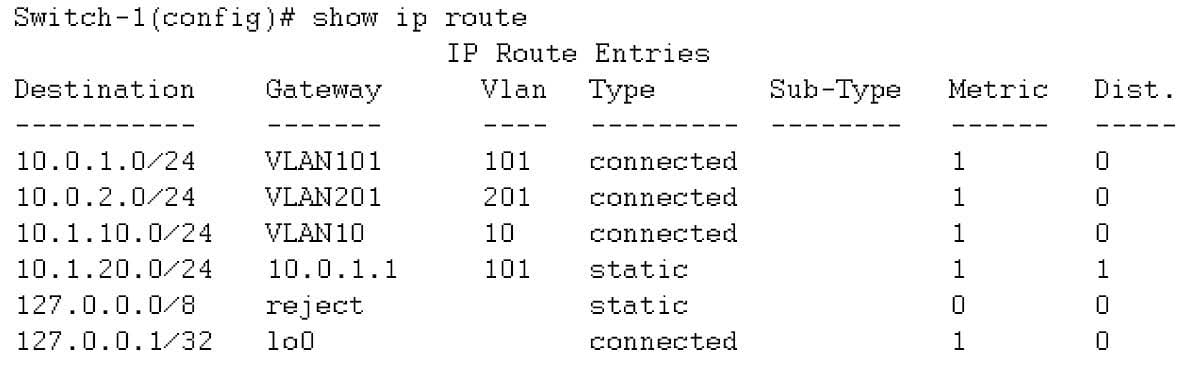

  Exhibit 2



  A network administrator wants to create a backup IP route to 10.1.20.0/24 on Switch-1. The backup route should use Link 2, and it should only be used if Link 1 is down. What is the correct setup to accomplish this?

  A. an IP route through 10.0.2.2 with administrative distance 1

  B. an IP route through 10.1.20.1 with administrative distance 1

  C. an IP route through 10.0.2.2 with administrative distance 10

  D. an IP route through 10.1.20.1 with administrative distance 10

  Correct Answer: D

• Question 25:

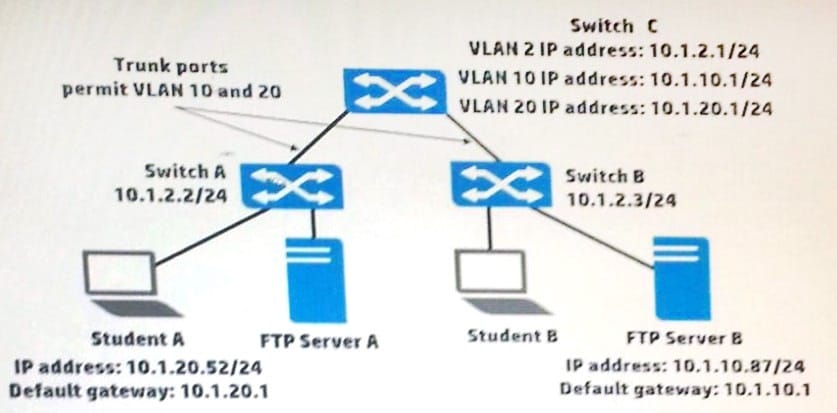

  Refer to the exhibit.



  Assume that Student A's ARP table is empty. Student A is preparing to send an FTP packet to FTP Server B and needs to discover the proper destination MAC address. For which IP address does Student A send an ARP request?

  A. 10.1.10.1

  B. 10.1.10.87

  C. 10.1.2.2

  D. 10.1.20.1

  Correct Answer: D

• Question 26:

  A network administrator examines an HP Comware switch that is configured to route packets between VLANs. The switch is configured with multiple routing protocols. All routing protocols have learned of the same destination network. All routing protocols use the default administrative distances.

  Which routing protocol does the switch select for the destination network?

  A. EIGRP

  B. Indirect

  C. OSPF

  D. Static route

  Correct Answer: C

• Question 27:

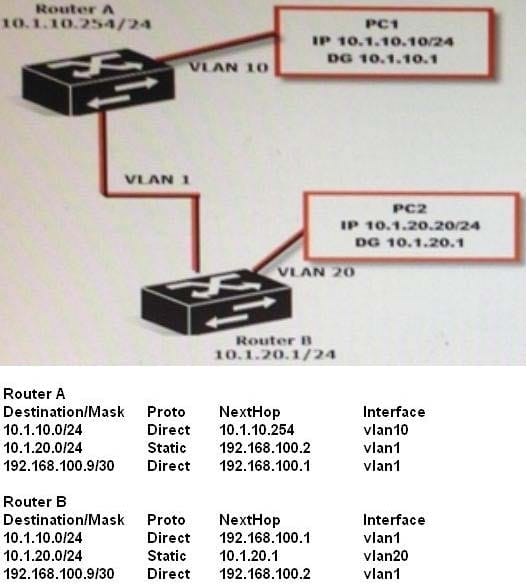

  Refer to the exhibit.

  Exhibit: Network diagram and routing tables



  Why does traffic from PC1 fail to reach PC2?

  A. Only static routes have been enabled

  B. The subnet mask is incorrect on the routers

  C. There is no route back from router B

  D. A default gateway setting is incorrect

  Correct Answer: C

• Question 28:

  Which HP device or port type can modify, read, and respond with frames that include 802.1Q VLAN tags?

  A. Comwaretrunk ports

  B. Comwareroute-mode ports

  C. ProVisionloopback ports

  D. ProVisionuntagged ports

  Correct Answer: A

• Question 29:

  A mid-sized company purchases HP Intelligent Management (IMC) to manage 500 nodes. In addition to the base platform, the company purchases the UAM, WSM, and NTA modules. Which deployment method should this company use to install their IMC base platform and modules?

  A. Stand-alone

  B. Distributed

  C. Centralized

  D. Hierarchical

  Correct Answer: B

• Question 30:

  A network administrator wants to establish an LACP link aggregation between an HP Comware switch and an HP ProVision switch. Which settings should the administrator configure?

  A. The link aggregation mode should be set to static on the Comware bridge interface, and the ProVision trunk should be set to lacp.

  B. The link aggregation mode should be set to dynamic on the Comware bridge interface, and the ProVision trunk should be set to trunk.

  C. The link aggregation mode should be set to static on the Comware bridge interface, and the ProVision trunk should be set to trunk.

  D. The link aggregation mode should be set to dynamic on the Comware bridge interface, and the ProVision trunk should be set to lacp.

  Correct Answer: D
