HP HP Certifications HP2-Z37 Questions & Answers

• Question 51:

  Which HP software platform provides centralized network management, monitoring, and configuration of wired and wireless network infrastructure devices, as well as traffic monitoring, user management, and other capabilities?

  A. HP IntelligentManagement Center (IMC)

  B. HP Intelligent Resilient Framework (IRF)

  C. HP Virtual Cloud Networking (VCN)

  D. HP Virtual Connect FlexFabric

  Correct Answer: A

• Question 52:

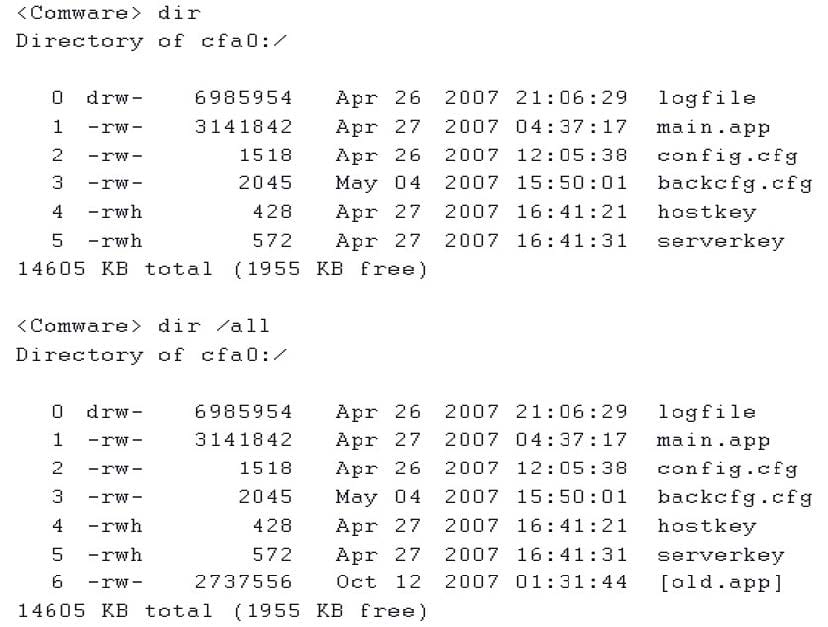

  Refer to the exhibit.



  A network administrator is upgrading the operating system on an HP Comware switch. When copying the new image from a TFTP server to the flash of the switch, the process fails because there is not enough flash to store the new operating system. The new operating system is 3.2MB in size. The administrator then executes the commands shown in the exhibit above.

  Which action should the administrator perform to solve this problem?

  A. Execute the reset recycle-bin command, and perform the TFTP transfer again.

  B. Execute the clear flash command, and perform the TFTP transfer again.

  C. Reformat flash, and perform the TFTP transfer again.

  D. Execute the delete old.app command, and perform the TFTP transfer again.

  Correct Answer: A

• Question 53:

  A company has a network comprised of HP Comware and ProVision switches. A network administrator purchases HP Intelligent Management Center (IMC) to manage the switches in this network. Which step must the administrator perform on the Comware switches but not on the ProVision switches?

  A. Configure SNMP traps.

  B. Configure VTY interface authentication.

  C. Define SNMPv2 community strings or SNMPv3 groups and users.

  D. Configure telnet or SSH.

  Correct Answer: B

• Question 54:

  A network administrator enters this command on an HP ProVision switch with IP routing enabled:

  ip route 0.0.0.0/0 10.1.1.1 metric 10 distance 10

  This is the only IP route to 0.0.0.0/0 on the switch. What is the effect?

  A. The switch uses this route for all traffic that does not match a specific route in its routing table.

  B. The switch uses this route for all traffic unless the traffic matches a route with a lower administrative distance than 10.

  C. The switch uses this route to route all traffic from 10.1.1.1.

  D. The switch uses this route for all traffic unless the traffic matches a route with a lower cost than 10.

  Correct Answer: C

• Question 55:

  An administrator is configuring OSPF on an HP ProVision switch. What is one of the steps that the administrator must take?

  A. The administrator must create an OSPF area before assigning a VLAN interface to that area.

  B. The administrator must set a global router ID before enabling OSPF.

  C. The administrator must set an OSPF router ID before enabling OSPF.

  D. The administrator must assign a VLAN interface its IP address before specifying the corresponding network in an OSPF area.

  Correct Answer: A

• Question 56:

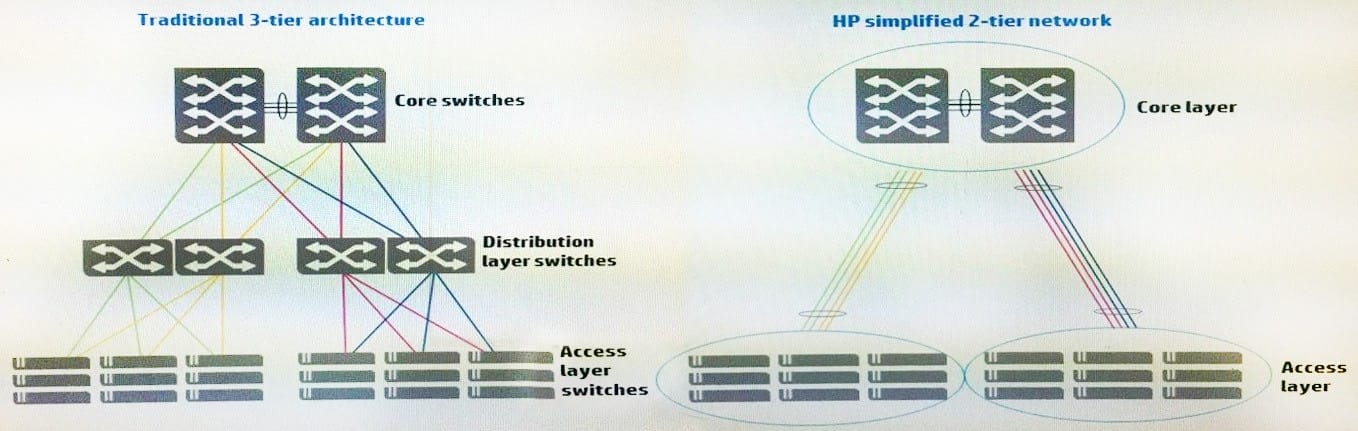

  Refer to the exhibit.



  The topology shown on the left of the exhibit illustrates a traditional three-tier architecture. Which technology allows a company to simplify their network with a two-tier topology as illustrated on the right of the exhibit.

  A. Intelligent Resilient Framework

  B. Software-defined Networking

  C. Multiple Spanning Tree Protocol

  D. Equal Cost Multi-Pathing

  Correct Answer: A

• Question 57:

  A network administrator is configuring a static route. What should the administrator use as the next hop address?

  A. the IP address on the local interface that is used to egress traffic towards its destination

  B. the lowest IP address on the neighboring router in the path towards its destination

  C. the IP address on the connected interface of a neighboring router in the path towards its destination

  D. the IP address of the default gateway in the destination subnet

  Correct Answer: C

• Question 58:

  Refer to the exhibit.



  The switches in the exhibit are all HP ProVision switches that run Multiple Spanning Tree Protocol (MSTP).

  The network administrator wants all of the switch-to-switch links shown in the exhibit to be available for forwarding routed traffic. What should the administrator do to accomplish this?

  A. Configure the switch-to-switch ports as MSTP auto-edge ports.

  B. Configure link-keepalive on the switch-to-switch ports.

  C. Configure BPDU filters on the switch-to-switch ports.

  D. Configure links on a switch as a standard link aggregation.

  Correct Answer: C

• Question 59:

  Which statement correctly defines the management capabilities of an HP MultiService Mobility (MSM) access point (AP)?

  A. The AP only supports controlled mode.

  B. The AP operates in autonomous mode by default, but can be changed to controlled mode.

  C. The AP operates in controlled mode by default, but can be changed to autonomous mode.

  D. The AP only supports autonomous mode.

  Correct Answer: C

• Question 60:

  What is one feature that MSTP has that RSTP does not have?

  A. load-sharing on redundant links

  B. alternate root ports

  C. multiple designated ports per segment

  D. one set of BPDUs per VLAN

  Correct Answer: A
