• Question 91:

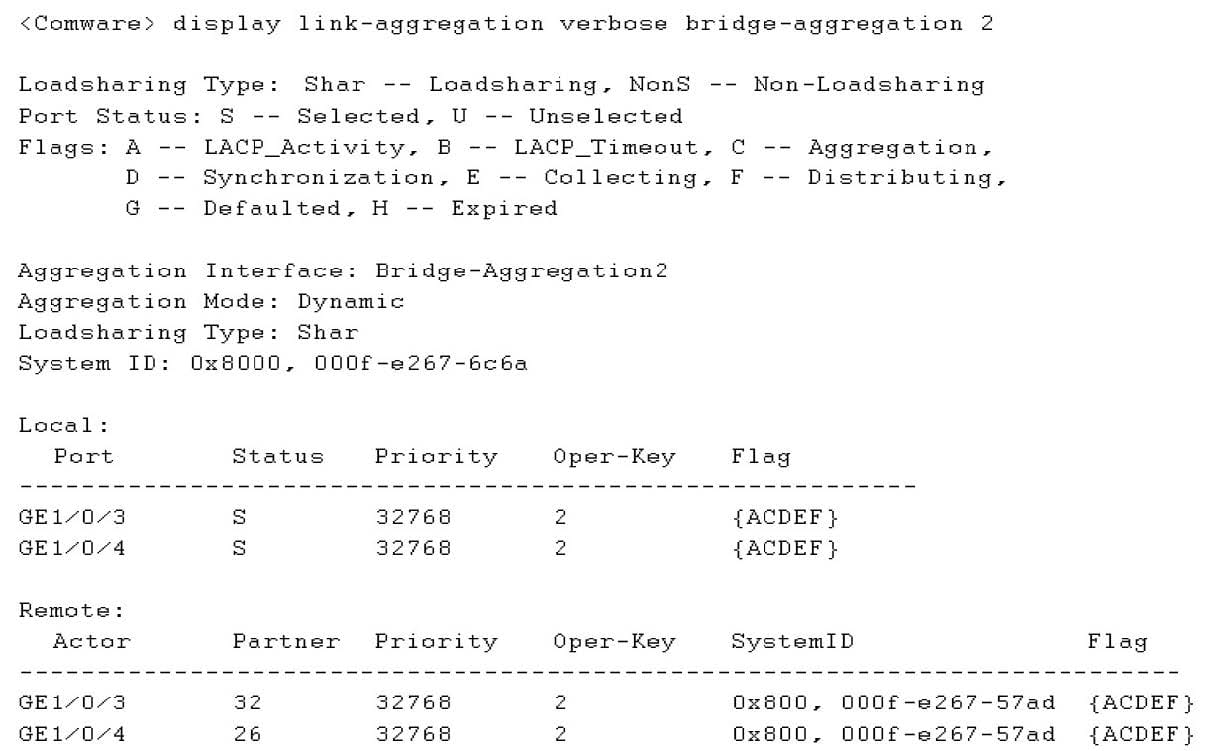

  Refer to the Exhibit.



  Examine the output from the Comware command shown in the exhibit. Based on the flag of ACDEF, what is the status of the aggregated link?

  A. Static LACP link aggregation is configured, and the aggregated link is operational with load sharing not being performed.

  B. Static link aggregation is configured, and the aggregated link is operational with load sharing being performed.

  C. Static LACP link aggregation is configured, and the aggregated link is operational with load sharing being performed.

  D. Static link aggregation is configured, and the aggregated link is operational with load sharing not being performed.

  Correct Answer: B

• Question 92:

  Refer to the exhibit.



  What can a network administrator determine from the output in the exhibit?

  A. The switch will boot the primary software on its next boot.

  B. The switch has no software stored in the secondary slot.

  C. The switch is using the config file in the primary slot for its startup-config.

  D. The switch booted the primary software on its previous boot.

  Correct Answer: D

• Question 93:

  What is true about the community string used for SNMPv1 and SNMPv2c?

  A. The community string encrypts the SNMP message, but does not hash it, providing for data privacy.

  B. The community string hashes the SNMP message, but does not encrypt it, providing for data integrity.

  C. The community string encrypts and hashes the SNMP message, providing for data integrity and privacy.

  D. The community string is like a password transmitted in cleartext, providing no data integrity or privacy.

  Correct Answer: D

• Question 94:

  A company wants to implement HP Intelligent Resilient Framework (IRF) at the access layer. Which switches could they use?

  A. two HP 5500 HI Series switches

  B. one HP 5412R zl2 Series switch and one HP 5800 Series switch

  C. one HP 5800 Series switch and one HP 5500 Series switch

  D. two HP 5406R zl2 Series switches

  Correct Answer: A

• Question 95:

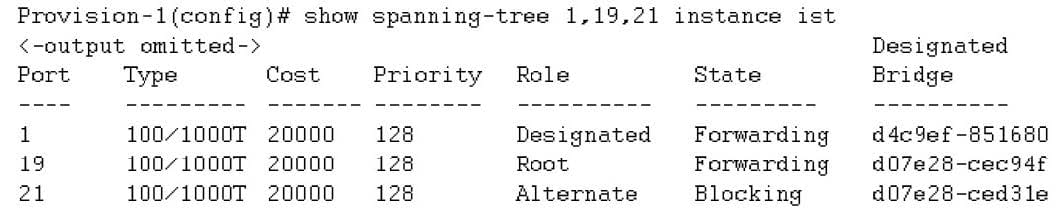

  Refer to the exhibit.



  This switch currently assigns all VLANs to Multiple Spanning Tree Protocol (MSTP) instance 0 or the Internal Spanning Tree (IST). Which statement correctly describes interface 21?

  A. The interface is down at Layer 2; it is not available for sending or receiving any traffic.

  B. The interface is an edge port but has received Bridge Protocol Data Units (BPDUs), so it is disabled.

  C. The interface does not forward or accept data traffic, but it is ready to start forwarding if interface 19 fails.

  D. The interface does not support spanning tree; it is possible that it will introduce a loop in the network.

  Correct Answer: C

• Question 96:

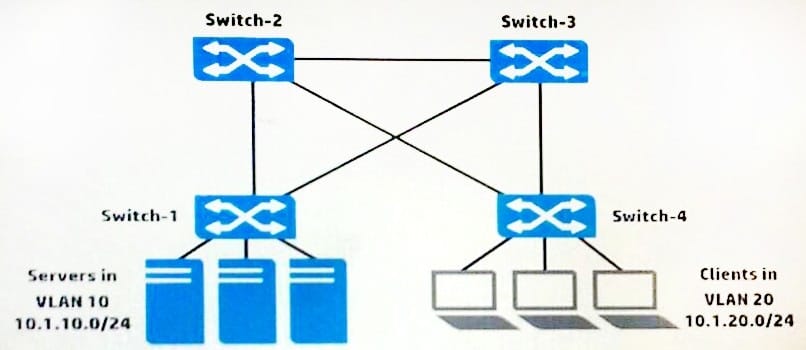

  Refer to the exhibit.



  The switches in the exhibit are all HP Comware switches that run Multiple Spanning Tree Protocol (MSTP).

  The network administrator wants to ensure that each switch-to-switch link is in its own subnet. The administrator also wants to make sure that all of the links are available for routing during normal operation. How should the administrator configure the physical switch-to-switch interfaces to accomplish these goals?

  A. Configure them as trunk ports that permit VLANs 10 and 20.

  B. Configure them as any type of port, and make sure spanning tree is enabled on them.

  C. Configure them as route-mode ports.

  D. Configure them as hybrid ports that carry VLAN 10 and 20 as untagged.

  Correct Answer: A

• Question 97:

  A network administrator has copied new software to an HP ProVision switch and placed this software in the secondary flash location. The switch is currently booting from the primary flash location. The administrator wants the switch to start using the new software.

  What should the administrator do to accomplish this?

  A. Execute the command to boot the system from the secondary flash.

  B. Reboot the switch, which automatically causes the switch to use the newer software.

  C. Copy the secondary software to the primary software slot.

  D. Rename the secondary software as the primary software.

  Correct Answer: A

• Question 98:

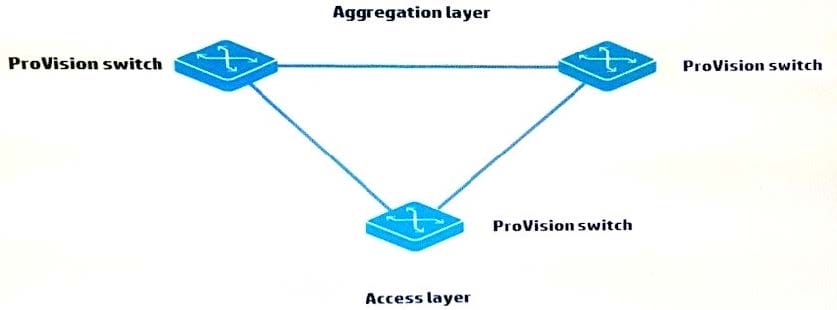

  Refer to the exhibit.



  Based on the topology shown in the exhibit, which symptom does a network administrator see if the HP switches are in their factory default states?

  A. Mislearned MAC addresses

  B. Unicast storms

  C. Multiple ARP requests

  D. Layer 3 loop

  Correct Answer: C

• Question 99:

  How does a switch treat a link aggregation?

  A. The switch treats each interface within the interface as a separate entity for MAC address learning; it also assigns an individual spanning tree port role to each interface.

  B. The switch treats the link aggregation as one logical link for spanning tree, but it learns MAC addresses separately on each individual interface within the aggregation.

  C. The switch treats the link aggregation as one logical link. It assigns one spanning tree port role to the link aggregation, and it learns MAC addresses on the aggregation.

  D. The switch treats the link aggregation as one logical link for MAC learning, but it assigns an individual spanning tree port role to each interface within the aggregation.

  Correct Answer: C

• Question 100:

  A network administrator needs to restrict access to the console port of an HPE Comware switch. When a user connects to the console port and opens a terminal session, the switch should prompt the user for a password. How should the administrator configure user interfaces on the Comware switch?

  A. Set the authentication mode to password on the VTY 0 15 interfaces and then set the password on the VTY 0 15 interfaces.

  B. Set the authentication mode to scheme on the VTY 0 15 interfaces and then set the password globally.

  C. Set the authentication mode to password on the AUX 0 interface and then set the password on the AUX 0 interface.

  D. Set the authentication mode to scheme on the AUX 0 interface and then set the password globally.

  Correct Answer: C
