HP HP Certifications HP2-Z37 Questions & Answers

• Question 11:

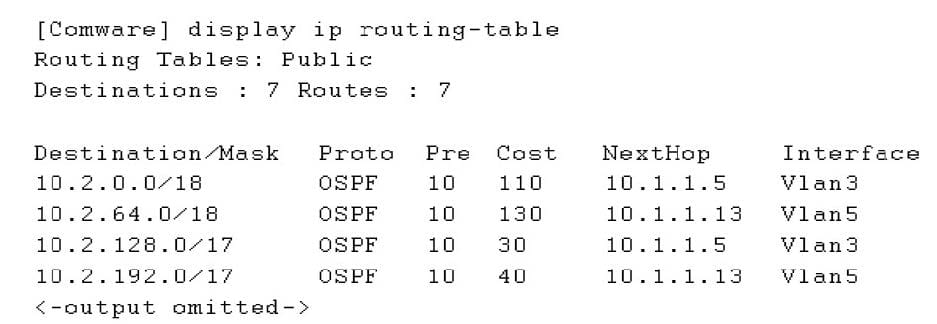

  Refer to the exhibit.



  The exhibit shows partial output of the HP Comware display ip routing-table command. Note the Pre or preference column.

  On an HP ProVision switch, what is the corresponding term used for the Pre column in the Comware output shown in the exhibit?

  A. protocol ranking

  B. administrative distance

  C. cost

  D. metric

  Correct Answer: B

• Question 12:

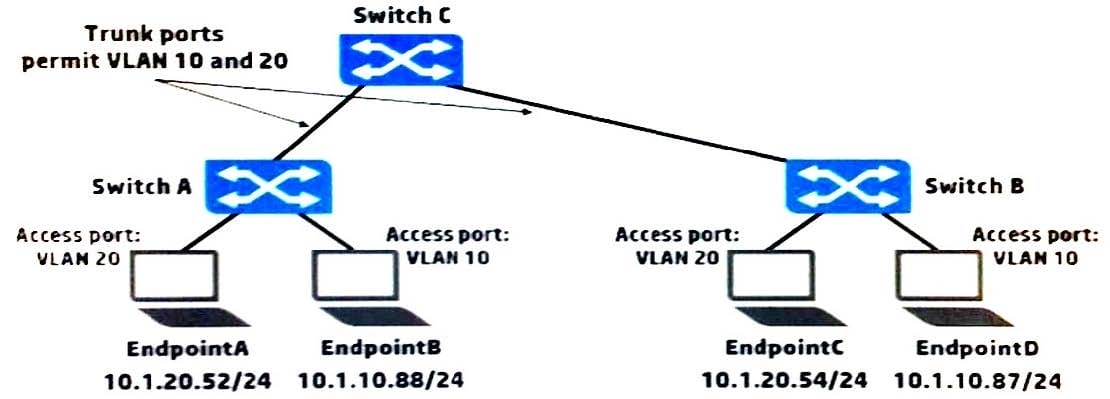

  Refer to the exhibit.



  Which endpoint or endpoints receive broadcast ARP requests sent by EndpointA?

  A. EndpointB, EndpointC, and EndpointD

  B. EndpointB only

  C. EendpointB and EndpointC only

  D. EndpointC only

  Correct Answer: D

• Question 13:

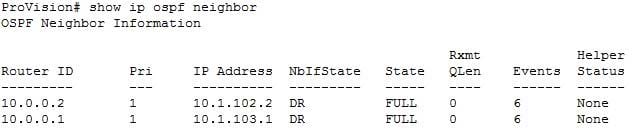

  Refer to the exhibit.



  Based on the output shown in this exhibit, which statement is true about the 10.0.0.2 neighbor?

  A. The neighbor is communicating with this switch, but it cannot hold any more routes in its database.

  B. The neighbor is communicating with this switch, and they have exchanged all topology information.

  C. The neighbor has mismatched settings and cannot exchange information with this switch.

  D. The neighbor is rejecting communications because it already has its maximum number of neighbors.

  Correct Answer: B

• Question 14:

  An endpoint device requests an address by using DHCP. What is the first message the client sends to initiate this process?

  A. DHCPREQUEST

  B. DHCPQUERY

  C. DHCPDISCOVER

  D. DHCPOFFER

  Correct Answer: C

• Question 15:

  Refer to the exhibit.



  What does the output indicate about GE1/0/1?

  A. The interface accepts untagged traffic, which it assigns to VLAN 1. It drops traffic that is tagged for VLANs 1, 10, and 20.

  B. The interface accepts untagged traffic, which it assigns to VLAN 1. It also accepts traffic that is tagged for VLANs 10 and 20.

  C. The interface accepts untagged traffic, which it assigns to VLAN 1. It accepts traffic that is tagged for any VLAN between 10 and 20.

  D. The interface does not accept untagged traffic. It accepts traffic that is tagged for VLANs 1, 10, and 20.

  Correct Answer: B

• Question 16:

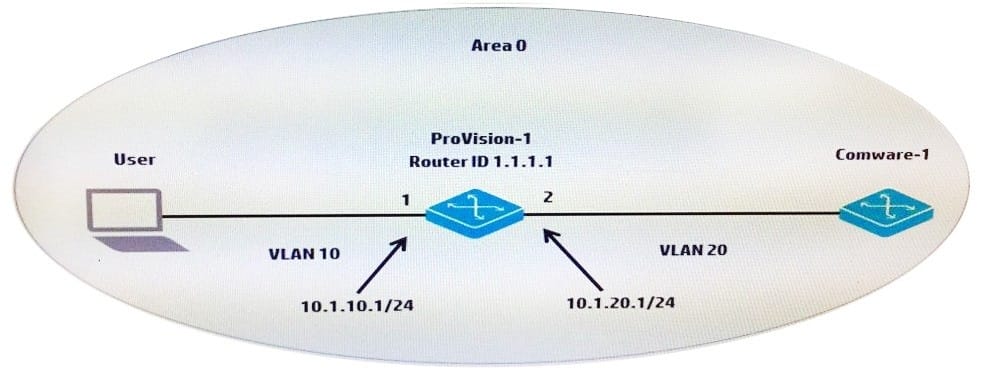

  Refer to the exhibit.



  A network administrator sets up OSPF in part of the network topology shown in the exhibit. The Comware-1 switch is already configured. The administrator needs to configure ProVision-1 so that:

  -OSPF includes VLANs 10 and 20 in the routing process.

  -

  The router ID of 1.1.1.1 is assigned to the switch.

  -

  The ProVision-1 switch can successfully build a neighbor adjacency with the Comware-1 switch. Which configuration should the administrator apply to the ProVision-1 switch to meet these requirements?

  A.

  router-id 1.1.1.1router ospf area 0vlan 10ip ospf area 0vlan 20ip ospf area 0

  B.

  router ospf router-id 1.1.1.1area 0 vlan 10area 0 vlan 20enable

  C.

  router ospfrouter-id 1.1.1.1area 0 vlan 10area 0 vlan 20

  D.

  ip router-id 1.1.1.1router ospfarea 0enablevlan 10 ip ospf area 0vlan 20 ip ospf area 0

  Correct Answer: D

• Question 17:

  A customer has an HP ProVision switch capable of Layer 3 forwarding: however, Layer 3 forwarding is disabled. The switch has an IP address in the management VLAN, where the default gateway is 10.1.1.1, which ProVision command should the network administrator use so the ProVision switch can access the Intelligent Management Center (IMC) server in a different VLAN?

  A. IP default-gateway 10.1.1.1

  B. IP route 0.0.0.0 255.255.255.255 10.1.1.1

  C. Default-route 10.1.1.1

  D. IP route 0.0.0.0.0.0.0.0 10.1.1.1

  Correct Answer: D

  A default route is a special static route that applies to all traffic. Typically, when the router receives a packet that it does not know how to forward, it drops it. A default route allows the router to forward all such packets toward the destination

  most likely to be able to route them.

  To configure a default route, enter a route to a destination address of all zeros with an all- zero subnet mask. The all-zero subnet mask indicates to the router that a packet's IP address does not have to match any of the destination address

  bits in order for the route to be valid. Because the router always matches traffic to the most specific route, it will only use the default route for traffic that would otherwise be dropped. To configure the default route, move to the global

  configuration mode context and enter this command:

  Syntax: ip route 0.0.0.0 [0.0.0.0 | /0] []

  The ProCurve Secure Router allows you to enter the default route in CIDR notation.

• Question 18:

  Which settings enable a network administrator to use terminal emulation software to interface with an HP Comware switch's auxiliary port?

  A. 9600 bps, 7 data bits, 1 stop bit, no parity, flow control

  B. 14,200 bps, 8 data bits, 1 stop bit, parity, flow control

  C. 9600 bps, 8 data bits, 1 stop bit, no parity, no flow control

  D. 9600 bps, 8 data bits, 1 stop bit, parity, flow control

  Correct Answer: C

• Question 19:

  A network administrator plans to execute show commands as well as make conjuration changes. Which HP ProVision privilege role must be assigned to an account for the administrator to do this?

  A. Operator

  B. Administrator

  C. Superuser

  D. Manager

  Correct Answer: D

• Question 20:

  On an HP Comware switch, which view must an administrator access in order to execute the debug command?

  A. Manager

  B. Operator

  C. System

  D. User

  Correct Answer: D
