HP HP Certifications HP2-Z37 Questions & Answers

• Question 41:

  A network administrator wants to join a switch to an Intelligent Resilient Framework (IRF) virtual device. The administrator changes the switch member ID from 1 to 2. What must the administrator do before configuring the IRF port on this switch?

  A. Physically connect the switch to the IRF master device.

  B. Reboot the switch.

  C. Disable IP routing.

  D. Enable the physical interfaces that will be assigned to the IRF port.

  Correct Answer: D

• Question 42:

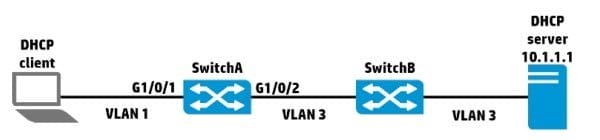

  Refer to the Exhibit.



  A network administrator needs to configure DHCP on SwitchA. Assume that SwitchA is an HPE Comware switch and is using the default settings for DHCP. The administrator configures the following information:



  The administrator then has the DHCP client try to acquire addressing information, but the process fails. What should the administrator do to solve this problem?

  A. Execute the routing command on SwitchA.

  B. Execute the dhcp enable command on SwitchA.

  C. Configure DHCP relay on SwitchB.

  D. Enable DHCP Snooping on SwitchA.

  Correct Answer: B

• Question 43:

  What is the purpose of a management VLAN on an HP Provision switch?

  A. To prevent IP addresses from being configured on any VLANs other than the management VLAN

  B. To provide an administrative-only marker, label, or alias for the VLAN where IMC is installed

  C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface

  D. To limit remote access connections by specifying the IP addresses that can establish connections

  Correct Answer: C

• Question 44:

  When adding a new member to an existing IRF domain, which of the following must you perform first?

  A. Define the IRF priority.

  B. Create the IRF logical port.

  C. Define the IRF domain name.

  D. Define the IRF member number.

  Correct Answer: D

• Question 45:

  A company needs a two-member Intelligent Resilient Framework (IRF) virtual switch. The network administrator is configuring IRF member 2 that will connect to port 1/1 on IRF member 1. What is the correct IRF port ID for member 2?

  A. 1/2

  B. 2/2

  C. 1/1

  D. 2/1

  Correct Answer: B

• Question 46:

  A company has a policy that requires all administrators to use secure access for in-band management. The administrator sets up SSH access on the HP Comware switches in the network to meet this requirement. The administrator enables SSH, and creates SSH keys and administrator accounts on the Comware switches. Every time the administrator attempts to log in to the switches the SSH access is denied. The VTYs are configured as: user-interface vty 0 15 authentication-mode password user privilege level 3 quit What is the correct authentication mode the administrator must configure on the VTYs of the Comware switch so the switch prompts for usernames and passwords?

  A. username

  B. aaa

  C. scheme

  D. local

  Correct Answer: C

• Question 47:

  Which method of link aggregation do both HP ProVision and Comware switches support?

  A. Static LACP

  B. Fast Ethernet

  C. Dynamic LACP

  D. Distributed Trunking

  Correct Answer: A

• Question 48:

  A customer wants to implement multiple links between a server and a single HP Comware switch in order to increase the amount of bandwidth for more throughput. Which feature should the network administrator implement to accomplish this?

  A. MSTP

  B. IRF

  C. link aggregation

  D. MIMO

  Correct Answer: B

• Question 49:

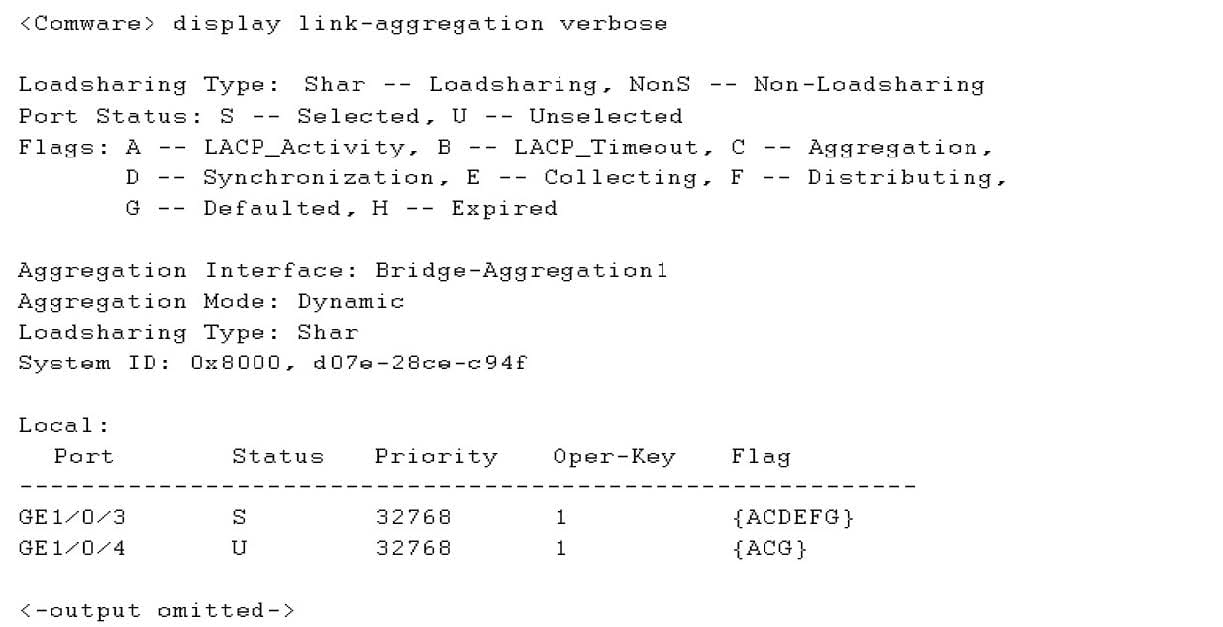

  Refer to the exhibit.



  A network administrator has implemented link aggregation on an HP Comware switch using LACP. The two ports are functioning at the data link layer between the Comware switch and its neighboring switch. The administrator executes the display link-aggregation verbose command and notices the flags shown in the exhibit.

  What does this indicate?

  A. The links are up, but both links are blocked by LACP.

  B. The links are up, but are blocked because they are using duplicate operational keys.

  C. The links are up, but LACP negotiation has failed on them.

  D. The links are up, but LACP is not configured on this link aggregation.

  Correct Answer: D

• Question 50:

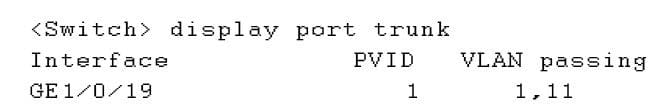

  Refer to the exhibit.



  The network administrator has configured this port to permit all VLANs. The output in the exhibit indicates that the port is only passing VLANs 1 and 11. The administrator wants the port to pass VLAN 12 as well. What should the administrator do to accomplish this?

  A. Enable IP routing.

  B. Add VLAN 12 to the switch.

  C. Change the port link-type to hybrid.

  D. Change the port link-type to access.

  Correct Answer: A
