HP HP2-Z37 Online Practice Questions and Exam Preparation

HP HP2-Z37 Online Questions & Answers

• Question 101:

  Refer to the exhibit.

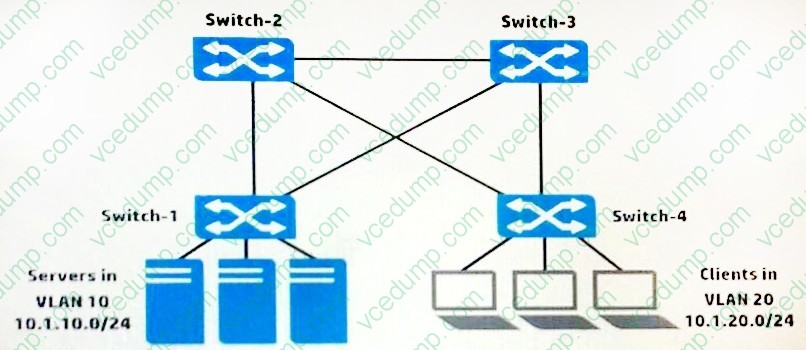

  The switches in the exhibit are all HP Comware switches that run Multiple Spanning Tree Protocol (MSTP).

  The network administrator wants to ensure that each switch-to-switch link is in its own subnet. The administrator also wants to make sure that all of the links are available for routing during normal operation. How should the administrator configure the physical switch-to-switch interfaces to accomplish these goals?

  A. Configure them as trunk ports that permit VLANs 10 and 20.
  B. Configure them as any type of port, and make sure spanning tree is enabled on them.
  C. Configure them as route-mode ports.
  D. Configure them as hybrid ports that carry VLAN 10 and 20 as untagged.
  A. Configure them as trunk ports that permit VLANs 10 and 20.

• Question 102:

  Refer to the exhibit.

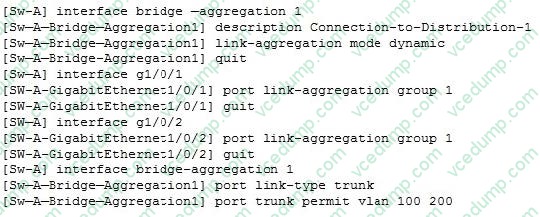

  Exhibit: HP Comware switch configuration



  Based on the exhibit output, which type of link aggregation is this?

  A. dynamic trunk protocol
  B. static trunking
  C. dynamic port group
  D. static LACP
  C. dynamic port group

• Question 103:

  What is one difference between Network Segment-based discovery and ARP-based discovery on HP Intelligent Management Center (IMC)?

  A. With Network Segment-based discovery, IMC can discover multiple devices. With ARP- based discovery, IMC can only discover one device; the administrator must re-run ARP- based discovery to discover a second device.
  B. With Network Segment-based discovery, network device login settings must match login settings on IMC. With ARP-based discovery, only ARP settings must match.
  C. With Network Segment-based discovery, network device SNMP settings must match SNMP settings on IMC. With ARP-based discovery, only ARP settings must match.
  D. With Network Segment-based discovery, the administrator enters a range of IP addresses to discover. With ARP-based discovery, the administrator enters one seed IP address, and IMC dynamically learns more IP addresses to discover.
  D. With Network Segment-based discovery, the administrator enters a range of IP addresses to discover. With ARP-based discovery, the administrator enters one seed IP address, and IMC dynamically learns more IP addresses to discover.

• Question 104:

  An HP switch learns identical valid routes with different protocols. How does the switch choose which route to add to its IP routing table?

  A. It adds the route with the highest administrative distance, or route preference.
  B. It adds the route with the highest cost.
  C. It adds the route with the lowest cost.
  D. It adds the route with the lowest administrative distance, or route preference.
  D. It adds the route with the lowest administrative distance, or route preference.

• Question 105:

  What is one feature that MSTP has that RSTP does not have?

  A. load-sharing on redundant links
  B. alternate root ports
  C. multiple designated ports per segment
  D. one set of BPDUs per VLAN
  A. load-sharing on redundant links

• Question 106:

  Refer to the exhibit.

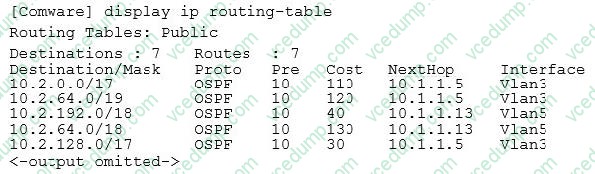

  Examine the partial HP switch output shown in the exhibit. Based on this output, if the switch receives a packet with a destination IP address of 10.2.90.87, which entry in the routing table would the switch use to forward the packet?

  A. 10.2.128.0/17
  B. 10.2.0.0/17
  C. 10.2.64.0/19
  D. 10.2.64.0/18
  C. 10.2.64.0/19

• Question 107:

  Refer to the exhibit.

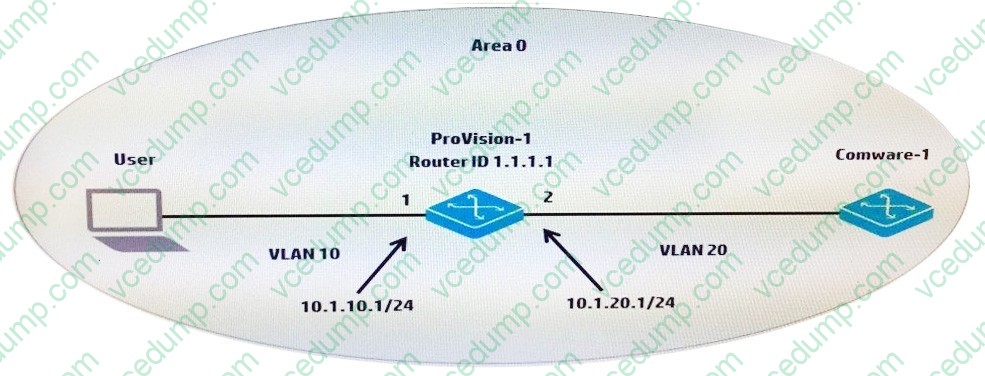

  A network administrator sets up OSPF in part of the network topology shown in the exhibit. The Comware-1 switch is already configured. The administrator needs to configure ProVision-1 so that:

  -OSPF includes VLANs 10 and 20 in the routing process.

  -The router ID of 1.1.1.1 is assigned to the switch.

  -

  The ProVision-1 switch can successfully build a neighbor adjacency with the Comware-1 switch. Which configuration should the administrator apply to the ProVision-1 switch to meet these requirements?

  A. router-id 1.1.1.1router ospf area 0vlan 10ip ospf area 0vlan 20ip ospf area 0
  B. router ospf router-id 1.1.1.1area 0 vlan 10area 0 vlan 20enable
  C. router ospfrouter-id 1.1.1.1area 0 vlan 10area 0 vlan 20
  D. ip router-id 1.1.1.1router ospfarea 0enablevlan 10 ip ospf area 0vlan 20 ip ospf area 0
  D. ip router-id 1.1.1.1router ospfarea 0enablevlan 10 ip ospf area 0vlan 20 ip ospf area 0

• Question 108:

  Which statement is true about the default configuration on an HP ProVision switch?

  A. Spanning tree is disabled.
  B. LACP is used when a BAGG interface is created.
  C. IRF is enabled.
  D. RSTP is the default spanning tree mode.
  A. Spanning tree is disabled.

• Question 109:

  An HP Provision switch has port A1 connected to port g1/0/1 of an HP Comware switch. The ProVision port has the following configuration: vlan 1 untag A1 vlan 10 tag A1 vlan 20 tag A1 Which Comware configuration will allow the three VLANs to successfully pass traffic between the two switches?

  A. interface g1/0/1port link-type trunkport trunk permit vlan 1 10 20
  B. interface g1/0/1 port trunk encapsulation dot1qport trunk native vlan 1port trunk permit vlan 1 10 20
  C. interface g1/0/1 port trunkport trunkpermit auto-vlan
  D. interface g1/0/1 port trunkport trunkpermit auto-vlan
  A. interface g1/0/1port link-type trunkport trunk permit vlan 1 10 20

• Question 110:

  Refer to the exhibit.

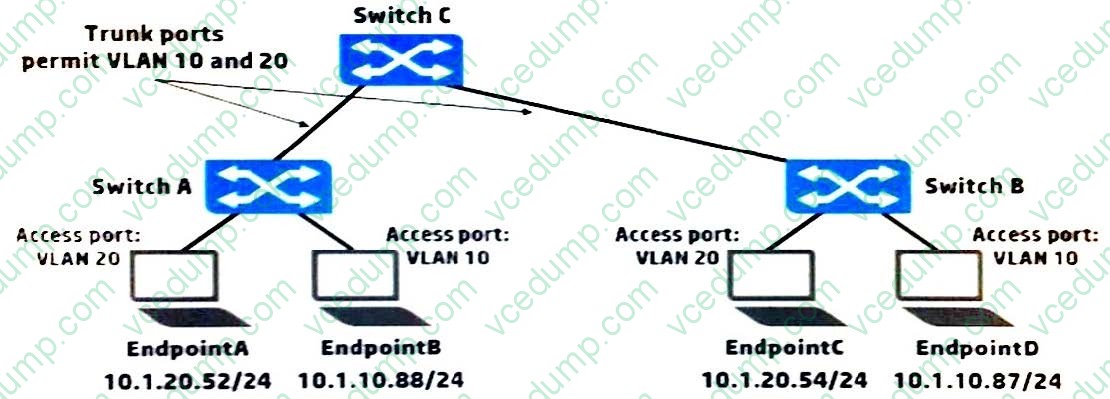

  Which endpoint or endpoints receive broadcast ARP requests sent by EndpointA?

  A. EndpointB, EndpointC, and EndpointD
  B. EndpointB only
  C. EendpointB and EndpointC only
  D. EndpointC only
  D. EndpointC only
