HP HP Certifications HP2-Z37 Questions & Answers

• Question 61:

  Where is priority information stored in an Ethernet frame?

  A. 802.1Q VLAN tag

  B. IP Precedence field

  C. DSCP field

  D. TOS tag

  Correct Answer: A

• Question 62:

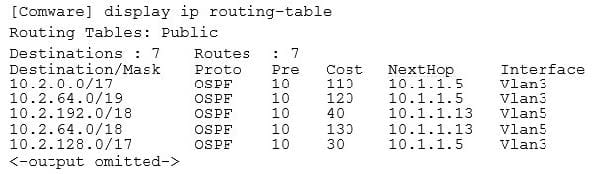

  Refer to the exhibit.



  Examine the partial HP switch output shown in the exhibit. Based on this output, if the switch receives a packet with a destination IP address of 10.2.90.87, which entry in the routing table would the switch use to forward the packet?

  A. 10.2.128.0/17

  B. 10.2.0.0/17

  C. 10.2.64.0/19

  D. 10.2.64.0/18

  Correct Answer: C

• Question 63:

  What is a valid reason to choose an 802.11a wireless implementation?

  A. It supports a large range (distance) from the AP at a given data speed

  B. It has fewer available channels than 802.11b/g, enabling easier deployment

  C. It has transmission speed higher than 802.11n

  D. It will not interface with an 802.11b/g installation.

  Correct Answer: D

• Question 64:

  What does the traceroute command identify on an HP ProVision switch?

  A. each Layer 3 device between the switch and a destination

  B. the path to each router connected to the switch

  C. debug output tracing entries to the routing table

  D. each physical device between the switch and a destination

  Correct Answer: B

• Question 65:

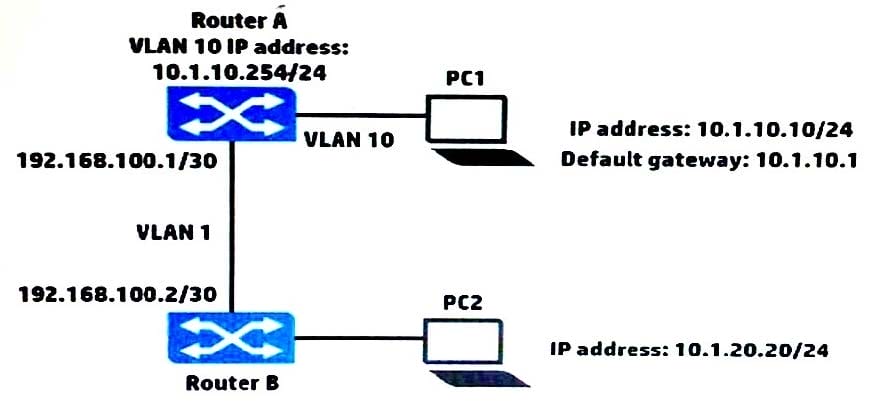

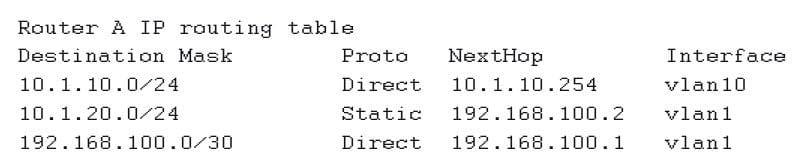

  Refer to the exhibits.

  Exhibit 1



  Exhibit 2



  PC1 cannot reach PC2. Based on the exhibits, what could be causing this error?

  A. PC1 has the wrong IP address for its default gateway setting.

  B. Router A has a direct route, instead of a static route, to 10.1.10.0/24.

  C. The next hop address for the 10.1.20.0/24 route is incorrect.

  D. Router A has an invalid subnet mask for the VLAN 1 subnet.

  Correct Answer: B

• Question 66:

  Which methods can a network administrator use to upgrade the operating system of an HP ProVision switch? (Select two.)

  A. USB

  B. FTP

  C. SCP

  D. SFTP

  Correct Answer: AD

• Question 67:

  A network administrator wants an HP switch to use an IP address that is always up for its Open Shortest Path First (OSPF) router ID. Which address meets this requirement?

  A. An IP address configured as the global management address

  B. An IP address on the interface for the default VLAN, which is typically VLAN

  C. An IP address on the VLAN 1 interface

  D. An IP address on a loopback interface

  Correct Answer: D

• Question 68:

  A customer is implementing a network using HP ProVision switches. Which default setting applies to the ProVision switches?

  A. All ports are disabled.

  B. Routing is enabled.

  C. Telnet is enabled.

  D. A static IP address is assigned to VLAN 1.

  Correct Answer: C

• Question 69:

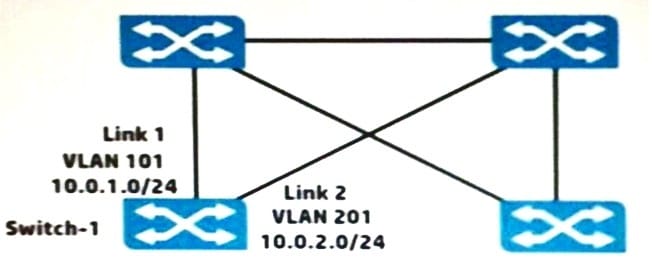

  Refer to the exhibit.



  Switch-1 is an HP ProVision switch.

  A network administrator wants Switch-1 to run Open Shortest Path First (OSPF) and create neighbor relationship on Links 1 and 2. What should the administrator do to accomplish this?

  A. Access the VLAN context for the VLANs assigned to Links 1 and 2, and enable OSPF.

  B. Access the global configuration context, and create OSPF routes to 10.0.1.0/24 and 10.0.2.0/24.

  C. Access the physical interface context for the Link 1 and 2 ports, and enable OSPF.

  D. Access the OSPF area 0 context and specify the networks on Links 1 and 2 (10.0.1.0 0.0.0.255 and 10.0.2.0 0.0.0.255).

  Correct Answer: B

• Question 70:

  What is one reason to access the extended boot menu on an HP Cornware switch?

  A. To access the switch CLI when you have forgotten the password

  B. To set up the switch to be managed by HP Intelligent Management Center (IMC).

  C. To configure the switch initial IP address settings

  D. To configure the switch to implement Intelligent Resilient Framework (IRF)

  Correct Answer: A
