HP HP Certifications HP2-Z37 Questions & Answers

• Question 81:

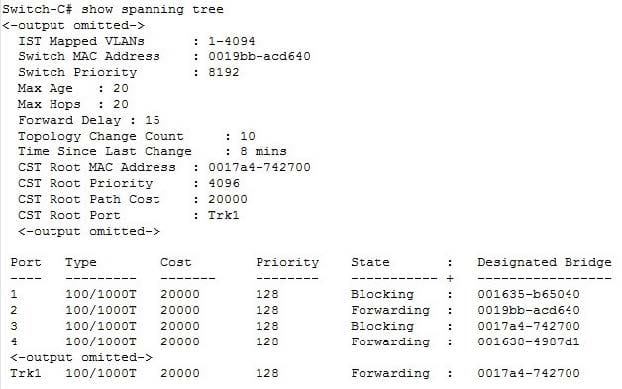

  Refer to the exhibit.



  Based on the output in the exhibit, which statement is correct about the spanning tree protocol running in this network?

  A. Switch- is a root switch.

  B. Port 2 is a designated port.

  C. Port 3 is a root port.

  D. Port 4 is a designated port.

  Correct Answer: B

• Question 82:

  What is one difference between Network Segment-based discovery and ARP-based discovery on HP Intelligent Management Center (IMC)?

  A. With Network Segment-based discovery, network device SNMP settings must match SNMP settings on IMC. With ARP-based discovery, only ARP settings must match.

  B. With Network Segment-based discovery, IMC can discover multiple devices. With ARP- based discovery, IMC can only discover one device; the administrator must re-run ARP- based discovery to discover a second device.

  C. With Network Segment-based discovery, the administrator enters a range of IP addresses to discover. With ARP-based discovery, the administrator enters one seed IP address, and IMC dynamically learns more IP addresses to discover.

  D. With Network Segment-based discovery, IMC can discover Layer 3 devices. With ARP- based discovery, IMC can discover only Layer 2 devices.

  Correct Answer: C

• Question 83:

  Which term refers to aggregated links on HP ProVision switches?

  A. smart linking

  B. meshing

  C. EtherChannels

  D. trunking

  Correct Answer: D

• Question 84:

  Refer to the exhibits.

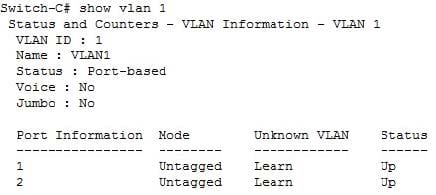

  Exhibit 1

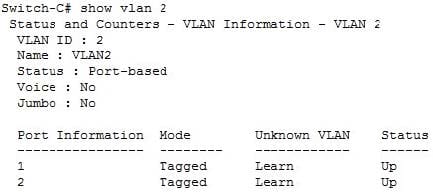

  Exhibit 2



  A network administrator executes the show vlan commands and sees the output shown in the exhibits. How must the administrator configure a connected port on an HP Comware switch?

  A. as a trunk port

  B. as an access port

  C. as an untagged port

  D. as a mixed port

  Correct Answer: A

• Question 85:

  Which credential is required to validate SNMPv2c write requests?

  A. Community string

  B. Scheme

  C. MD5 authkey

  D. AAA authentication

  Correct Answer: A

• Question 86:

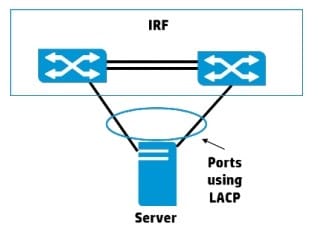

  Refer to Exhibit.



  The server shown in the exhibit requires redundant links, and The link aggregation should use LACP. What should the administrator configure on the 1RF virtual switch?

  A. a bridge aggregation interface that uses static link aggregation mode

  B. a bridge aggregation interface that uses dynamic link aggregation mode

  C. two interfaces that are set to trunk for the port-link type

  D. two interfaces that are set to hybrid for the port-link type

  Correct Answer: B

• Question 87:

  A network administrator enters this command on an HP Comware switch:

  save

  In interactive mode, the administrator is prompted to save to a file named config.cfg and confirms the save. What is the effect of these actions?

  A. The current configuration is saved to config.cfg on a TFTP server but is not used for the startup-config.

  B. The startup-config, rather than the correct configuration, is saved to config.cfg on a TFTP server.

  C. The current configuration is saved to config.cfg in the flash but is not used for the startup-config.

  D. The current configuration is saved to config.cfg in the flash and is used for the startup- config.

  Correct Answer: D

• Question 88:

  When configuring Multiple Spanning Tree Protocol (MSTP), how should VLANs be separated to perform load balancing?

  A. placed into separate instances

  B. configured with different priority values

  C. never configured with more than one VLAN per instance

  D. placed into separate regions

  Correct Answer: A

• Question 89:

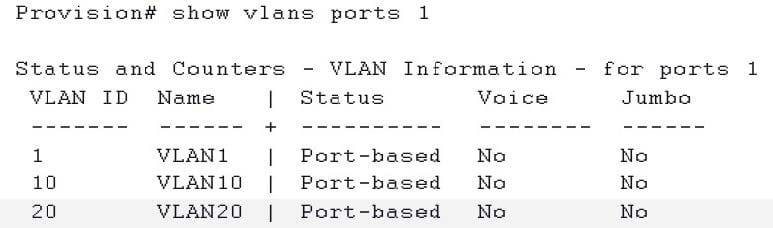

  Refer to the exhibit.



  A network administrator enters the command shown in the exhibit to check the VLANs on an HP ProVision switch interface. The administrator wants to discover which VLANs are tagged and untagged on the port. What can the administrator do to accomplish this?

  A. Enter the show vlans ports 1 command but add detail at the end of the command.

  B. View all VLANs on the switch by entering the show vlans command without a VLAN ID.

  C. View the physical interface by entering the show interface brief command.

  D. Enter the show interfaces all command.

  Correct Answer: A

• Question 90:

  A network administrator executes these commands on an HP ProVision switch: ProVision(config)# ip route 10.1.100.0/24 10.1.1.1 ProVision(config)# ip route 10.1.200.0/24 10.1.1.1 The administrator attempts to ping a device in the 10.1.100.0/24 network from a client attached to the switch and is unable to ping it. Assume there are no firewalls and all other settings are correct. What must the administrator configure on

  the ProVision switch to get a response?

  A. ProVision(config)# ip routing

  B. ProVision(config)# spanning-tree disable

  C. ProVision(config)# routing enable

  D. ProVision(config)# routingProVision(config-router)# ip enable

  Correct Answer: A
