Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 71:

  Refer to the output.

  feature otv otv site-vlan 2 otv site-identifier 256 ! interface ethernet 2/0 ip address 192.0.2.1/24 ip igmp version 3 ! interface ethernet 2/1 ip address 192.0.2.2/24 ip igmp version 3 ! interface Overlay1 otv control-group 239.1.1.1 otv join-interface ethernet 2/0 otv extend-vlan 3-100 ! interface Overlay2 otv control-group 239.1.1.1 otv join-interface ethernet 2/1 otv extend-vlan 101-115 Which command best represents where the control plane configurations are applied?

  A. switch(config-if-overlay)# otv isis hello-interval 30
  B. switch(config-if)# otv isis hello-interval 30
  C. switch(config-vlan)# otv isis hello-interval 30
  D. switch(config)# otv isis hello-interval 30
  A. switch(config-if-overlay)# otv isis hello-interval 30

• Question 72:

  You are performing a software upgrade and want to see the progress. Which command do you run?

  A. show install all status
  B. show log | include error
  C. show system internal log install history
  D. show system internal log install details
  A. show install all status

• Question 73:

  A customer calls in a trouble ticket complaining of unacceptable read I/O latency on a Cisco UCS C210 M2 server with an LSI MegaRAID 9260-8i with an 8-disk RAID-10 virtual disk. As you validate the RAID controller configuration, which of these configured items impacts read performance at the controller level?

  A. all disks are 146GB 6 Gb SAS 15K RPM SFF
  B. read ahead cache is enabled
  C. BGI rate = 0
  D. strip size = 256k
  E. no hot spare
  D. strip size = 256k

• Question 74:

  Which statement about port channels is true?

  A. All member ports should be in up state for the port channel to be up
  B. All member ports in a port channel need not use the same speed and duplex
  C. It is recommended to make changes in the individual member ports that are part of the port channel
  D. Each port can be in only one port channel
  D. Each port can be in only one port channel

• Question 75:

  Which statement would explain why the overlay interface on an OTV edge device is not in the up state?

  A. The site identifiers are identical within a multihomed site.
  B. Multicast groups are not mapped to a range of SSM addresses to carry the multicast traffic.
  C. An adjacency server is not configured for connectivity over a multicast transport.
  D. The OTV IS-IS metrics do not match across all adjacent OTV edge devices.
  B. Multicast groups are not mapped to a range of SSM addresses to carry the multicast traffic.

• Question 76:

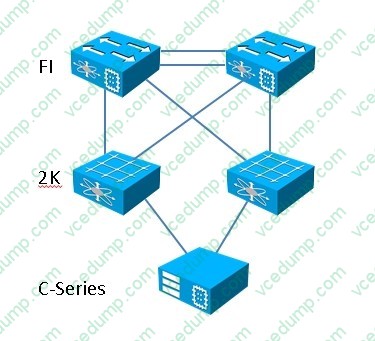

  Which of these is a supported Cisco C-Series integration topology?



  A. Exhibit A
  B. Exhibit B
  C. Exhibit C
  D. Exhibit D
  B. Exhibit B

• Question 77:

  Which statement is true regarding Cisco FabricPath?

  A. It is necessary to first install the Cisco FabricPath feature set in the default VDC.
  B. Cisco FabricPath is only available on Cisco Nexus 7010 Switches with the Supervisor 2 engine.
  C. Cisco FabricPath cannot be disabled explicitly for a specific VDC.
  D. If the Cisco FabricPath feature is not installed, the fabricpath keyword will be available in the feature-set command.
  A. It is necessary to first install the Cisco FabricPath feature set in the default VDC.

• Question 78:

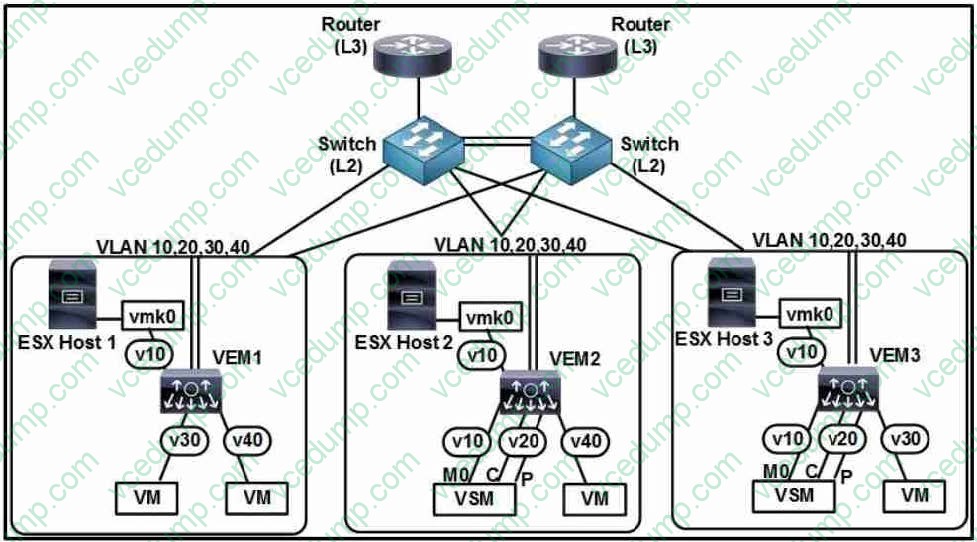

  Refer to the exhibit. The VEMs fail to join a Cisco Nexus 1000V Series Switch. You determine that a system VLAN must be set on a system-uplink port profile. Which VLAN do you configure as a system VLAN?

  A. 40
  B. 10
  C. 20
  D. 30
  B. 10

• Question 79:

  Refer to the exhibit.



  When suspending or deleting VSANs, which three statements are true? (Choose three.)

  A. You can delete only one VSAN at a time.
  B. You must wait 60 seconds after you enter the vsan suspend command before you enter another command.
  C. You must wait 120 seconds after you enter the vsan suspend command before you enter another command.
  D. You can unsuspend only one VSAN at a time.
  E. You can delete multiple VSANs as long as they are in the same domain.
  F. You can delete multiple VSANs as long as they are in the same zone.
  A. You can delete only one VSAN at a time.
  B. You must wait 60 seconds after you enter the vsan suspend command before you enter another command.
  D. You can unsuspend only one VSAN at a time.

• Question 80:

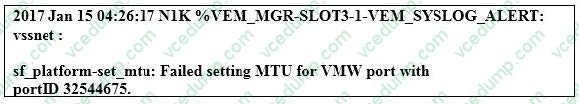

  Refer to the exhibit.



  You configure an MTU on an Ethernet port profile. Where is the MTU value unsupported?

  A. pNIC on the VEM
  B. vNIC of the VEM
  C. VMware vCenter
  D. Cisco Nexus 1000V Series 1000V Switch
  B. vNIC of the VEM
