• Question 61:

  What is one requirement for running FabricPath on a Cisco Nexus 7000 Series switches?

  A. You must have an F Series module
  B. You must run NX-OS version 4.2 to run FabrciPath
  C. ISSU needs to be disabled to run FabricPath
  D. LAN_TRANSPORT_SERVICES_PKG license needs to be installed to run FabrciPath
  A. You must have an F Series module

• Question 62:

  While attempting to boot a Cisco UCS server from SAN, you are unable to see the LUN. Which of these are causing the problem? (Choose three.)

  A. VHBA template
  B. RAID policy
  C. zoning
  D. LUN ID
  E. vACLs
  F. disjoint fabrics
  A. VHBA template
  C. zoning
  D. LUN ID

• Question 63:

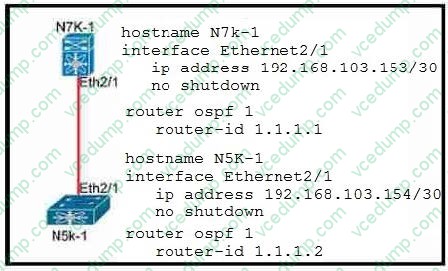

  Refer to the exhibit. No OSPF neighborship exists between N5K-1 and N7K-1. Which configuration resolves this issue?

  A. (config)# router ospf 1 (config-router)# network 192.168.103.152 255.255.252 area 0
  B. (config)# ip router ospf 1 area 0
  C. (config)# router ospf 1 (config-router)# network 192.168.103.152 0.0.0.3 area 0
  D. (config-if)# ip router ospf 1 area 0
  C. (config)# router ospf 1 (config-router)# network 192.168.103.152 0.0.0.3 area 0

• Question 64:

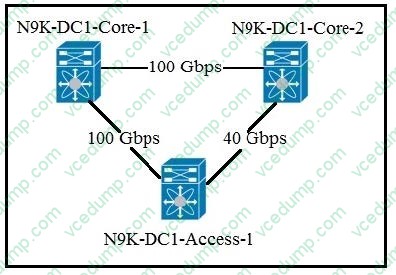

  Refer to the exhibit. The spanning tree is blocking the connection between N9K-DC1-Core-1 and N9K-DC1-Access-1. All ports are up and configured. Which configuration resolves the issue?

  A. Set the pathcost method to long on all three switches
  B. Configure a vPC between N9K-DC1-Core-1 and N9K-DC1-Access-1
  C. Configure LACP between N9K-DC1-Core-1 and N9K-DC1-Access-1
  D. Lower the spanning tree cost on the connection between N9K-DC1-Core-2 and N9K-DC1-Access-1
  D. Lower the spanning tree cost on the connection between N9K-DC1-Core-2 and N9K-DC1-Access-1

• Question 65:

  When using a Cisco Nexus 5500 and Cisco Nexus 7000 Series Switch, how can a port channel interface be configured?

  A. Layer 3 interface
  B. Layer 3 interface in non-admin VDC only
  C. Layer 3 interface in admin VDC only
  D. Layer 3 interface in VDC 1 only
  A. Layer 3 interface

• Question 66:

  Which statement about when the FSM on a blade is set to FsmComputeBladeDiscoverCimcInventory is true?

  A. The Object is a ComputeBlade, the Workflow being performed is Discover, and the current Operation is CimcInventory on the managingInst node.
  B. The Object is a Compute, the Workflow being performed is BladeDiscover, and the current Operation is CimcInventory on the managementInst node.
  C. The Object is a ComputeBlade, the Workflow being performed is Discover, and the current Operation is CimcInventory on the master node.
  D. The Object is a Compute, the Workflow being performed is BladeDiscover, and the current Operation is CimcInventory on the master node.
  A. The Object is a ComputeBlade, the Workflow being performed is Discover, and the current Operation is CimcInventory on the managingInst node.

• Question 67:

  In a Cisco Data center network, what troubleshooting step would you do first when having a npv issue?

  A. Check to see if npv is enabled
  B. Check name server database to see if it recognizes device
  C. Check detail config of FCNS database
  D. Check the show-tech-support detail
  A. Check to see if npv is enabled

• Question 68:

  Which statement about the Nexus atomic rollback feature is true?

  A. It restores the default manufacturing configuration.
  B. Each error must be acknowledged prior to implementation.
  C. It is implemented only if no errors occur.
  D. It is implemented and any errors are skipped.
  C. It is implemented only if no errors occur.

• Question 69:

  You use dynamic vNICs. You create a new service profile. You receive an error message that indicates that you exceeded the number of dynamic vNICs. Which two components can affect the maximum number of dynamic vNICs in the Cisco UCS environment? (Choose two.)

  A. the model of the fabric interconnects
  B. the number of chassis uplinks
  C. the model of the FEX
  D. VMDirectPath sizing
  A. the model of the fabric interconnects
  B. the number of chassis uplinks

• Question 70:

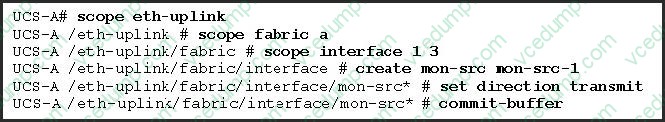

  Refer to the exhibit. When this configuration is entered on a fabric interconnect, which traffic is added as a source for a monitoring session?



  A. the ingress traffic on uplink port 1 on slot 3
  B. the ingress traffic on uplink port 3 on slot 1
  C. the egress traffic on uplink port 1 on slot 3
  D. the egress traffic on uplink port 3 on slot 1
  D. the egress traffic on uplink port 3 on slot 1
