Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 1:

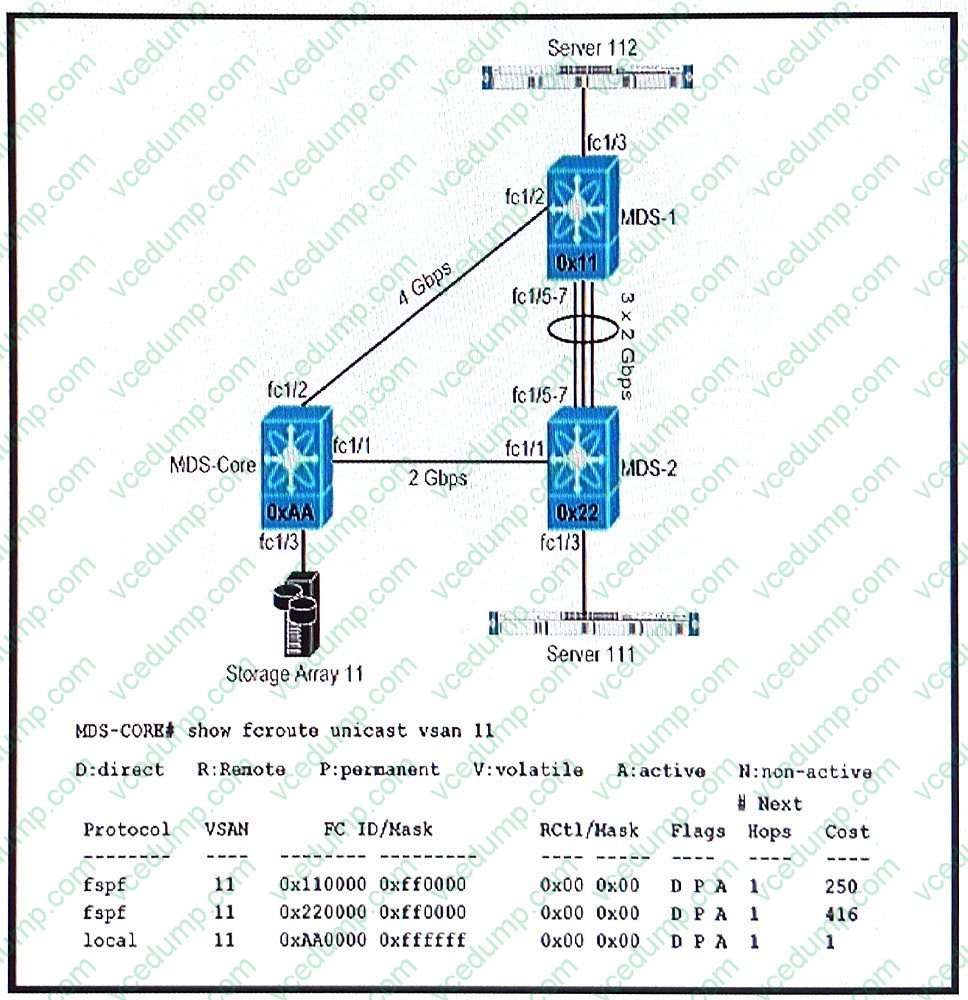

  Refer to the exhibit.



  Your customer reports that all storage traffic from storage array 11 to server 111 is taking the longest path, traveling from MDS-1 to MDS-2. You start troubleshooting the issue buy checking the Fibre Channel routing table. Which configuration set fixes the customer issues without affecting the storage array route of server 112?

  A. MDS-Core(config)# interface fc1/1 MDS-Core(config-if)# fspf cost 90 vsan 11
  B. MDS-Core(config)# interface fc1/1 MDS-Core(Config-if)# cost 80 vsan 11
  C. MDS-Core(config)# interface fc 1/1 MDS-Coe(config-if)# fspf cost 60 vsan 11
  D. MDS-Core(config)# interface fc1/1 MDS-Core(config-if)# fspf cost 70 vsan 11
  C. MDS-Core(config)# interface fc 1/1 MDS-Coe(config-if)# fspf cost 60 vsan 11

• Question 2:

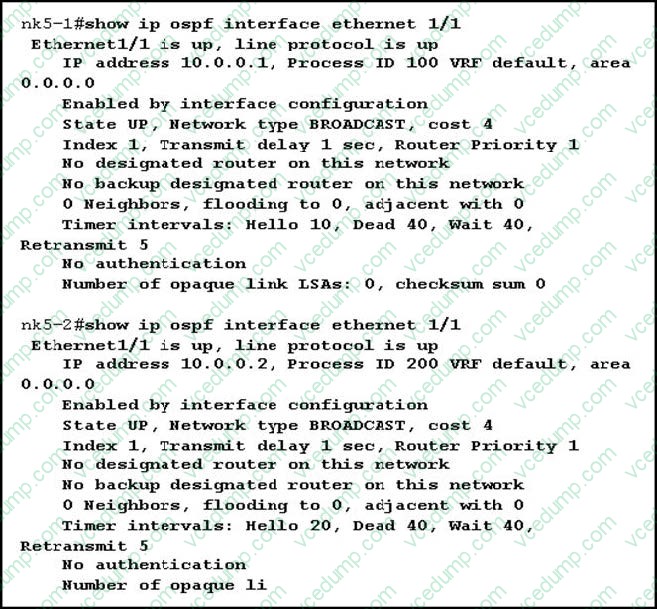

  Refer to Exhibit.



  The Cisco Nexus 5000 Series Switches fail to form an OSPF adjacency. Which option is a possible cause of the issue?

  A. The interfaces are disabled.
  B. The network type is set to broadcast
  C. There is mismatched process ID
  D. The OSPF hello timer values are mismatched.
  D. The OSPF hello timer values are mismatched.

• Question 3:

  The Cisco UCS Manager displays FSM information for which four of these? (Choose four.)

  A. which FSM task is being executed
  B. the current state of an FSM task
  C. the status of the previous FSM task
  D. any error codes returned while processing
  E. all completed FSM tasks
  F. multiple FSM tasks that completed over multiple tries
  G. multiple FSM tasks that failed
  A. which FSM task is being executed
  B. the current state of an FSM task
  C. the status of the previous FSM task
  D. any error codes returned while processing

• Question 4:





  Which two virtual Fibre Channel interfaces are able to pass trafficVSAN 11? {Choose two.)

  A. 11
  B. 12
  C. 13
  D. 14
  E. 15
  F. 10
  A. 11
  B. 12

• Question 5:

  Which CLI command can tell which switch is on the other side of port channel 2 that is trunking VSAN 5?

  A. show topology vsan 5
  B. show interface port-channel 2 trunk vsan 5
  C. show interface port-channel 2 vsan 5 peer-info
  D. show fcs vsan 5
  E. show fspf database vsan 5 interface port-channel 2
  A. show topology vsan 5

• Question 6:







  Which statement is true regarding the port channel 100 and 101 configurations between the Nexus 7010 switches?

  A. The vPC assignments on N7010-C2 are incorrectly swapped
  B. N7010-C1 is not allowing any active VLAN traffic to pass on Po100 and Po101.
  C. LACP is not configured to initiate negotiations.
  D. The vPC peer-keepalive is down between the two Nexus 7000 switches.
  A. The vPC assignments on N7010-C2 are incorrectly swapped

• Question 7:

  Refer to the exhibit. What can you deduce from this configuration?



  A. This configuration is not taken from a fabric interconnect.
  B. This configuration refers to an uplink port on the fabric interconnect.
  C. Fabric link Eth1/1/3 is pinned to uplink port Eth1/1.
  D. A server in slot 3 is pinned to link 1 between IOM and the fabric interconnect.
  D. A server in slot 3 is pinned to link 1 between IOM and the fabric interconnect.

• Question 8:

  How will the Cisco UCS Manager react when all of the FSM tasks fail?

  A. retries for 60 seconds
  B. raises faults and alarms
  C. restarts from the previous known good task
  D. sends an NOC SNMP trap email
  B. raises faults and alarms

• Question 9:

  Which three Cisco UCS server components can be upgraded via a host firmware package? (Choose three.)

  A. BIOS
  B. Cisco UCS Manager
  C. I/O module
  D. Cisco IMC
  E. fabric interconnect
  F. adapter
  G. board controller
  A. BIOS
  F. adapter
  G. board controller

• Question 10:

  You plan to use OSPFv2 on several Cisco Nexus 9000 Series Switches. Which setting must match on the neighboring switches to establish adjacency?

  A. the LSA arrival time
  B. the dead interval
  C. the last flood scan time
  D. the retransmit interval
  B. the dead interval
