Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 51:

  The traffic across your port channels seems to be favoring one link over the other. How can you adjust the load-balancing policy to include source and destination MAC addresses, IP address, and TCP port?

  A. kcdc-5010-1(config-if)# port-channel load-balance ethernet source-dest-port
  B. kcdc-5010-1(config-if)# port-channel load-balance ethernet source-dest mac ip port
  C. kcdc-5010-1(config)# port-channel load-balance ethernet source-dest-port
  D. kcdc-5010-1(config)# port-channel load-balance ethernet source-dest mac ip port
  C. kcdc-5010-1(config)# port-channel load-balance ethernet source-dest-port

• Question 52:

  Which three methods can be used to upgrade the Cisco IMC? (Choose three.)

  A. host firmware package
  B. blade firmware package
  C. controller firmware package
  D. management firmware package
  E. directly on the blade, under the Installed Firmware tab
  F. directly on the blade, under the Blade Firmware tab
  G. directly on the blade, under Inventory > CIMC
  D. management firmware package
  E. directly on the blade, under the Installed Firmware tab
  G. directly on the blade, under Inventory > CIMC

• Question 53:

  Where do you configure users so that they cannot access resources that belong to other organizations?

  A. roles
  B. domain separation
  C. locals
  D. VDCs
  C. locals

• Question 54:

  Refer to the exhibit.



  VSAN traffic is not being routed through SAN fabric. Which action is helpful to resolve the problem?

  A. Make sure that the FSPF hello interval value matches on both switches.
  B. Change the FSPF hello timer back to the default of 5 seconds.
  C. Make sure that the FSPF hello timers are different so that they do not compete.
  D. Make sure that the FSPF dead timers are both set to 0.
  A. Make sure that the FSPF hello interval value matches on both switches.

• Question 55:

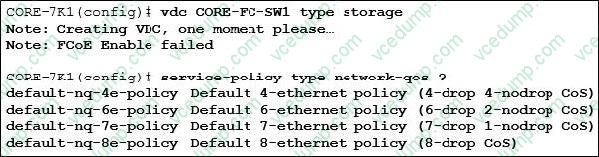

  Refer to the exhibit.

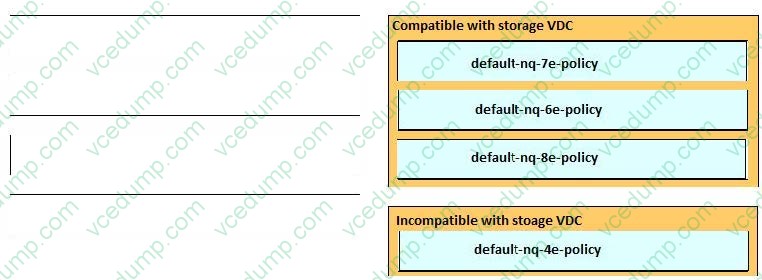

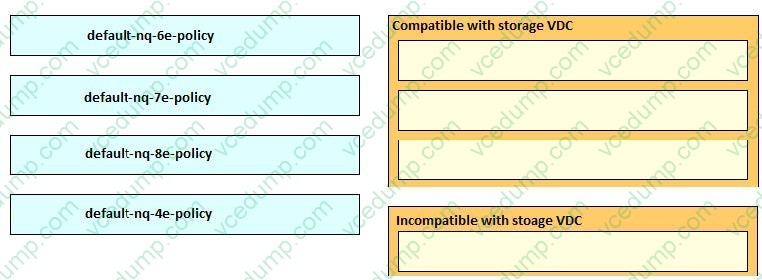

  You are configuring a FCoE VDC on a Cisco Nexus 7000 Series Switch. You are required to identify compatible QoS policies for the FCoE VDC. Drag and drop the QoS policy names from the left onto the correct compatibility categories on the right.

  Select and Place:





• Question 56:

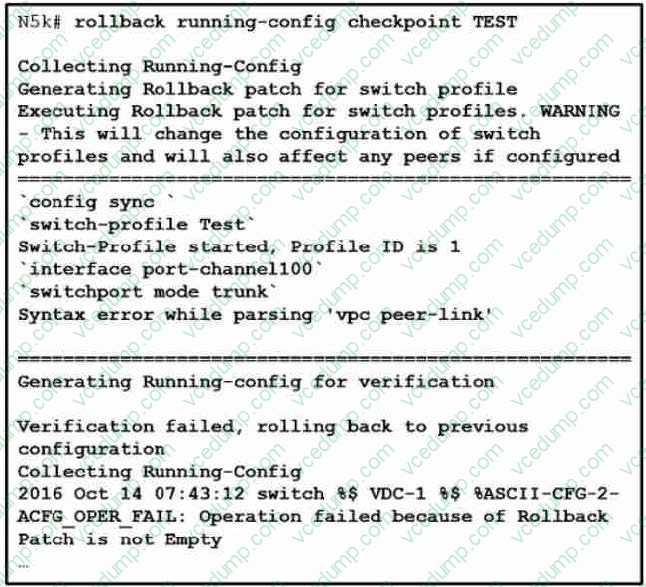

  Refer to the exhibit. Why did the configuration synchronization rollback fail?

  A. The switch profile is incorrect.
  B. The checkpoint test does not exist.
  C. The rollback patch is not empty.
  D. The vPC is not configured.
  C. The rollback patch is not empty.

• Question 57:

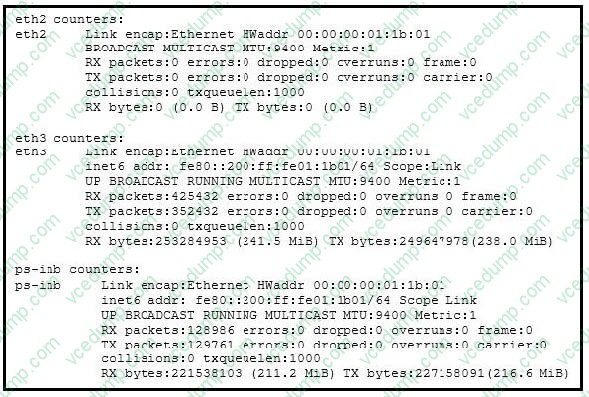

  Refer to the exhibit.



  Which command was used to produce the output for the inband packet statistics?

  A. show hardware internal cpu-mac inband counters
  B. show system internal interface counters module
  C. show interface counters all
  D. show interface counters detail
  A. show hardware internal cpu-mac inband counters

• Question 58:

  FCoE appears to be properly configured. Which two steps should you take to verify the FCoE configuration? (Choose two.)

  A. Run the feature fcoe command.
  B. Verify that the jumbo MTU is properly set.
  C. Ensure that the license has been applied.
  D. Utilize the proper CoS values on each side.
  B. Verify that the jumbo MTU is properly set.
  D. Utilize the proper CoS values on each side.

• Question 59:

  When using the Cisco UCS Manager GUI to troubleshoot a suspected bad memory, which logs contain data that are related to the faulty DIMM?

  A. the System Event log and Faults log that are located under the Admin tab
  B. the Events log and Faults log that are located under the Admin tab
  C. the System Event log that is located under the Server tab in the Navigation panel and the Faults log that is located under the Admin tab
  D. the System Event log that is located under the Equipment tab and the Faults log that is located under the Admin tab
  D. the System Event log that is located under the Equipment tab and the Faults log that is located under the Admin tab

• Question 60:

  Which two statements are true regarding vPC configuration? (Choose two.)

  A. With vPC, there are no blocked ports.
  B. vPC uses hash-based EtherChannel load balancing.
  C. There are STP-blocked redundant links.
  D. There is VLAN-based load balancing.
  E. There is higher oversubscription.
  A. With vPC, there are no blocked ports.
  B. vPC uses hash-based EtherChannel load balancing.
