Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 441:

  HOTSPOT





  Hot Area:





• Question 442:

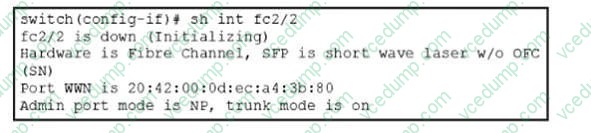

  Refer to the exhibit,



  You configure a Cisco Nexus 5000 in NPV mode to enable multiple servers to log in over a single link to the NPV switch. Which option describes why the vfc interface is stuck on "initializing" state?

  A. The load balancing is configured incorrectly on the Cisco Nexus 5000 switch.
  B. The Version of code does not support the NPV feature.
  C. The Cisco Nexus 5000 switch does not have "feature npv" enabled.
  D. The upstream switch does not have "feature npiv" enabled.
  D. The upstream switch does not have "feature npiv" enabled.

• Question 443:

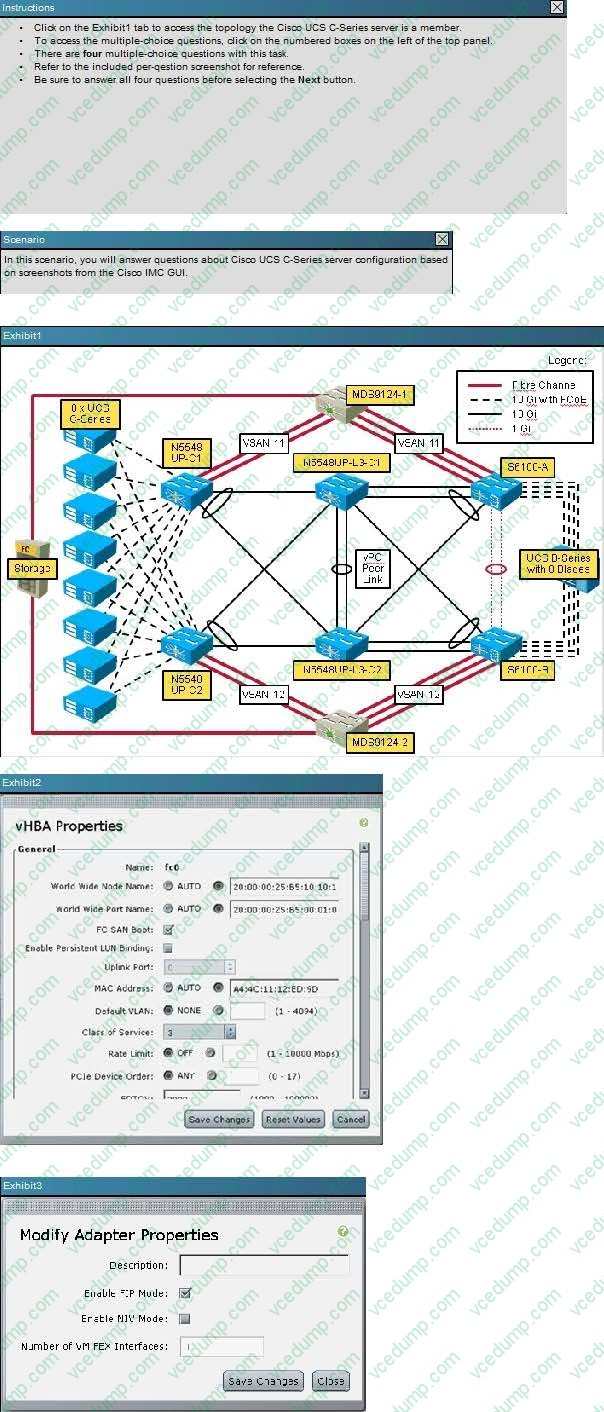

  Refer to Exhibit 3. Which two statements are true if the Enable NIV Mode checkbox is selected on a Cisco VIC? {Choose two.)

  A. It enables N-Port Intrface Virtualization on the VIC
  B. vNICs can fail over to another vNIC if there are communication problems
  C. NIV mode is required for FCoE
  D. vNICs can be assigned to a specific channel
  E. It allows for the creation of up to 12 vHBAs
  B. vNICs can fail over to another vNIC if there are communication problems
  E. It allows for the creation of up to 12 vHBAs

• Question 444:

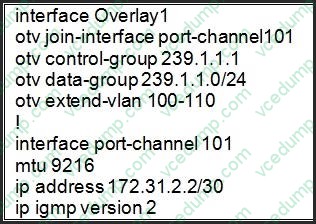

  Refer to the exhibit. Which two issues cause a problem with the implementation of an OTV between data centers? (Choose two.)



  A. incorrect control-group address
  B. incorrect data-group range
  C. overlapping control-group and data-ranges
  D. incorrect MTU
  E. incorrect IGMP version
  C. overlapping control-group and data-ranges
  E. incorrect IGMP version

• Question 445:

  A customer reports that they are missing vPC peer link redundancy between two Cisco Nexus 5548UP switches The interfaces on both switches are configured and cabled correctly. The interface status is up/down on switch 1 and up/up on switch 2, Which two steps should be taken to isolate the root cause? (Choose two.)

  A. Swap the ends of the fiber-optic cable
  B. ask the customer if the link was ever functional
  C. determine whether the fiber-optic cable manufacturer is valid under the interoperability matrix
  D. swap the transceivers between the two interfaces
  E. determine Whether the fiber-optic cable type (single mode or multimode) matches the X2 modules
  A. Swap the ends of the fiber-optic cable
  D. swap the transceivers between the two interfaces

• Question 446:

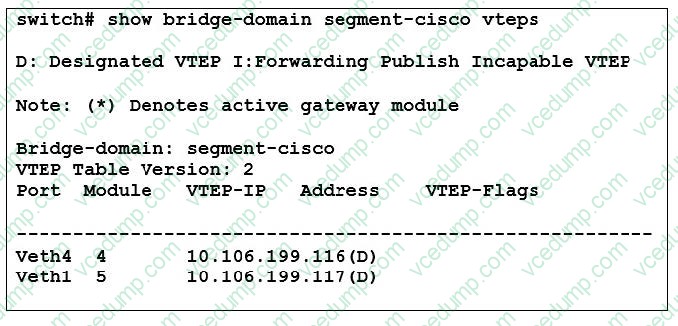

  Refer to the exhibit.



  Which description of the output is true?

  A. Two VTEP table versions exist.
  B. One designated VTEP is in the bridge domain.
  C. Two VTEP are in the VSM.
  D. Two VTEPs are in the VEM.
  C. Two VTEP are in the VSM.

• Question 447:

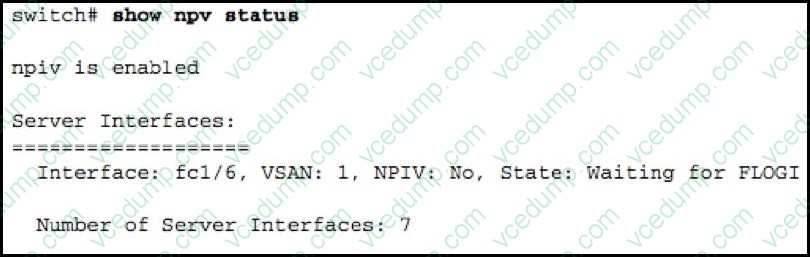

  Refer to the exhibit.



  Customer encounters the problem as shown in the exhibit. What is the cause of the problem?

  A. No server was requested or received by the FLOGI database.
  B. One external link must be up for server interface to be up.
  C. Multiple external links must be up for the server to come up.
  D. Internal links are down and must be up for the server interface to be up.
  A. No server was requested or received by the FLOGI database.

• Question 448:

  A customer is configuring VSANs in a Cisco UCS domain. After configuring the VSANs 3840, 3841, and 3842 in FC end-host mode, the customer sees that these VSANs are not operational and that Cisco UCS Manager is raising faults. What is the cause of this problem?

  A. VSANs 3840, 3841, and 3842 should be in the allowed list on the trunk to clear the fault.
  B. VSANs 3840 to 4079 cannot be used in Fibre Channel end-host mode in a Cisco UCS domain.
  C. The fabric interconnect needs to be configured in switching mode and the VSANs need to be allowed on the trunk.
  D. Use the UCS CLI to clear the fault on the VSAN trunk to forward the VSANs with faults.
  B. VSANs 3840 to 4079 cannot be used in Fibre Channel end-host mode in a Cisco UCS domain.

• Question 449:

  On a Cisco UCS C-Series Rack-Mount Server, which state of the DIMM fault LED indicates a faulty DIMM module?

  A. OFF
  B. flashing red
  C. solid amber
  D. flashing amber
  E. flashing blue
  C. solid amber

• Question 450:

  Which three are valid tech support bundles to collect in the local management shell? (Choose three.)

  A. UCSM
  B. UCSM-MGMT
  C. Port-Channel
  D. Adapter
  E. SAN
  F. FEX
  A. UCSM
  B. UCSM-MGMT
  F. FEX
