Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 391:

  You are troubleshooting a port configuration. Interface e1/1 is configured by using port profiles. Which command do you run to view the actual commands that were applied to interface e1/1?

  A. show port-profile virtual usage
  B. show run interface eth1/1 expand-port-profile
  C. show port-profile sync-status
  D. show run interface eth1/1
  C. show port-profile sync-status

• Question 392:

  HOTSPOT







  Hot Area:





• Question 393:

  Which command on the Fabric Interconnect displays packet statistics for a given QoS group and MTU size?

  A. show policy-map interface ethernet x/y
  B. show queuing interface ethernet x/y
  C. show interface ethernet x/y
  D. show class-map type qos
  E. show interface queuing ethernet x/y
  B. show queuing interface ethernet x/y

• Question 394:

  You have remote CLI access using SSH to the Cisco UCS equipement of a customer. Which command must you use to check for system errors in the UCS domain?

  A. show fault
  B. show cluster
  C. show chassis
  D. show failover
  A. show fault

• Question 395:

  How does the FSM react after an error or timeout at a stage?

  A. stops
  B. retries until successful
  C. continues
  D. retries that stage at scheduled intervals
  E. raises faults and continues
  D. retries that stage at scheduled intervals

• Question 396:

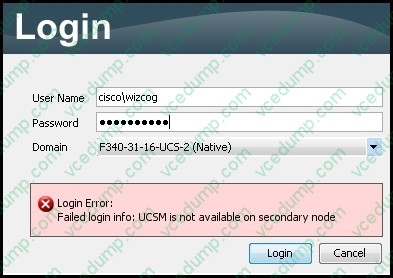

  Refer to the exhibit.



  Which mistake did the UCS administrator make when trying to access the GUI?

  A. specified the incorrect login domain
  B. did not use the VIP
  C. tried to login before the GUI had fully booted up
  D. password is incorrect
  E. attempted to login to the subordinate cluster peer
  E. attempted to login to the subordinate cluster peer

• Question 397:

  A Cisco UCS admin is trying to integrate Cisco UCS Manager with Active Directory Authentication. After the configuration is done, the admin is still unable to log in using LDAP credentials. When running a debug on the Fabric Interconnect, this error is displayed:

  ldap_build_roles_and_locales_from_attr: No attr for usr profile

  Which step was missed in the configuration?

  A. The LDAP provider was not configured correctly.
  B. The proper RBAC role(s) were not assigned to the user.
  C. Cisco UCS Manager 2.1 is required for LDAP integration.
  D. The "Attribute" field in Cisco UCS was left blank.
  B. The proper RBAC role(s) were not assigned to the user.

• Question 398:

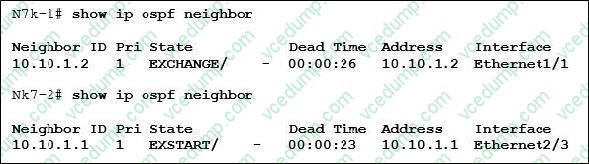

  Refer to the exhibit.



  The two switches are stuck in the EXCHANGE and EXSTART states. Which option is a possible cause of the issue?

  A. The subnet mask is mismatched.
  B. The interfaces are not connected.
  C. The MTU is mismatched.
  D. The IP address of the OSPF process is incorrect.
  C. The MTU is mismatched.

• Question 399:

  Which Cisco NX-OS command can be used to determine if OSPF hello packets are being transmitted and received between neighbors?

  A. show ip ospf interface
  B. show ip ospf event-history statistics
  C. show ip ospf statistics
  D. show ip ospf traffic
  B. show ip ospf event-history statistics

• Question 400:

  Which connectivity topology is valid for Cisco UCS B-Series Servers?

  A. a standalone Cisco UCS Fabric Interconnect that has a dual uplink from the IOM to the Fabric Interconnect
  B. dual Cisco UCS Fabric Interconnects without L1-L1 and L2-L2 connections
  C. dual Cisco UCS Fabric Interconnects without L2-L2 connections
  D. IOM bypass
  A. a standalone Cisco UCS Fabric Interconnect that has a dual uplink from the IOM to the Fabric Interconnect
