Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 411:

  Which two features are required to configure a blade to boot successfully from Fibre Channel? (Choose two.)

  A. LUN masking
  B. WWPN device alias
  C. boot from SAN policy
  D. SAN connectivity policy
  E. port assignment
  B. WWPN device alias
  C. boot from SAN policy

• Question 412:

  Which two statements about configuring a traffic monitoring session are true? (Choose two.)

  A. You can set a local VM as a traffic destination.
  B. You can have up to two active monitoring sessions simultaneously.
  C. An unlimited number of monitoring session can be stored.
  D. A newly created monitoring session is enabled by default.
  E. A destination port can also be a source port within the same session.
  F. A vHBA can be a source for either an Ethernet or Fibre Channel monitoring session, but not both.
  B. You can have up to two active monitoring sessions simultaneously.
  F. A vHBA can be a source for either an Ethernet or Fibre Channel monitoring session, but not both.

• Question 413:

  How many FSM tasks can run concurrently on a server?

  A. 1
  B. 2
  C. 4
  D. 16
  A. 1

• Question 414:

  Which two options would cause switch fabrics not to merge? (Choose two.)

  A. The switches have different assigned VSANs on the connecting ports.
  B. The switches do not have at least one assigned domain ID in common.
  C. The election of the static domain is only determined by the WWNs of the two switches,
  D. The switches have different assigned VLANs on the connecting ports.
  E. The static domain ID does not override the dynamic ID
  A. The switches have different assigned VSANs on the connecting ports.
  B. The switches do not have at least one assigned domain ID in common.

• Question 415:

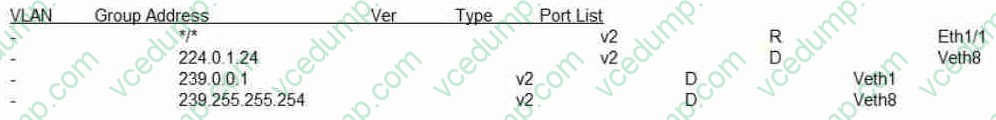

  Refer to the exhibit. IGMP Snooping is configured on the Cisco Nexus 1000v switch to support the PIM sparse mode implementation within the data center. Which command validates the multicast configuration below on the Nexus 1000v switch?



  A. show ip igmp snooping groups vlan 702
  B. show ip igmp snooping groups vlan 700
  C. show ip igmp snooping groups vlan 703
  D. show ip igmp snooping groups vlan 701
  B. show ip igmp snooping groups vlan 700

• Question 416:

  Which two protocols are important for DCBX to enable the 'no drop' classes that are needed for lossless transmission? (Choose Two.)

  A. PFC
  B. LACP
  C. FIP
  D. LLDP
  E. ETS
  A. PFC
  E. ETS

• Question 417:

  Drag the Cisco UCS Manager maintenance actions on the left to the correct descriptions on the right. Not all options are used.

  Select and Place:





• Question 418:

  Refer to exhibit.



  Customer has a pair of Cisco Nexus7010s switches and connected to a single Cisco Nexus5548 switch via vPC. Customer has a combination of M1 and F1 I/O Modules in Cisco Nexus7010s. Why is the design described not supported?

  A. Mixing I/O Modules on the Same Side of a Peer Link is not supported
  B. vPC does not support split control plane
  C. You can not configure a vPC peer link to configure two devices as vPCs
  D. Need to add another Cisco Nexus5548 switch to the topology to make this work.
  A. Mixing I/O Modules on the Same Side of a Peer Link is not supported

• Question 419:

  You attempt to install the 64-bit version of Windows Server 2008 on a Cisco UCS C-Series Rack-Mount Server. The installation starts, but the operating system fails to recognize the hard drive or the RAID array. Which option is the cause of the problem?

  A. Windows Server 2008 is incompatible with Cisco UCS C-Series servers.
  B. The HDD firmware is too old and fails to be recognized by the operating system.
  C. LSI drivers are not bundled in the 64-bit version of Windows 2008.
  D. Microsoft operating systems are cannot be installed on RAID arrays.
  C. LSI drivers are not bundled in the 64-bit version of Windows 2008.

• Question 420:

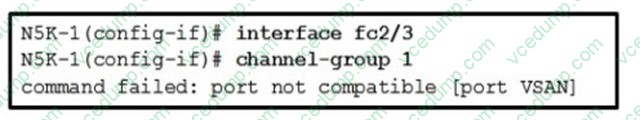

  Refer to the exhibit. Which configuration do you perform to ensure that the commands can complete successfully?



  A. Use the force parameter of the channel-group command
  B. Use the trunk parameter of the channel-group command
  C. Manually change the VSAN on the remote switch
  D. Manually change the VSAN on the local switch
  B. Use the trunk parameter of the channel-group command
