Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 381:

  A customer is troubleshooting FCoE in its network. They have discovered that vFC is currently down and there is no active STP port state on the bound Ethernet interface. What should the STP port state be to correct this issue?

  A. The bound interface should be in an STP forwarding state for the native VLAN only.
  B. The bound interface should be in an STP learning state for both the native VLAN and the member FCoE VLAN that is mapped to the active VSAN.
  C. The bound interface should be in an STP forwarding state for both the native VLAN and the member FCoE VLAN that is mapped to the active VSAN.
  D. The bound interface should be in an STP blocking state for both the native VLAN and the member FCoE VLAN that is mapped to the active VSAN.
  C. The bound interface should be in an STP forwarding state for both the native VLAN and the member FCoE VLAN that is mapped to the active VSAN.

• Question 382:

  A customer is troubleshooting degraded DIMM errors on a Cisco UCS blade server and would like to reset the BMC. What is the correct command sequence to reset the BMC?

  A. UCS1-A# server x/y UCS1-A /chassis/server # scope bmc UCS1-A /chassis/server/bmc # reset UCS1-A /chassis/server/bmc* # commit-buffer
  B. UCS1-A# server scope UCS1-A /chassis/server # scope bmc UCS1-A /chassis/server/bmc # reset UCS1-A /chassis/server/bmc* # commit-buffer
  C. UCS1-A# scope server x/y UCS1-A /chassis/server # scope bmc UCS1-A /chassis/server/bmc # reset UCS1-A /chassis/server/bmc* # commit-buffer
  D. UCS1-A# scope server x/y UCS1-A /chassis/server # scope bmc UCS1-A /chassis/server/bmc* # commit-buffer
  C. UCS1-A# scope server x/y UCS1-A /chassis/server # scope bmc UCS1-A /chassis/server/bmc # reset UCS1-A /chassis/server/bmc* # commit-buffer

• Question 383:

  You apply a new CoPP profile to a Cisco Nexus 7000 Series, and it stops responding to ping requests. Which option should you check?

  A. server SO
  B. SVI that is associated with the server subnet
  C. CoPP counters
  D. ACL that is associated with the CoPP profile applied
  D. ACL that is associated with the CoPP profile applied

• Question 384:

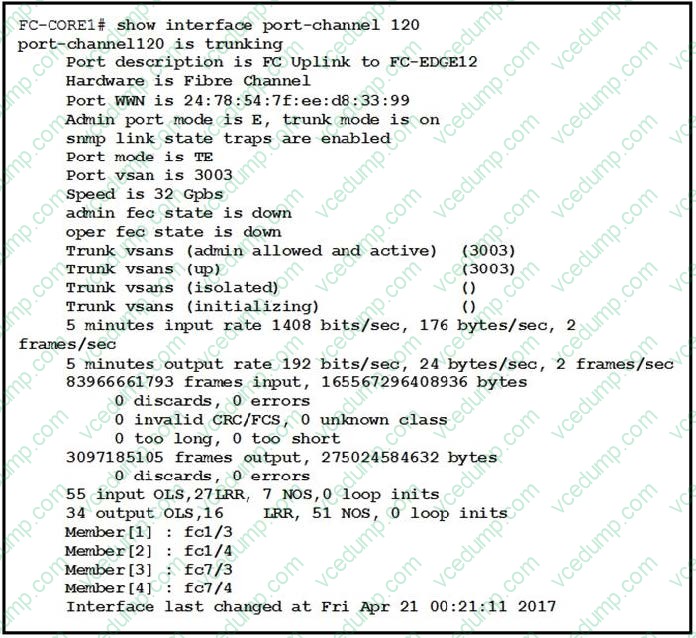

  Refer to the exhibit.



  The FC-CORE1 switch connects to the FC-EDGE12 switch via port channel 120. How many links must fail to cause the port channel state to change to down?

  A. 3
  B. 4
  C. 5
  D. 6
  B. 4

• Question 385:

  You must check the status of the configuration synchronization of a peer switch. Which command do you run?

  A. show peer status
  B. show switch peer
  C. show synch peer
  D. show switch-profile peer
  D. show switch-profile peer

• Question 386:

  You attempt to boot a supported Linux operating system live image from the eUSB in a Cisco UCS blade-server environment, but the boot fails. Which option is the most likely cause of the failure?

  A. In the Service Profile, a device other than the eUSB is set first in the boot order for the server.
  B. The eUSB license is unavailable or the grace period of the license is expired.
  C. The blade servers are unable to boot from the eUSB. The eUSB is used only for virtual machines.
  D. Access to the eUSB is disabled for that blade server by Power Manager.
  A. In the Service Profile, a device other than the eUSB is set first in the boot order for the server.

• Question 387:

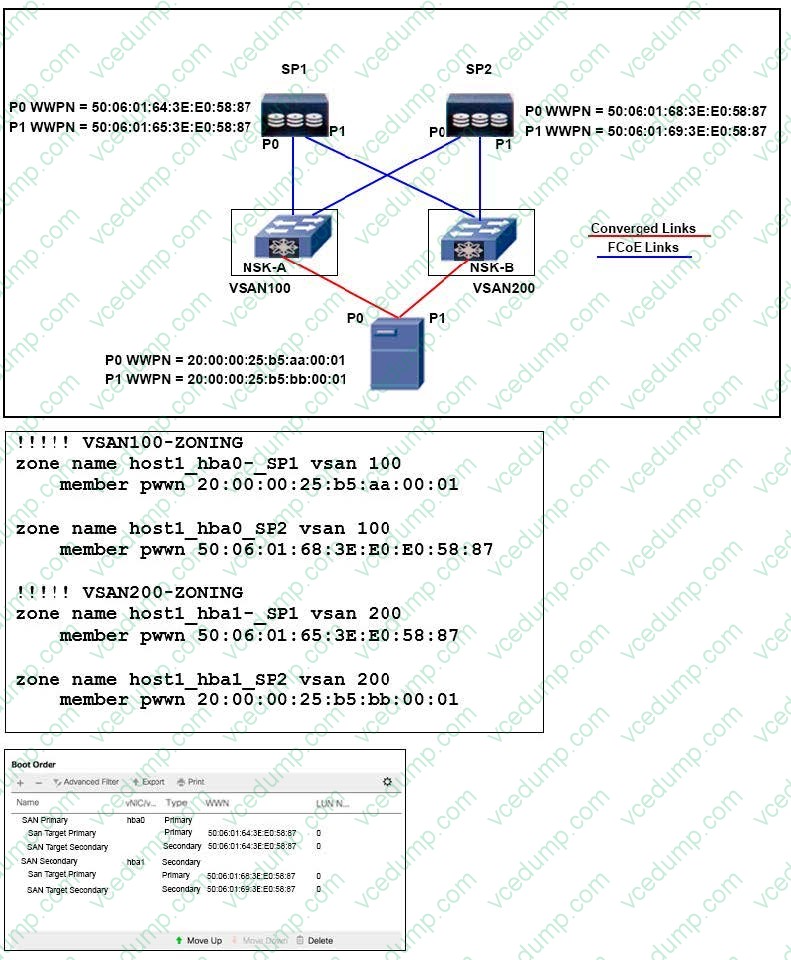

  Refer to the exhibit.

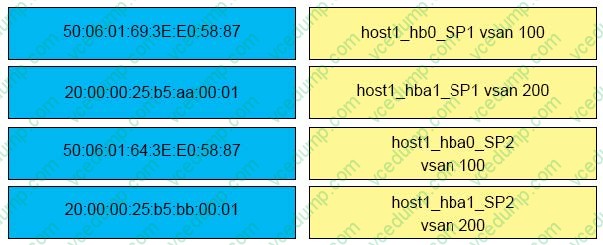

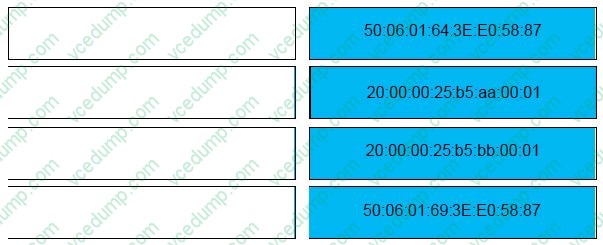

  Boot from SAN fails. The host fails to detect the LUNs. You must resolve the issue. Drag and drop the WWPNs on the left to the correct zones on the right.

  Select and Place:





• Question 388:

  A customer reports that a 10-Gb interface between a Cisco Nexus 7009 Switch and a Cisco Nexus 5548UP Switch is not passing traffic. The Nexus 7009 interface indicates up/up. The Nexus 5548UP interface indicates up/down. Which feature should you enable to help isolate the root cause?

  A. CDP
  B. GOLD
  C. UDLD
  D. DAI
  E. LACP
  C. UDLD

• Question 389:

  Which statement about Cisco UCS version compatibility is true?

  A. All bundles (A, B, and C) must be the same version.
  B. The B and C bundles must be the same revision.
  C. The A bundle can be one revision higher than the B/C bundles.
  D. The B/C bundles can be one revision higher than the A bundles.
  C. The A bundle can be one revision higher than the B/C bundles.

• Question 390:

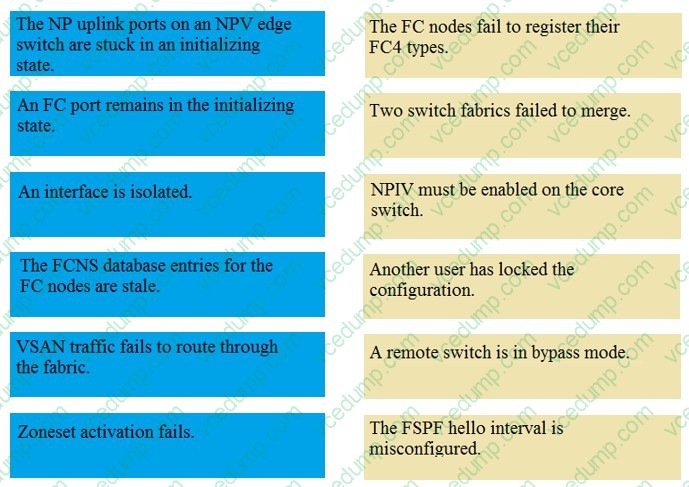

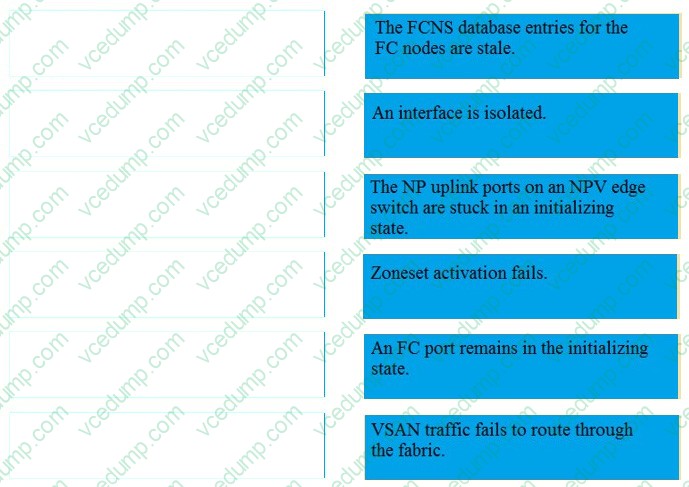

  Drag and drop the errors on the left to the events that cause the errors on the right.

  Select and Place:
