Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 371:

  Which two statements are true regarding vPC? (Choose two,)

  A. A peer link is required,
  B. STP is disabled.
  C. There is VLLN-based load balancing
  D. with vPC, there are no blocked ports
  A. A peer link is required,
  D. with vPC, there are no blocked ports

• Question 372:

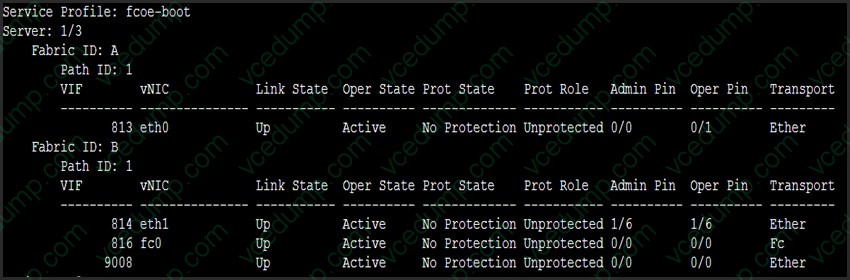

  Refer to the exhibit. Which three statements are true based on the output of "show service- profile circuit server 1/3". (Choose three.)



  A. vnic eth0 is pinned to module 0 interface 1.
  B. vnic eth1 is pinned to module 1 interface 6.
  C. vnic eth0 is pinned to port channel 1.
  D. vnic eth1 is pinned to port channel 6.
  E. A LAN pin group is configured on vnic eth0.
  F. A LAN pin group is configured on vnic eth1.
  B. vnic eth1 is pinned to module 1 interface 6.
  C. vnic eth0 is pinned to port channel 1.
  F. A LAN pin group is configured on vnic eth1.

• Question 373:

  Which command must you use to identify an active VIF for a particular blade in a Cisco UCS B-Series chassis?

  A. scope service-profile server [blade_slot]
  B. show cluster extended-state
  C. show pinning border-interfaces
  D. show service-profile circuit server [blade_slot]
  D. show service-profile circuit server [blade_slot]

• Question 374:

  A Cisco UCS chassis has two ports on I/O Module 1 connected to Fabric Interconnect A, and two ports on I/O Module 2 connected to Fabric Interconnect B. The I/O modules are connected to ports 1 and 2 on their respective fabric interconnects, and end host mode is configured. After a link failure occurs on port 1 of I/O Module 1, what happens to the traffic that was pinned to that link?

  A. The traffic fails until the link issue is resolved.
  B. The traffic is repinned to I/O Module 2 link 1, which is connected to Fabric Interconnect
  D. The traffic is repinned to the remaining link between I/O Module 1 and Fabric Interconnect A.
  E. The traffic is repinned automatically to Fabric Interconnect B.
  C

• Question 375:

  Which option describes why the merge status for any application shows "In Progress" for a prolonged period of time when a new switch is added to the fabric?

  A. The new switch must be upgraded to match the same version of code as the original switch.
  B. The ports between the switches are not trunking all VSANs.
  C. The application needs to be started on both switches.
  D. There are outstanding changes that must be committed.
  E. The merge status cannot occur until a copy running-config startup-config is done.
  D. There are outstanding changes that must be committed.

• Question 376:





  Refer to Exhibit 5. Which of the following is true regarding password recovery for the Cisco IMC GUI interface?

  A. From the KVM Console, press F12 during POST to reset the credentials to admin/password
  B. Type RECOVER into the Username field, and then type SYSTEM in the Password field to enter recovery mode
  C. Refer to the model-specific Cisco UCS C-Series Hardware guide to learn the location of the recovery jumper on the server motherboard
  D. Enter the Cisco IMC BIOS to reset the GUI password
  D. Enter the Cisco IMC BIOS to reset the GUI password

• Question 377:

  Which two maintenance policy options can you use to specify when the Cisco UCS Manager deploys a service profile change? (Choose two.)

  A. when acknowledged by any user
  B. immediately
  C. on the next reboot
  D. when acknowledged by a user with root privileges
  E. when acknowledged by a user with administrator privileges
  B. immediately
  E. when acknowledged by a user with administrator privileges

• Question 378:

  You have an unresponsive blade server. You suspect that there is an issue with the current firmware. Which action do you take to reboot the server from the Cisco UCS Manager GUI?

  A. Reset the server.
  B. Reset CIMC.
  C. Reset BMC.
  D. Recover the corrupt BIOS.
  B. Reset CIMC.

• Question 379:

  As a Cisco UCS administrator, you have a large deployment of C-Series servers. You decide to integrate these into a Cisco UCS Manager environment to simplify management. Which two of these will you need to purchase? (Choose two.)

  A. two fabric interconnects
  B. a dedicated Cisco IMC
  C. two fabric extenders
  D. two I/O modules
  A. two fabric interconnects
  C. two fabric extenders

• Question 380:

  Which command can you run to verify that new images are healthy and compatible for an upgrade or a downgrade?

  A. show install all impact
  B. show incompatibility system
  C. show incompatibility-all system
  D. show module all
  A. show install all impact
