Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 141:

  Which two types of ports are MAC addresses when operating in switch mode? (Choose two.)

  A. uplink
  B. FEX
  C. server
  D. backplane
  A. uplink
  C. server

• Question 142:

  Refer to the exhibit.



  What are three valid commands to troubleshoot why the port is disabled? (Choose three.)

  A. show san-port-channel compatibility-parameters
  B. show port info internal interface fc
  C. show san-port-channel internal info
  D. show port internal event-history interface fc
  E. show interface san-port-channel detail all
  F. show san-port-channel internal event-history all
  G. show internal interface event-history all
  A. show san-port-channel compatibility-parameters
  D. show port internal event-history interface fc
  F. show san-port-channel internal event-history all

• Question 143:

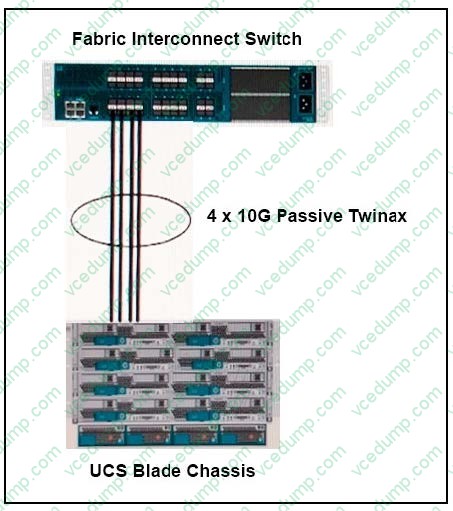

  Refer to the exhibit.



  Your customer is migrating their existing top-of-rack data center to a new location that uses an end-of-rack configuration. The customer requests a site survey prior to the migration. Which fact must you highlight in your survey that is required for a successful translation?

  A. The power source must be 240 volts only for blade chassis.
  B. Blade chassis using passive TWINAX cables must be placed within 5 meters of the end rack.
  C. The power source must be 240 volts only for fabric interconnect switches.
  D. Blade chassis must not be fully equipped with blades when using an end-of-rack setup.
  B. Blade chassis using passive TWINAX cables must be placed within 5 meters of the end rack.

• Question 144:

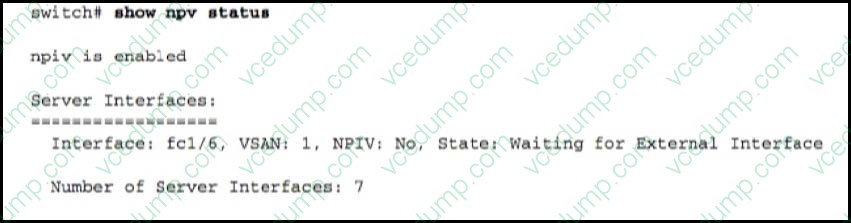

  Refer to the exhibit.



  A customer is having a problem with NPV. Which of these is the cause of the problem?

  A. No server was requested or received by the FLOGI database.
  B. One external link must be up for server interface to be up.
  C. Multiple external links must be up for the server to come up.
  D. Internal links are down and must be up for the server interface to be up.
  B. One external link must be up for server interface to be up.

• Question 145:

  What are three reasons that could cause fabric merge problems in a Cisco SAN? (Choose three.)

  A. Failure occurs when a switch supports more than 2000 zones per VSAN but its neighbor does not.
  B. All devices are in the same VSAN.
  C. The merged fabrics contain inconsistent data that could not be merged.
  D. Both host and storage are logged in to the same SAN.
  E. Small configurations may wipe out the large configurations.
  F. The VSAN database is error-disabled.
  A. Failure occurs when a switch supports more than 2000 zones per VSAN but its neighbor does not.
  C. The merged fabrics contain inconsistent data that could not be merged.
  E. Small configurations may wipe out the large configurations.

• Question 146:

  A customer is configuring LAN pin groups in a Cisco UCS domain. The customer has two fabric interconnects and would like to associate the pin group with only one interconnect. Which statement about this configuration is true?

  A. In a system with two fabric interconnects, you can associate the pin group with only one fabric interconnect, and the other fabric interconnect will not be usable.
  B. In a system with two fabric interconnects, you can only associate the pin group with both fabric interconnects; you cannot associate the pin group with only one fabric interconnect.
  C. In a system with two fabric interconnects, you can associate the pin group with only one fabric interconnect or with both fabric interconnect. This is a supported configuration.
  D. This configuration is not supported in a Cisco UCS domain.
  C. In a system with two fabric interconnects, you can associate the pin group with only one fabric interconnect or with both fabric interconnect. This is a supported configuration.

• Question 147:

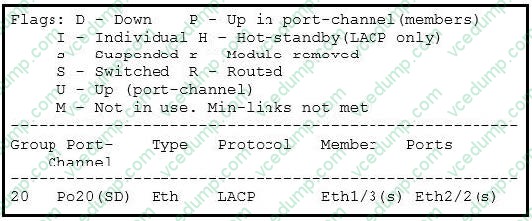

  Refer to the exhibit.



  An administrator is trying to configure a port channel on a Cisco Nexus 7000 Series Switch, which is connected to a Cisco Nexus 5500 Series Switch. The port channel will not come up, so the administrator executes the show port-channel summary command on the Cisco Nexus 7000 Series Switch and displays the output.

  What are two causes of the error? (Choose two.)

  A. The Cisco Nexus 7000 Series Switch needs to be configured with no lacp suspend-individual.
  B. The Cisco Nexus 5500 Series Switch is configured with channel-group mode on.
  C. The LACP feature has not been enabled on the Cisco Nexus 7000 Series Switch.
  D. The ports are cabled to the wrong switch.
  E. The port channel load-balancing algorithm does not match.
  A. The Cisco Nexus 7000 Series Switch needs to be configured with no lacp suspend-individual.
  B. The Cisco Nexus 5500 Series Switch is configured with channel-group mode on.

• Question 148:

  Which piece of information does the FSM provide?

  A. the current task and status
  B. a collection of blade statistics
  C. the last user to access the resource
  D. a list of faults currently suppressed by the Cisco UCS Manager
  A. the current task and status

• Question 149:

  Which option is the cause when a DIMM is marked as bad?

  A. More than 16000 errors were witnessed during test execution during BIOS.
  B. DIMM Blacklisting is enabled.
  C. The DIMM is missing.
  D. The bank of DIMMs is composed of different size DIMMs.
  A. More than 16000 errors were witnessed during test execution during BIOS.

• Question 150:

  After disassociating a service profile from a server, you attempt to associate the service profile to a different server. Which policy in the service profile can prevent it from being associated to a different server?

  A. SAN connectivity
  B. maintenance
  C. LAN connectivity
  D. power management
  D. power management
