Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 161:

  Your customer purchased a Cisco UCS C-Series server from another partner and plans to install VMware ESXi 6.0 on it. The server specifications are as follows: CPU Intel Xeon E5-2650 2.20GHz RAM 16GB DDr4 12G Mega RAID SAS Controller 4Kn SAS HDD Intel Ethernet Server Adapter I350-T4

  After many failed attempts to install the hypervisor, the customer asks you to troubleshoot the issue. Why is the VMware ESXi 6.0 installation failing?

  A. Cisco UCS C-Series server lack support for VMware ESXi 6.0
  B. The amount of RAM is too low for the server specifications
  C. The Intel Xeon E5-2650 2.20GHz CPU lacks support for virtualization
  D. VMware ESXi 6.0 lacks support for 4Kn SAS HDD
  D. VMware ESXi 6.0 lacks support for 4Kn SAS HDD

• Question 162:

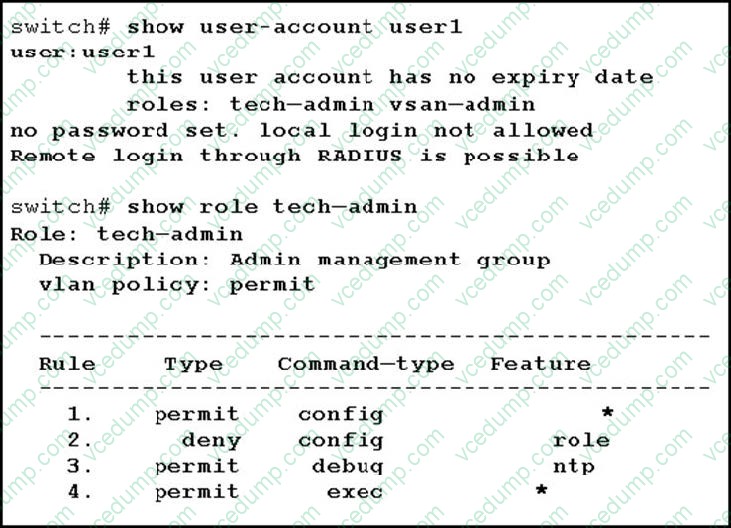

  Refer to the exhibit.



  A user named user1 is unable to create roles. What must you do to resolve the issue?

  A. Assign user1 to the network-admin role.
  B. Assign user1 to the tech-admin role only.
  C. Set the user password for user1
  D. Allow user1 to log in locally
  C. Set the user password for user1

• Question 163:

  Which three components are updated using the Host Upgrade Utility? (Choose three.)

  A. BIOS
  B. Network Adapter(s)
  C. Array Controller
  D. Cisco IMC
  E. LOM port
  F. UCSM
  G. Drive Firmware
  A. BIOS
  B. Network Adapter(s)
  D. Cisco IMC

• Question 164:

  Which three commands will show all the MAC addresses learned from remote sites in an OTV overlay? (Choose three.)

  A. show otv arp-nd-cache
  B. show otv route overlay
  C. show otv vlan
  D. show ip arp
  E. show mac address-table
  F. show otv site
  A. show otv arp-nd-cache
  B. show otv route overlay
  E. show mac address-table

• Question 165:

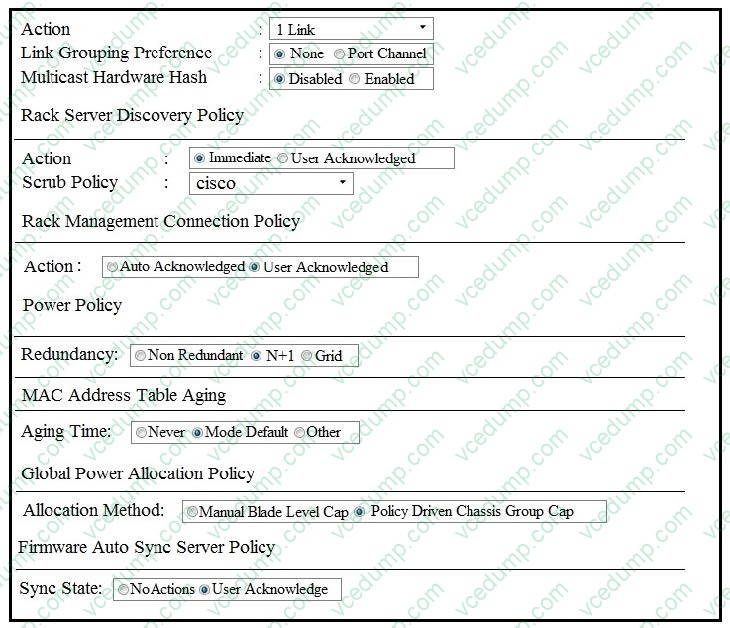

  Refer to the exhibit. You are attempting to integrate a Cisco UCS C-Series Rack-Mount Server and Cisco UCS Manager. The discovery fails to complete. What is a possible cause of the issue?



  A. The Rack Management Connection Policy is set to User Acknowledged
  B. The Rack Server Discovery Policy is set to immediate
  C. A Scrub Policy is configured on the Rack Server Discovery Policy
  D. The Firmware Auto Sync Server Policy is set to User Acknowledge
  A. The Rack Management Connection Policy is set to User Acknowledged

• Question 166:

  You configure two external Layer 3 networks on the same node by using BGP. The network fails to establish BGP adjacencies. Which action do you take to resolve the issue?

  A. Explicitly define the loopback addresses on the node.
  B. Use OSPF to create a peer that uses external networks.
  C. Configure the router ID to use the interface IP address used to establish the BGP connection.
  D. Configure the router ID to use the loopback interface.
  B. Use OSPF to create a peer that uses external networks.

• Question 167:

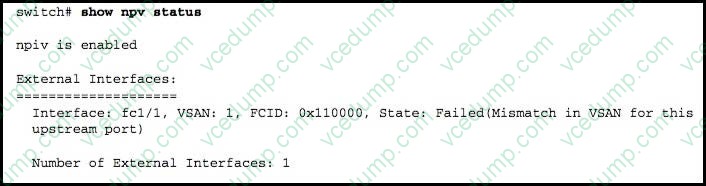

  Refer to the exhibit.



  A customer is having problems with NPV. Which of these is the cause of the problem?

  A. No server was requested or received by the FLOGI database.
  B. One external link must be up for server interface to be up.
  C. Internal links are down and must be up for the server interface to be up.
  D. VSANs are misconfigured on the upstream ports.
  E. VLANs are misconfigured on the upstream ports.
  D. VSANs are misconfigured on the upstream ports.

• Question 168:

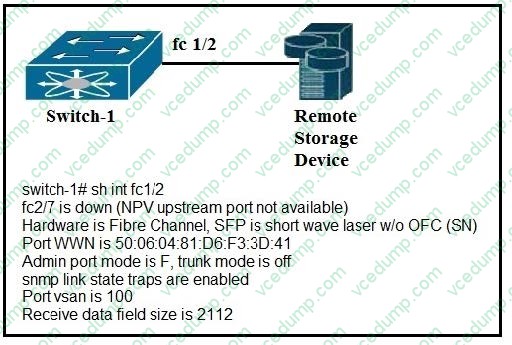

  Refer to the exhibit. A remote device connected to fc 1/2 fails to come online. Which do you configure to resolve the issue?



  A. remote and local ports to be in the correct VSAN
  B. local switch for NPV
  C. remote device for NPIV
  D. port on remote device as an f-port-channel
  A. remote and local ports to be in the correct VSAN

• Question 169:

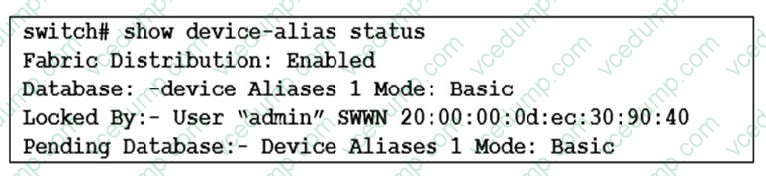

  Refer to the exhibit.



  What should you do to release the lock on the device alias database?

  A. Change the device alias mode to enhanced.
  B. Commit the pending changes.
  C. Ensure that the zone alias is configured.
  D. Disable the fabric distribution.
  B. Commit the pending changes.

• Question 170:

  When you attempt to allocate an interface from an N7K-M132XP-12 card to a VDC, you receive this error message:

  VDC_MGR-2-VDC_BAD: vdc_mgr: There has been a failure at gim (port_affected_list)

  Which is a possible cause of the error?

  A. You are not logged in to Admin VDC
  B. The line card does not have any free ports
  C. The interface is part of a dedicated port group
  D. There are not enough system resources
  C. The interface is part of a dedicated port group
