HP HPE6-A41 Online Practice Questions and Exam Preparation

HP HPE6-A41 Online Questions & Answers

• Question 1:

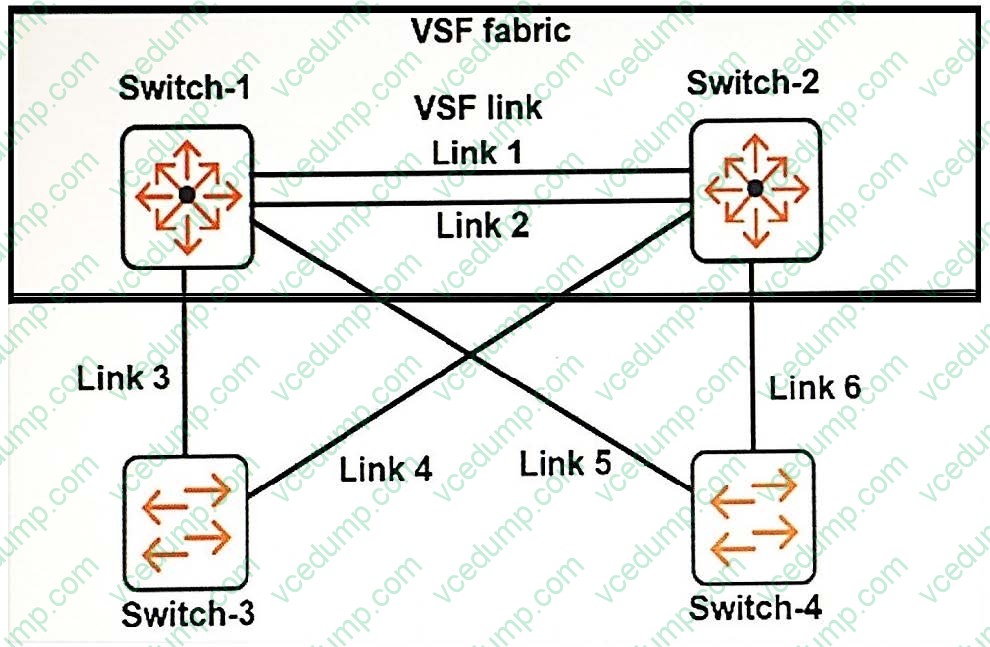

  Refer to the exhibit.



  Which links can be combined in the same link aggregation?

  A. Links 3 and 4
  B. Links 3 and 5
  C. Links 3 and 6
  D. Links 4 and 6
  A. Links 3 and 4

• Question 2:

  An ArubaOS switch is protected with a manager password. The network administrator wants to back up the configuration and apply it to other switches. The administrator wants the manager password to be available in both the saved and running configuration.

  To accomplish this goal, what must the administrator do before the configuration is backed up?

  A. Enter the password command with the plaintext option.
  B. Configure an SSH keypair on the switch.
  C. Enter the include-credentials command.
  D. Ensure that the server to which the configuration will be backed up uses SCP as opposed to TFTP.
  C. Enter the include-credentials command.

• Question 3:

  A company has an Aruba 5400R switch, switch 1, at the network core of its campus. This switch routes all traffic for the campus and is the RSTP root. The company now wants to add another Aruba 5400R switch to the core in order to enhance resiliency. The company wants to use the option that provides the best Layer 2 and Layer 3 resiliency and also the simplest setup.

  What should the administrator do to add the new 5400R switch?

  A. Add the new switch and migrate to MSTP with two instances.
  B. Add the new switch and set up OSPF on all switches.
  C. Add the new switch as a secondary root bridge in RSTP.
  D. Add the new switch as a standby member in a VSF fabric with switch 1.
  C. Add the new switch as a secondary root bridge in RSTP.

• Question 4:

  Which configuration settings for an ArubaOS switch must be deleted from a physical interface before it can be associated with a Virtual Switching Framework (VSF) link?

  A. Distributed trunking
  B. Virtual Router Redundancy Protocol (VRRP)
  C. Multi-Active Detection (MAD)
  D. Graceful OSPF (non-stop forwarding)
  A. Distributed trunking

• Question 5:

  Refer to the exhibit.

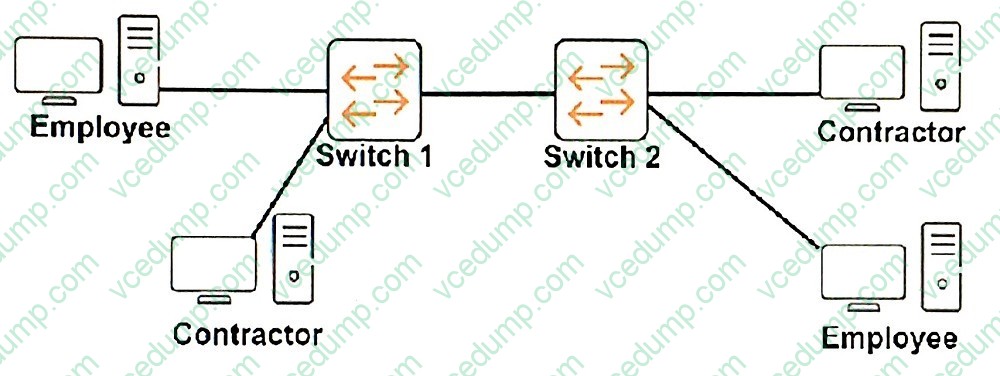

  The network administrator wants to place contractor clients and employee clients in different broadcast domains. How should the administrator achieve this goal?

  A. Add a router in between Switch 1 and Switch 2. Configure a different subnet on each router interface.
  B. Create two MSTP instances on each switch. Assign ports connected to contractor clients to one instance and ports connected to employee clients to the other instance.
  C. Assign the switch ports connected to contractor clients to one VLAN and ports connected to employee clients to another VLAN. Extend the VLANs between the switches.
  D. Create two device profiles. Apply one profile to ports connected to contractor clients, and apply the other profile to ports connected to employee clients.
  C. Assign the switch ports connected to contractor clients to one VLAN and ports connected to employee clients to another VLAN. Extend the VLANs between the switches.

• Question 6:

  Refer to the exhibit.

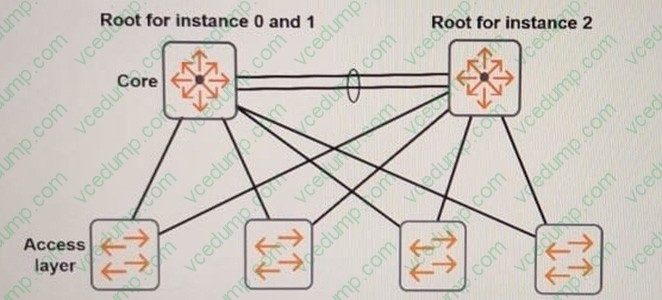

  MSTP is implemented in the topology shown in the exhibit, and all the switches are in the same region. The network administrator does not want to use the Internal Spanning Tree (IST) or instance 0 for production traffic. How many non-IST spanning tree instances does this network need in order to have effective load sharing on the uplinks from the access switches?

  A. two
  B. three
  C. four
  D. five
  C. four

• Question 7:

  A network administrator enters this command on an ArubaOS switch with IP routing enabled:



  This is the only IP route to 0.0.0.0/0 on the switch. What is the effect?

  A. The switch uses this route to route all traffic from 10.1.1.1.
  B. The switch uses this route for all traffic unless the traffic matches a route with a lower cost than 10.
  C. The switch uses this route for all traffic unless the traffic matches a route with a lower administrative distance than 10.
  D. The switch uses this route for all traffic that does not match a specific route in its routing table.
  D. The switch uses this route for all traffic that does not match a specific route in its routing table.

• Question 8:

  Refer to the exhibit.

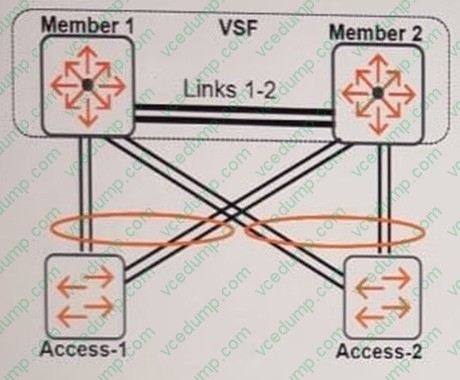

  A network administrator wants to set up a link aggregation between two switches, as shown in the exhibit. The link aggregation must meet these requirements:

  Protects against misconfiguration Can be configured with VLANs and other settings Which type of link aggregation should the administrator create?

  A. dynamic LACP
  B. static LACP
  C. manual (trunk)
  D. distributed (trunk)
  B. static LACP

• Question 9:

  A network administrator connects an Aruba Instant AP (IAP) to an ArubaOS switch but cannot connect the AP to the Instant cluster that exists. The administrator wants to check the IAP management IP address and software version from the ArubaOS switch CLI. To obtain this information, what should the administrator ensure is enabled on the switch and switch interfaces?

  A. SNMP
  B. ARP
  C. Device profiles
  D. LLDP
  D. LLDP

• Question 10:

  A network administrator configures OSPF in a network with ArubaOS switches. The administrator is concerned that a rogue device might connect to an access layer switch and introduce OSPF routes to the company's routing topology. The access VLANs do not contain additional routers.

  What should the administrator do so switches do not form an adjacency with rogue devices on the access VLANs?

  A. Implement BPDU filtering on interfaces assigned to these VLANs.
  B. Configure the VLANs as passive OSPF interfaces.
  C. Configure the interfaces with the highest OSPF DR priority.
  D. Apply outbound routing policies to filter routes on the VLANs.
  B. Configure the VLANs as passive OSPF interfaces.
