HP HP0-Y52 Online Practice Questions and Exam Preparation

HP HP0-Y52 Online Questions & Answers

• Question 81:

  A company wants to implement HP Intelligent Resilient Framework (IRF) at the access layer. Which switches could they use?

  A. two HP 5500 HI Series switches
  B. one HP 5412R zl2 Series switch and one HP 5800 Series switch
  C. one HP 5800 Series switch and one HP 5500 Series switch
  D. two HP 5406R zl2 Series switches
  A. two HP 5500 HI Series switches

• Question 82:

  A network administrator configures several HP Comware switches to be part of a single Intelligent Resilient Framework (IRF) virtual device. What is correct about the domain and member IDs in this configuration?

  A. The switches have different domain IDs and different member IDs.
  B. The switches have the same domain ID and the same member ID.
  C. The switches have the same domain ID and different member IDs.
  D. The switches have different domain IDs and the same member ID.
  C. The switches have the same domain ID and different member IDs.

• Question 83:

  In the HP Software-defined Networking (SDN) architecture, what connects the Application layer to the physical device or Infrastructure layer?

  A. HP Network Automation
  B. HP SDN Controller
  C. HP IMC Virtual Network Manager (VNM)
  D. HP IMC SDN Manager
  B. HP SDN Controller

• Question 84:

  Refer to the Exhibit. Exhibit: HP Comware switch configuration. [Comware] vlan 100 [Comware-vlan100] quit [Comware] vlan 200 [Comware-vlan200] quit [Comware] interface g1/0/22 [Comware-GigabitEthernet1/0/22] port link-type trunk [Comware-GigabitEthernet1/0/22] port trunk permit vlan 100 200 [Comware-GigabitEthernet1/0/22] quit A network administrator configures the Comware switch, as shown in the exhibit. The network administrator then connects a cable from the Comware's g1/0/22 interface to port 5 on an HP ProVision switch. Which configuration will

  successfully establish connection for VLAN 1, 100, and 200 between the two switches?

  A. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # vlan 100 tagged 5ProVision (config) # vlan 200 tagged 5
  B. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # interface 5 tagged 100 200
  C. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # interface 5 tagged 100ProVision (config) # interface 5 tagged 200
  D. ProVision (config) # vlan 100 200ProVision (config) # vlan 100 200 tagged 5
  A. ProVision (config) # vlan 100ProVision (config) # vlan 200ProVision (config) # vlan 100 tagged 5ProVision (config) # vlan 200 tagged 5

• Question 85:

  How does Open Shortest Path First (OSPF) help enterprises meet their high availability requirements, compared to RIP?

  A. OSPF is usually easier to troubleshoot if problems occur
  B. OSPF has a resilient, non-hierarchical design
  C. OSPF provides faster convergence.
  D. OSPF uses less CPU during routing updates
  C. OSPF provides faster convergence.

• Question 86:

  A network administrator establishes an aggregated link between an HP Comware and ProVision switch. VLAN 1 is untagged and VLANs 2 and 3 are tagged. The administrator configures these commands on the Comware switch:



  The administrator configures theses commands on the ProVision switch:



  Some of the links in the aggregated link become blocked.

  Which Comware configuration should the administrator apply to the Comware switch to resolve this issue?

  A. interface bridge-aggregation 1link-aggregation mode dynamic
  B. interface bridge-aggregation 1link-aggregation type lacp dynamic
  C. interface bridge-aggregation 1link-aggregation mode static
  D. interface bridge-aggregation 1link-mode type lacp
  A. interface bridge-aggregation 1link-aggregation mode dynamic

• Question 87:

  Which statement is true about wireless technologies?

  A. 802.11b/g uses an 802.11a-compatible frequency
  B. 802.11a has higher data rates than 802.11g does.
  C. 802.11n users MIMO technology to improve throughput
  D. 802.11a uses the less crowded 2.4 GHz range
  C. 802.11n users MIMO technology to improve throughput

• Question 88:

  Refer to the exhibit.



  MSTP is configured on all switches shown in the exhibit. The Comware-1, Comware-3, and Comware-4 switches are set up for OSPF. Comware-1 and Comware-4 switches fail to achieve neighbor adjacency. The network administrator analyzes the issue and determines that MSTP is blocking on port gigabitethernet1/0/2 on Comware-1.

  Which configuration should the administrator configure on ports g1/0/1 and g1/0/2 to allow Comware-1 to form the correct OSPF adjacencies with Comware-3 and Comware-4?

  A. interface g1/0/1spanning-tree bpdu-filterquitinterface g1/0/2spanning-tree bpdu-filterquit
  B. interface g1/0/1undo stp enablequitinterface g1/0/2undo stp enablequit
  C. interface g1/0/1stp link-mode routequitinterface g1/0/2stp link-mode routequit
  D. interface g1/0/1stp bpdu-filterquitinterface g1/0/2stp bpdu-filterquit
  A. interface g1/0/1spanning-tree bpdu-filterquitinterface g1/0/2spanning-tree bpdu-filterquit

• Question 89:

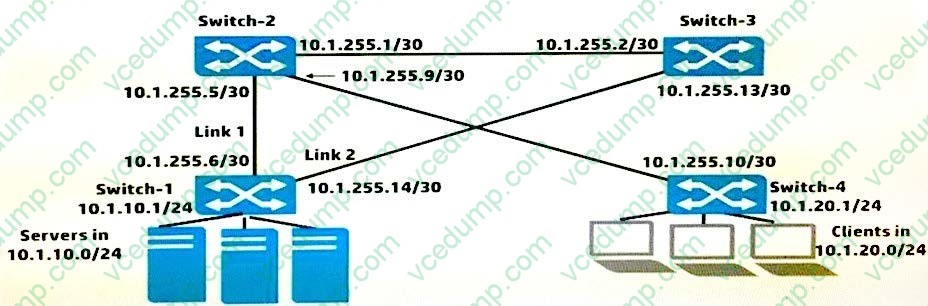

  Refer to the exhibits. Exhibit 1

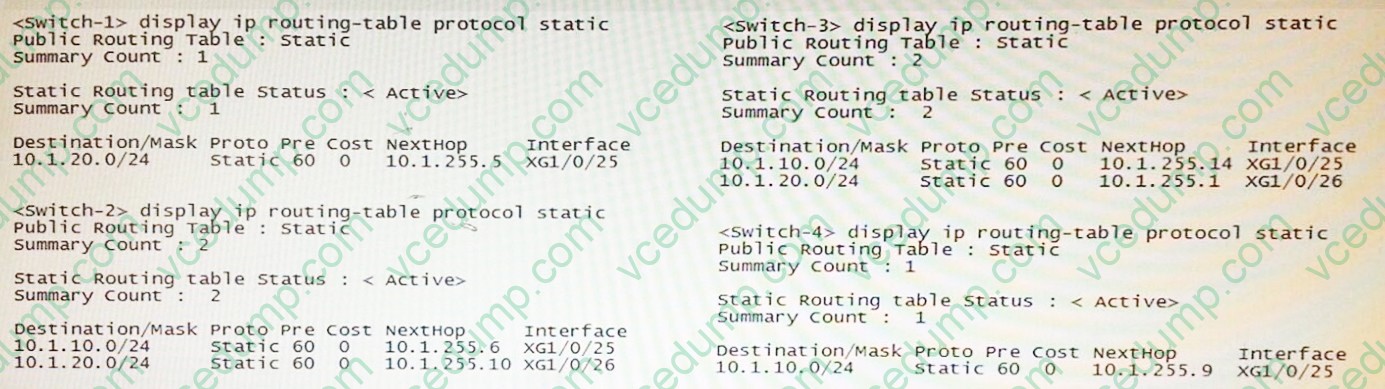

  Exhibit 2



  All of the switches in Exhibit 1 are routing switches. Exhibit 2 shows the routes configured on these switches. The direct (connected) routes are not shown, but assume that links are configured with the IP addresses shown in Exhibit 1. The network administrator wants to protect communications between clients and servers in case Link 1 fails. What should the administrator do to protect these communications in this failover situation?

  A. Add a redundant route to 10.1.10.0/24 on Switch-4 and a redundant route to 10.1.20.0/24 on Switch-1.
  B. Add a redundant route to 10.1.20.0/24 on Switch-1 and a redundant route to 10.1.20.0/24 on Switch-2.
  C. Add a redundant route to 10.1.10.0/24 on Switch-1 and a redundant route to 10.1.20.0/24 on Switch-4.
  D. Add a redundant route to 10.1.20.0/24 on Switch-1 and a redundant route to 10.1.10.0/24 on Switch-2.
  A. Add a redundant route to 10.1.10.0/24 on Switch-4 and a redundant route to 10.1.20.0/24 on Switch-1.

• Question 90:

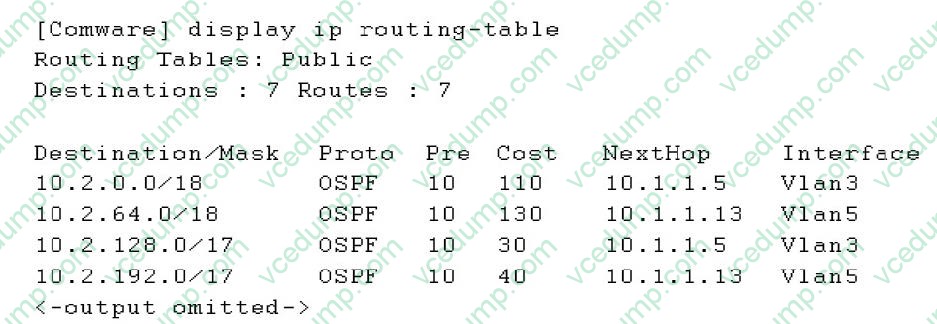

  Refer to the exhibit.



  The exhibit shows partial output of the HP Comware display ip routing-table command. Note the Pre or preference column.

  On an HP ProVision switch, what is the corresponding term used for the Pre column in the Comware output shown in the exhibit?

  A. protocol ranking
  B. administrative distance
  C. cost
  D. metric
  B. administrative distance
