HP HP Certifications HP0-Y52 Questions & Answers

• Question 71:

  A customer is implementing a network using HP ProVision switches. Which default setting applies to the ProVision switches?

  A. All ports are disabled.

  B. Routing is enabled.

  C. Telnet is enabled.

  D. A static IP address is assigned to VLAN 1.

  Correct Answer: C

• Question 72:

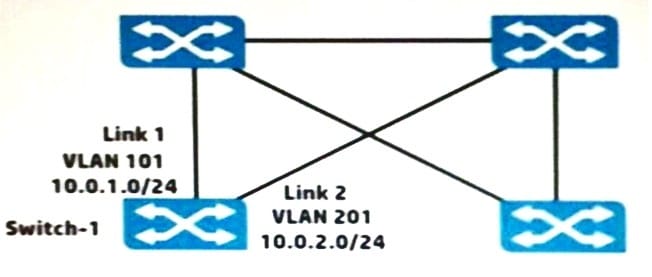

  Refer to the exhibit.



  Switch-1 is an HP ProVision switch.

  A network administrator wants Switch-1 to run Open Shortest Path First (OSPF) and create neighbor relationship on Links 1 and 2. What should the administrator do to accomplish this?

  A. Access the VLAN context for the VLANs assigned to Links 1 and 2, and enable OSPF.

  B. Access the global configuration context, and create OSPF routes to 10.0.1.0/24 and 10.0.2.0/24.

  C. Access the physical interface context for the Link 1 and 2 ports, and enable OSPF.

  D. Access the OSPF area 0 context and specify the networks on Links 1 and 2 (10.0.1.0 0.0.0.255 and 10.0.2.0 0.0.0.255).

  Correct Answer: B

• Question 73:

  Which statement correctly defines the management capabilities of an HP MultiService Mobility (MSM) access point (AP)?

  A. The AP only supports controlled mode.

  B. The AP operates in autonomous mode by default, but can be changed to controlled mode.

  C. The AP operates in controlled mode by default, but can be changed to autonomous mode.

  D. The AP only supports autonomous mode.

  Correct Answer: C

• Question 74:

  What is one feature that MSTP has that RSTP does not have?

  A. load-sharing on redundant links

  B. alternate root ports

  C. multiple designated ports per segment

  D. one set of BPDUs per VLAN

  Correct Answer: A

• Question 75:

  Where is priority information stored in an Ethernet frame?

  A. 802.1Q VLAN tag

  B. IP Precedence field

  C. DSCP field

  D. TOS tag

  Correct Answer: A

• Question 76:

  Refer to the exhibit.

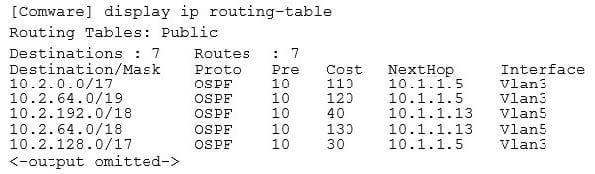

  Examine the partial HP switch output shown in the exhibit. Based on this output, if the switch receives a packet with a destination IP address of 10.2.90.87, which entry in the routing table would the switch use to forward the packet?

  A. 10.2.128.0/17

  B. 10.2.0.0/17

  C. 10.2.64.0/19

  D. 10.2.64.0/18

  Correct Answer: C

• Question 77:

  A company has a network comprised of HP Comware and ProVision switches. A network administrator purchases HP Intelligent Management Center (IMC) to manage the switches in this network. Which step must the administrator perform on the Comware switches but not on the ProVision switches?

  A. Configure SNMP traps.

  B. Configure VTY interface authentication.

  C. Define SNMPv2 community strings or SNMPv3 groups and users.

  D. Configure telnet or SSH.

  Correct Answer: B

• Question 78:

  A network administrator enters this command on an HP ProVision switch with IP routing enabled:

  ip route 0.0.0.0/0 10.1.1.1 metric 10 distance 10

  This is the only IP route to 0.0.0.0/0 on the switch. What is the effect?

  A. The switch uses this route for all traffic that does not match a specific route in its routing table.

  B. The switch uses this route for all traffic unless the traffic matches a route with a lower administrative distance than 10.

  C. The switch uses this route to route all traffic from 10.1.1.1.

  D. The switch uses this route for all traffic unless the traffic matches a route with a lower cost than 10.

  Correct Answer: C

• Question 79:

  An administrator is configuring OSPF on an HP ProVision switch. What is one of the steps that the administrator must take?

  A. The administrator must create an OSPF area before assigning a VLAN interface to that area.

  B. The administrator must set a global router ID before enabling OSPF.

  C. The administrator must set an OSPF router ID before enabling OSPF.

  D. The administrator must assign a VLAN interface its IP address before specifying the corresponding network in an OSPF area.

  Correct Answer: A

• Question 80:

  Refer to the exhibit.

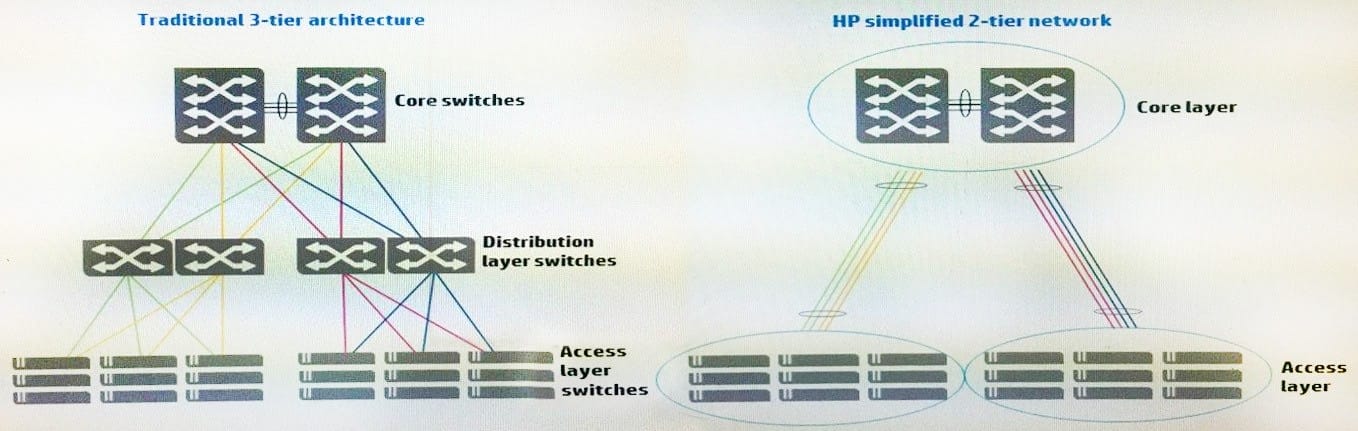

  The topology shown on the left of the exhibit illustrates a traditional three-tier architecture. Which technology allows a company to simplify their network with a two-tier topology as illustrated on the right of the exhibit.

  A. Intelligent Resilient Framework

  B. Software-defined Networking

  C. Multiple Spanning Tree Protocol

  D. Equal Cost Multi-Pathing

  Correct Answer: A
