HP HP0-Y52 Online Practice Questions and Exam Preparation

HP HP0-Y52 Online Questions & Answers

• Question 111:

  Refer to the exhibit.



  Examine the HP Comware switch output shown in the exhibit. Based on this output, what is a correct description of the IRF topology with which this switch is associated?

  A. This is a failed IRF daisy chain topology.
  B. This is a functioning IRF chain topology.
  C. This is a functioning IRF ring topology.
  D. This is a failed IRF ring topology.
  C. This is a functioning IRF ring topology.

• Question 112:

  A network administrator executes these commands on an HP ProVision switch: ProVision(config)# ip route 10.1.100.0/24 10.1.1.1 ProVision(config)# ip route 10.1.200.0/24 10.1.1.1 The administrator attempts to ping a device in the 10.1.100.0/24 network from a client attached to the switch and is unable to ping it. Assume there are no firewalls and all other settings are correct. What must the administrator configure on

  the ProVision switch to get a response?

  A. ProVision(config)# ip routing
  B. ProVision(config)# spanning-tree disable
  C. ProVision(config)# routing enable
  D. ProVision(config)# routingProVision(config-router)# ip enable
  A. ProVision(config)# ip routing

• Question 113:

  An endpoint device requests an address by using DHCP. What is the first message the client sends to initiate this process?

  A. DHCPREQUEST
  B. DHCPQUERY
  C. DHCPDISCOVER
  D. DHCPOFFER
  C. DHCPDISCOVER

• Question 114:

  What does the traceroute command identify on an HP ProVision switch?

  A. each Layer 3 device between the switch and a destination
  B. the path to each router connected to the switch
  C. debug output tracing entries to the routing table
  D. each physical device between the switch and a destination
  B. the path to each router connected to the switch

• Question 115:

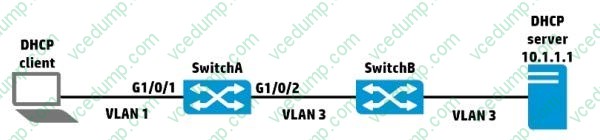

  Refer to the Exhibit.



  A network administrator needs to configure DHCP on SwitchA. Assume that SwitchA is an HPE Comware switch and is using the default settings for DHCP. The administrator configures the following information:



  The administrator then has the DHCP client try to acquire addressing information, but the process fails. What should the administrator do to solve this problem?

  A. Execute the routing command on SwitchA.
  B. Execute the dhcp enable command on SwitchA.
  C. Configure DHCP relay on SwitchB.
  D. Enable DHCP Snooping on SwitchA.
  B. Execute the dhcp enable command on SwitchA.

• Question 116:

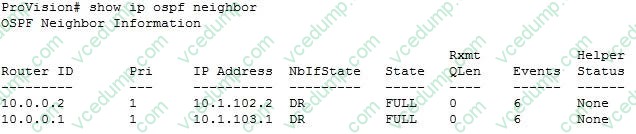

  Refer to the exhibit.



  Based on the output shown in this exhibit, which statement is true about the 10.0.0.2 neighbor?

  A. The neighbor is communicating with this switch, but it cannot hold any more routes in its database.
  B. The neighbor is communicating with this switch, and they have exchanged all topology information.
  C. The neighbor has mismatched settings and cannot exchange information with this switch.
  D. The neighbor is rejecting communications because it already has its maximum number of neighbors.
  B. The neighbor is communicating with this switch, and they have exchanged all topology information.
