HP HP Certifications HP0-Y52 Questions & Answers

• Question 11:

  Refer to the exhibit.

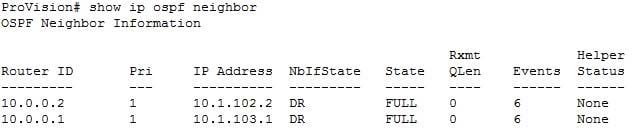

  Based on the output shown in this exhibit, which statement is true about the 10.0.0.2 neighbor?

  A. The neighbor is communicating with this switch, but it cannot hold any more routes in its database.

  B. The neighbor is communicating with this switch, and they have exchanged all topology information.

  C. The neighbor has mismatched settings and cannot exchange information with this switch.

  D. The neighbor is rejecting communications because it already has its maximum number of neighbors.

  Correct Answer: B

• Question 12:

  Refer to the exhibit.



  Which endpoint or endpoints receive broadcast ARP requests sent by EndpointA?

  A. EndpointB, EndpointC, and EndpointD

  B. EndpointB only

  C. EendpointB and EndpointC only

  D. EndpointC only

  Correct Answer: D

• Question 13:

  Refer to the exhibit.

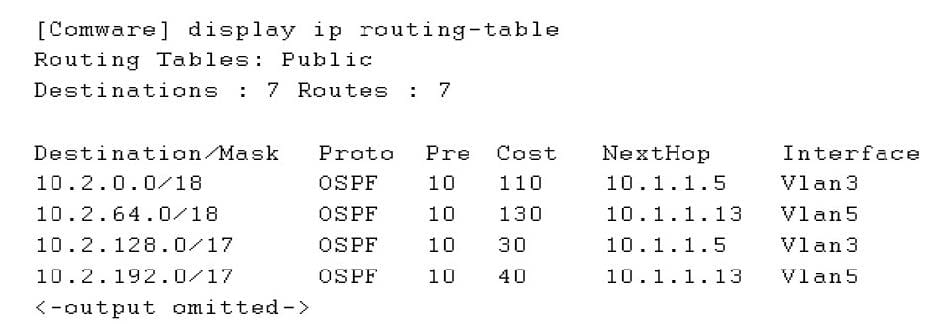

  The exhibit shows partial output of the HP Comware display ip routing-table command. Note the Pre or preference column.

  On an HP ProVision switch, what is the corresponding term used for the Pre column in the Comware output shown in the exhibit?

  A. protocol ranking

  B. administrative distance

  C. cost

  D. metric

  Correct Answer: B

• Question 14:

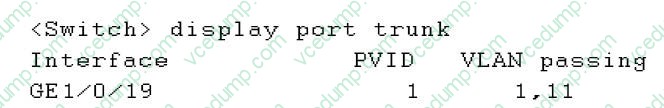

  Which HP Comware term defines the untagged VLAN on a trunk port that is commonly used for network management traffic?

  A. default VLAN

  B. port VLAN identifier

  C. management VLAN

  D. access VLAN tag

  Correct Answer: B

• Question 15:

  Refer to the exhibit.

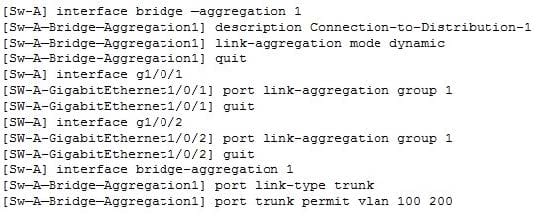

  Exhibit: HP Comware switch configuration



  Based on the exhibit output, which type of link aggregation is this?

  A. dynamic trunk protocol

  B. static trunking

  C. dynamic port group

  D. static LACP

  Correct Answer: C

• Question 16:

  A network administrator plans to execute show commands as well as make conjuration changes. Which HP ProVision privilege role must be assigned to an account for the administrator to do this?

  A. Operator

  B. Administrator

  C. Superuser

  D. Manager

  Correct Answer: D

• Question 17:

  On an HP Comware switch, which view must an administrator access in order to execute the debug command?

  A. Manager

  B. Operator

  C. System

  D. User

  Correct Answer: D

• Question 18:

  Which settings enable a network administrator to use terminal emulation software to interface with an HP Comware switch's auxiliary port?

  A. 9600 bps, 7 data bits, 1 stop bit, no parity, flow control

  B. 14,200 bps, 8 data bits, 1 stop bit, parity, flow control

  C. 9600 bps, 8 data bits, 1 stop bit, no parity, no flow control

  D. 9600 bps, 8 data bits, 1 stop bit, parity, flow control

  Correct Answer: C

• Question 19:

  A customer has an HP ProVision switch capable of Layer 3 forwarding: however, Layer 3 forwarding is disabled. The switch has an IP address in the management VLAN, where the default gateway is 10.1.1.1, which ProVision command should the network administrator use so the ProVision switch can access the Intelligent Management Center (IMC) server in a different VLAN?

  A. IP default-gateway 10.1.1.1

  B. IP route 0.0.0.0 255.255.255.255 10.1.1.1

  C. Default-route 10.1.1.1

  D. IP route 0.0.0.0.0.0.0.0 10.1.1.1

  Correct Answer: D

  A default route is a special static route that applies to all traffic. Typically, when the router receives a packet that it does not know how to forward, it drops it. A default route allows the router to forward all such packets toward the destination

  most likely to be able to route them.

  To configure a default route, enter a route to a destination address of all zeros with an all- zero subnet mask. The all-zero subnet mask indicates to the router that a packet's IP address does not have to match any of the destination address

  bits in order for the route to be valid. Because the router always matches traffic to the most specific route, it will only use the default route for traffic that would otherwise be dropped. To configure the default route, move to the global

  configuration mode context and enter this command:

  Syntax: ip route 0.0.0.0 [0.0.0.0 | /0] []

  The ProCurve Secure Router allows you to enter the default route in CIDR notation.

• Question 20:

  What is one difference between Network Segment-based discovery and ARP-based discovery on HP Intelligent Management Center (IMC)?

  A. With Network Segment-based discovery, IMC can discover multiple devices. With ARP- based discovery, IMC can only discover one device; the administrator must re-run ARP- based discovery to discover a second device.

  B. With Network Segment-based discovery, network device login settings must match login settings on IMC. With ARP-based discovery, only ARP settings must match.

  C. With Network Segment-based discovery, network device SNMP settings must match SNMP settings on IMC. With ARP-based discovery, only ARP settings must match.

  D. With Network Segment-based discovery, the administrator enters a range of IP addresses to discover. With ARP-based discovery, the administrator enters one seed IP address, and IMC dynamically learns more IP addresses to discover.

  Correct Answer: D
