HP HP0-Y52 Online Questions & Answers

• Question 61:

  Which statement is true about the default configuration on an HP ProVision switch?

  A. Spanning tree is disabled.
  B. LACP is used when a BAGG interface is created.
  C. IRF is enabled.
  D. RSTP is the default spanning tree mode.
  A. Spanning tree is disabled.

• Question 62:

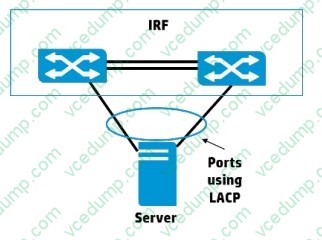

  Refer to Exhibit.



  The server shown in the exhibit requires redundant links, and The link aggregation should use LACP. What should the administrator configure on the 1RF virtual switch?

  A. a bridge aggregation interface that uses static link aggregation mode
  B. a bridge aggregation interface that uses dynamic link aggregation mode
  C. two interfaces that are set to trunk for the port-link type
  D. two interfaces that are set to hybrid for the port-link type
  B. a bridge aggregation interface that uses dynamic link aggregation mode

• Question 63:

  Which command can a network administrator execute on an HP Comware switch to manage configuration files?

  A. delete
  B. startup-default
  C. write file
  D. write memory
  A. delete

• Question 64:

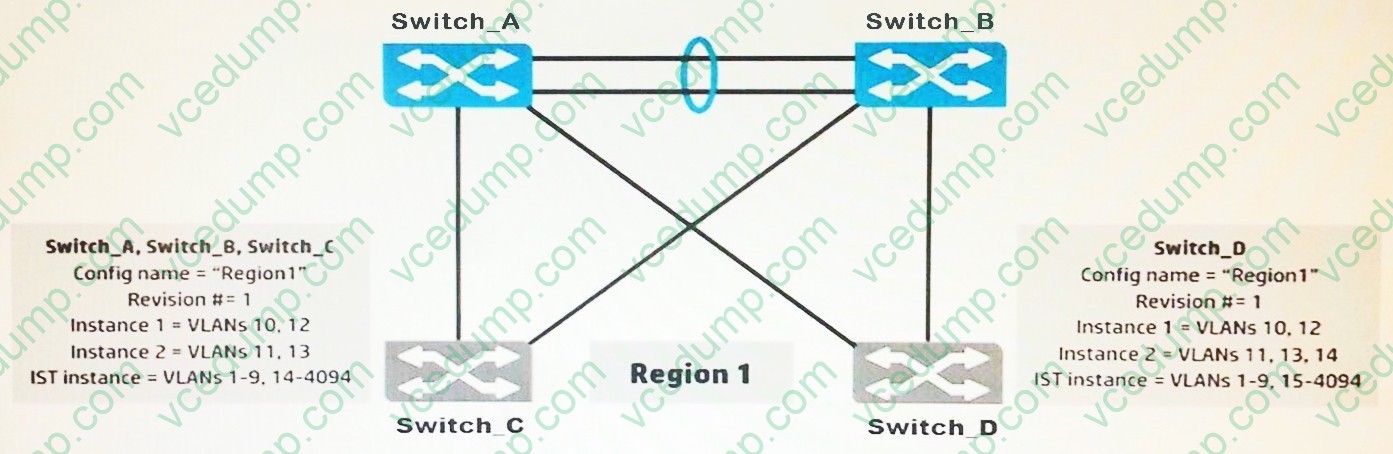

  Refer to the Exhibit.



  Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2. How does this affect the Multiple Spanning Tree Protocol (MSTP) topology?

  A. Load sharing is lost; one of the uplinks is blocked for all traffic on Switch_D.
  B. All connectivity is lost; both uplinks are blocked on Switch_D.
  C. A Layer 2 loop exists and will cause sporadic connectivity issues.
  D. Load sharing is lost; one of the uplinks is blocked for all traffic on Switch_C and Switch_D.
  B. All connectivity is lost; both uplinks are blocked on Switch_D.

• Question 65:

  Which term refers to aggregated links on HP ProVision switches?

  A. smart linking
  B. meshing
  C. EtherChannels
  D. trunking
  D. trunking

• Question 66:

  A network administrator needs to restrict access to the console port of an HPE Comware switch. When a user connects to the console port and opens a terminal session, the switch should prompt the user for a password. How should the administrator configure user interfaces on the Comware switch?

  A. Set the authentication mode to password on the VTY 0 15 interfaces and then set the password on the VTY 0 15 interfaces.
  B. Set the authentication mode to scheme on the VTY 0 15 interfaces and then set the password globally.
  C. Set the authentication mode to password on the AUX 0 interface and then set the password on the AUX 0 interface.
  D. Set the authentication mode to scheme on the AUX 0 interface and then set the password globally.
  C. Set the authentication mode to password on the AUX 0 interface and then set the password on the AUX 0 interface.

• Question 67:

  A customer has an HP ProVision switch capable of Layer 3 forwarding: however, Layer 3 forwarding is disabled. The switch has an IP address in the management VLAN, where the default gateway is 10.1.1.1, which ProVision command should the network administrator use so the ProVision switch can access the Intelligent Management Center (IMC) server in a different VLAN?

  A. IP default-gateway 10.1.1.1
  B. IP route 0.0.0.0 255.255.255.255 10.1.1.1
  C. Default-route 10.1.1.1
  D. IP route 0.0.0.0.0.0.0.0 10.1.1.1
  D. IP route 0.0.0.0.0.0.0.0 10.1.1.1

• Question 68:

  Which methods can a network administrator use to upgrade the operating system of an HP ProVision switch? (Select two.)

  A. USB
  B. FTP
  C. SCP
  D. SFTP
  A. USB
  D. SFTP

• Question 69:

  Refer to the exhibit.



  All four switches run MSTP. Switch_A, Switch_B, and Switch_C are configured with this MSTP information:

  -Config name = "Region 1"

  -Revision number= 1

  -

  Instance 1 = VLANs 10, 12

  -

  Instance 2 = VLANs 11, 13

  -IST instance = VLANs 1-9, 14-4094

  Switch_D is configured with this MSTP information:

  -Config name = "Region1"

  -Revision number= 1

  -

  Instance 1 = VLANs 10, 12

  -

  Instance 2 = VLANs 11, 13, 14, 15

  -

  IST instance = VLANs 1-9, 16-4094

  Based on this information, what is the result of this MSTP configuration?

  A. Switch_D load balances VLAN traffic to Switch_A and Switch_B.
  B. Switch_D disables the links to Switch_A and Switch_B.
  C. Switch_D becomes a root switch.
  D. Switch_D causes a loop.
  A. Switch_D load balances VLAN traffic to Switch_A and Switch_B.

• Question 70:

  What is the purpose of a management VLAN on an HP Provision switch?

  A. To prevent IP addresses from being configured on any VLANs other than the management VLAN
  B. To provide an administrative-only marker, label, or alias for the VLAN where IMC is installed
  C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface
  D. To limit remote access connections by specifying the IP addresses that can establish connections
  C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface
