Microsoft 70-680 Online Practice Questions and Exam Preparation

Microsoft 70-680 Online Questions & Answers

• Question 541:

  You have a Windows image (WIM) file that contains an image of Windows 7. The WIM file is 2 GB.

  You need to ensure that you can copy the image to CD.

  What should you do?

  A. Run Imagex.exe and specify the /split parameter.
  B. From the properties of the WIM file, enable compression.
  C. Run Dism.exe and specify the /cleanup-wim parameter.
  D. Right-click the WIM file, point to Send To and then click Compressed (zipped) Folder.
  A. Run Imagex.exe and specify the /split parameter.

  ---

  Imagex

  ImageX is a command-line tool that enables original equipment manufacturers (OEMs) and corporations to capture, to modify, and to apply file-based disk images for rapid deployment. ImageX works with Windows image (.wim) files for

  copying to a network, or it can work with other technologies that use .wim images, such as Windows Setup, Windows Deployment Services (Windows DS), and the System Management Server (SMS) Operating System Feature Deployment

  Pack.

  /split image_filedest_filesize

  Splits an existing .wim file into multiple read-only split .wim files (.swm).

  image_file

  Specifies the name and location of the .wim file to split.

  dest_file

  Specifies the file path of the split files.

  Size

  Specifies the maximum size in megabytes (MB) for each created file.

  This option generates the .swm files into the specified directory, naming each file the same as the specified image_file, but with an appended number and the .swm file-name extension. For example, if you choose to split a file named

  Data.wim, this option creates a Data.swm file, a Data2.swm file, a Data3.swm file, and so on, defining each portion of the split .wim file.

• Question 542:

  You have a computer that runs Windows 7.

  You need to configure system image backups to meet the following requirements:



  Automatically create a system image every day without user intervention



  Retain multiple copies of the system image

  Which type of backup destination should you use?

  A. External hard disk drive
  B. Network location
  C. USB flash drive
  D. Writeable DVD
  A. External hard disk drive

  ---

  Backup And Restore in Windows 7 supports backing up data files to CD-ROM, DVD-ROM, hard disk (including VHD files), or a network location. You can use Backup And Restore to write a System Image backup to an internal hard disk drive, an external hard disk drive (if formatted with the NTFS file system) and a network location. You cannot use Backup And Restore to write a System Image backup to a USB flash drive, a writable DVD, or a tape drive.

  You need to schedule client computers that store important data for automatic backup. After you first configure automatic file backup using the Backup And Restore console, Windows 7 regularly backs up your files. The first time a backup is

  performed, a full backup is done, including all important user documents.

  Subsequent backups are incremental, backing up only changed files. Older backups are discarded if the disk begins to run out of space.

  Scheduling Backups with the Backup And Restore Console

  Windows 7 Backup uses shadow copies to take a snapshot of your files, allowing the backup to completely back up files even if they are open. Backups are configured and scheduled by using the Backup And Restore console under System

  And Security in Control Panel. You can select the following types of backup destination:

  An external hard drive

  External hard drives are more expensive to purchase than internal hard drives, although you need to balance this against the cost of fitting the internal drive. They can be removed and stored in a secure location. However, they are typically

  slower than internal hard drives and tend to be less reliable, mainly because they are by default formatted using FAT rather than NTFS. You cannot use an external hard drive for a System Image backup unless you convert its filing system to

  NTFS. Because it is easily removable, it is more likely that an external hard drive will be missing when a scheduled backup is required.

  Network location

  If your computer is short of disk space, you can back it up to a network location on another computer or network storage. Note that this is not the same as the situation in a production environment, where users' Documents libraries are stored

  on a file server and an administrator backs up the file server. You can save your backups on a network location only on computers running Windows 7 Professional, Windows 7 Ultimate, and Windows 7 Enterprise, and you need to provide

  credentials so that Windows Backup can access the network. Bear in mind that you can save your backups on a network location only on computers running Windows 7 Professional, Windows 7 Ultimate, and Windows 7 Enterprise.

  USB flash drives

  Flash drive memory is considerably less expensive and flash drive devices support much more memory than they did three or even two years ago. Nevertheless, they typically support a lot less memory than hard drives and quickly fill up if

  you needed to keep copies of older backups. You cannot save System Image backups to flash memory. A flash drive must be able to hold more than 1 GB if you want to save a backup on it. Flash drives can be stored offsite and are small

  and easy to carry. They are also easy to lose.

• Question 543:

  You administer computers that have Windows 7 and Internet Explorer 8 installed. You want to log on to one of the computers and access a web-based management application that runs on a server by using Internet Explorer.

  You need to ensure that any data about your browser session is not saved on the computer.

  What should you do?

  A. Disable Internet Connection Sharing.

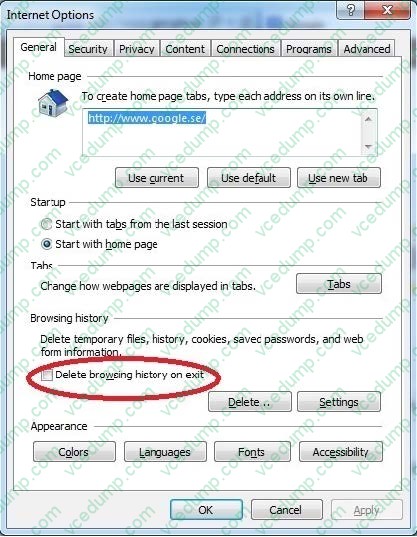

  B. From Internet Options, select Delete browsing history on exit.
  C. Start the Microsoft Network Access Protection service.
  D. From the Safety drop-down menu, configure InPrivate Filtering.
  B. From Internet Options, select Delete browsing history on exit.

  ---



• Question 544:

  You use a portable computer that has Windows 7 installed. The computer has a single hard disk drive and a dual-core CPU.

  You need to analyze the performance of the computer to meet the following requirements:



  Include the CPU, Memory, and Disk subsystems.



  Display real-time performance.



  Obtain a list of users who have logged on by using the same tool.

  What should you do?

  A. Run powercfg.exe.
  B. Run the Windows Experience Index.
  C. Configure Event Viewer subscriptions.
  D. Open Task Manager.
  E. Open System Properties, and configure performance settings.
  F. Open System Properties, and configure environment variables.
  G. Open System Properties, and configure user profiles settings.
  H. Open System Properties, and configure the page file settings.
  I. Open Performance Monitor, and configure a Data Collector Set.
  J. Open Performance Monitor, and customize the System Monitor view.
  D. Open Task Manager.

• Question 545:

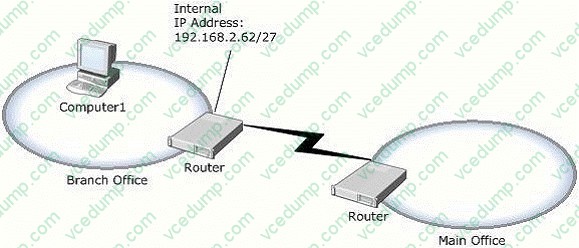

  Your company has a main office and a branch office. The relevant portion of the network is configured as shown in the exhibit. (Click the Exhibit button.)



  In the branch office, you deploy a new computer named Computer1 that runs Windows 7.

  You need to assign an IP address to Computer1.

  Which IP address should you use?

  A. 192.168.2.30
  B. 192.168.2.40
  C. 192.168.2.63
  D. 192.168.2.65
  B. 192.168.2.40

  ---

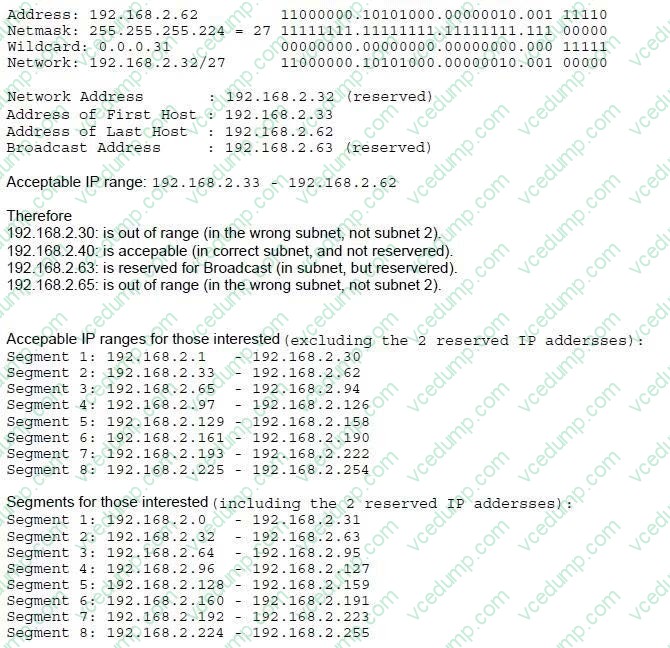

  Internal IP Adress of router is 192.168.2.62/27 Leaves 5 bits for range = 32 addresses (including the 2 reserved addresses) Subnet Mask = 255.255.255.224



• Question 546:

  You have an offline virtual hard disk (VHD) that contains an installation of Windows 7 Home Premium.

  You need to upgrade the installation to Windows 7 Ultimate by using the minimum amount of administrative effort.

  What should you do?

  A. From a computer that runs Windows 7, attach the VHD. Run Imagex.exe and specify the /apply parameter.
  B. From a computer that runs Windows 7, attach the VHD. Run Dism.exe and specify the /set- edition parameter.
  C. Deploy the VHD to a new computer and upgrade the computer to Windows 7 Ultimate. Run Dism.exe and specify the /image parameter.
  D. Deploy the VHD to a new computer and upgrade the computer to Windows 7 Ultimate. Run Imagex.exe and specify the /capture parameter.
  B. From a computer that runs Windows 7, attach the VHD. Run Dism.exe and specify the /set- edition parameter.

  ---

  Dism Deployment Image Servicing and Management (DISM) is a command-line tool used to service Windows?images offline before deployment. You can use it to install, uninstall, configure, and update Windows features, packages, drivers, and international settings. Subsets of the DISM servicing commands are also available for servicing a running operating system. Windows 7 introduces the DISM command-line tool. You can use DISM to service a Windows image or to prepare a Windows PE image. DISM replaces Package Manager (Pkgmgr.exe), PEimg, and Intlcfg in Windows Vista, and includes new features to improve the experience for offline servicing.

  You can use DISM to perform the following actions:

  -Prepare a Windows PE image.

  -Enable or disable Windows features within an image.

  -Upgrade a Windows image to a different edition.

  -

  Add, remove, and enumerate packages.

  -

  Add, remove, and enumerate drivers.

  - Apply changes based on the offline servicing section of an unattended answer file.

  -Configure international settings.

  -Implement powerful logging features.

  -

  Service operating systems such as Windows Vista with SP1 and Windows Server 2008.

  -

  Service a 32-bit image from a 64-bit host and service a 64-bit image from a 32-bit host.

  -Service all platforms (32-bit, 64-bit, and Itanium).

  -Use existing Package Manager scripts.

  Use the /Set-Edition option without the /ProductKey option to change an offline Windows image to a higher edition. Use /Get-TargetEditions to find the edition ID. Use the /Set-Edition option with the /ProductKey option only to change a running Windows Server?2008 R2 operating system to a higher edition.

• Question 547:

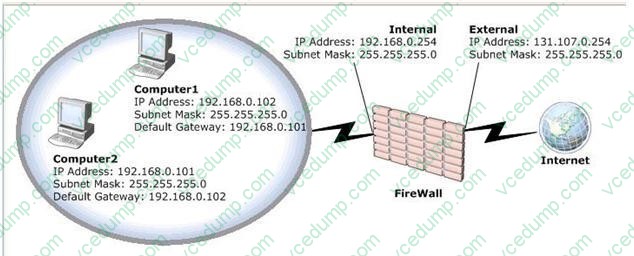

  You have two computers named Computer1 and Computer2 that run Windows 7. The network is configured as shown in the exhibit. (Click the Exhibit button.)

  You need to ensure that both computers can connect to the Internet.

  What should you do?

  Exhibit:



  A. On both computers, set the subnet mask to 255.255.255.255.
  B. On both computers, set the default gateway to 192.168.0.254.
  C. On both computers, set the default gateway to 131.107.0.254.
  D. On the internal interface of the firewall and on both computers, set the subnet mask to 255.255.0.0.
  B. On both computers, set the default gateway to 192.168.0.254.

  ---

  Need to make the default gateways for both computers match the Internal IP Address of the Firewall.

• Question 548:

  A company has client computers that run Windows 7. You create an AppLocker policy for the client computers.

  You need to ensure that the AppLocker policy is enforced after the computer restarts.

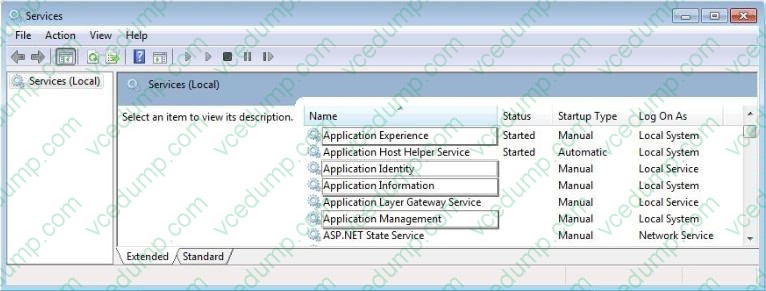

  Which service should you modify? (To answer, select the appropriate setting or settings in the work area.)

  Hot Area:





• Question 549:

  You have two computers named Computer1 and Computer2. Computer1 runs Windows Vista. Computer2 runs Windows 7.

  Computer1 has a custom application installed. You create a custom XML file named app1.xml that contains the migration settings for the application.

  You need to migrate the configuration and application data for the custom application from Computer1 to Computer2.

  What should you do?

  A. On Computer1, run Loadstate.exe /l:app1. On Computer2, run Scanstate.exe /l:app1.xml.
  B. On Computer1, run Scanstate.exe /i:app1.xml. On Computer2, run Loadstate.exe /i:app1.xml.
  C. On Computer1, run Loadstate.exe /keyfile:app1.xml. On Computer2, run Loadstate.exe /keyfile:app1.xml.
  D. On Computer1, run Scanstate.exe /genconfig:app1.xml. On Computer2, run Loadstate.exe /config:app1.xml.
  B. On Computer1, run Scanstate.exe /i:app1.xml. On Computer2, run Loadstate.exe /i:app1.xml.

  ---

  User State Migration Tool USMT 4.0 is a command-line utility that allows you to automate the process of user profile migration. The USMT is part of the Windows Automated Installation Kit (WAIK) and is a better tool for performing a large number of profile migrations than Windows Easy Transfer. The USMT can write data to a removable USB storage device or a network share but cannot perform a direct side-by-side migration over the network from the source to the destination computer. The USMT does not support user profile migration using the Windows Easy Transfer cable. USMT migration occurs in two phases, exporting profile data from the source computer using ScanState and importing profile data on the destination computer using LoadState.

  (include) /i:[Path\]FileName Specifies an .xml file that contains rules that define what user, application or system state to migrate. You can specify this option multiple times to include all of your .xml files (MigApp.xml, MigUser.xml and any custom .xml files that you create). Path can be either a relative or full path. If you do not specify the Path variable, then FileName must be located in the current directory.

• Question 550:

  Which of the following Windows 7 utilities was used to create the output in the above figure?

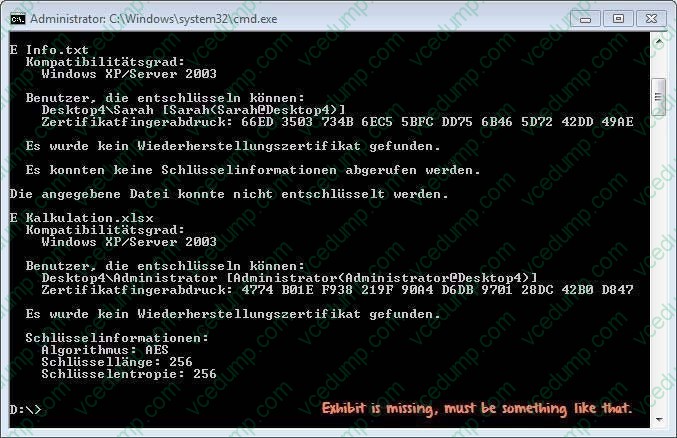

  Not the real exhibit (exhibit):



  German Output (exhibit):



  A. MemManager.exe
  B. SysPrep.exe
  C. Cipher.exe
  D. Performance Monitor
  C. Cipher.exe
