• Question 631:

  An engineer configures port security on a Cisco MDS 9000 Series Switch. The MDS switch configuration must meet these requirements

  1. The switch must inmate the VSAN 4 port security database despite any conflicts.

  2. New devices must be statically added to the switch.

  3. Configuration changes for VSAN 4 must be applied throughout the fabric with any lodes on the fabric released.

  Which configuration set meets these requirements?

  A. port-security activate vsan 4 no port-security auto-learn vsan 4 port-security allocate port-security commit vsan 4
  B. port-security activate vsan 4 force port-security auto-learn vsan 4 port-security distribute port-security commit
  C. port-security activate vsan 4 port-security manual-learn vsan 4 port-security allocate port-security commit
  D. port-security activate vsan 4 force no port-security auto-learn vsan 4 port-security distribute port-security commit vsan 4
  D. port-security activate vsan 4 force no port-security auto-learn vsan 4 port-security distribute port-security commit vsan 4

• Question 632:

  Which statement about monitoring Fibre Channel traffic on a Cisco UCS 6332 Fabric Interconnect is true?

  A. The monitoring of Fibre Channel traffic is limited to the default VSAN.
  B. Fibre Channel traffic can be monitored only on one vHBA per server.
  C. The destination port for monitoring must be an unassigned Fibre Channel port.
  D. Fibre Channel traffic can be monitored as it is encapsulated as FCoE.
  D. Fibre Channel traffic can be monitored as it is encapsulated as FCoE.

• Question 633:

  Which two actions are needed to configure a single Cisco APIC controller for Cisco ACI fabric for the first time? (Choose two.)

  A. Register the APIC that is connected to the switch.
  B. Configure the first Cisco APIC controller
  C. Configure the leaf switch where the Cisco APIC is connected, using CLI to allow APIC connectivity
  D. Register the switches that are discovered through LLDP.
  E. Register all leaf and spine switches
  B. Configure the first Cisco APIC controller
  E. Register all leaf and spine switches

• Question 634:

  DRAG DROP

  An engineer must configure remote authentication on a Cisco UCS system. The user password must be encrypted before it is sent to the authentication server. The company security policy requires the server to be based on an open standard.

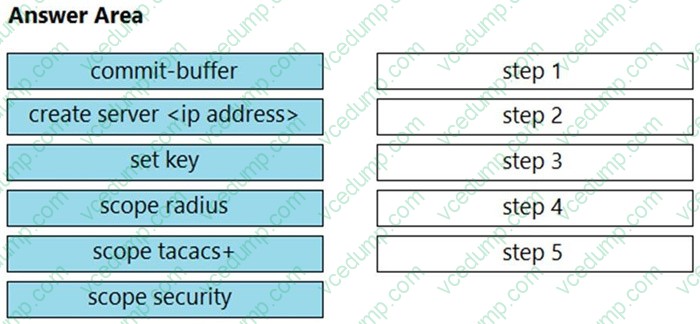

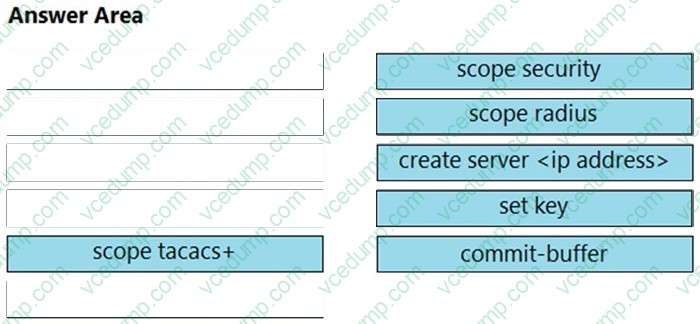

  Drag and drop the UCS CLI AAA configuration commands from the left into the order in which they must be implemented on the right. Not all commands are used.

  Select and Place:





• Question 635:

  Refer to the exhibit.

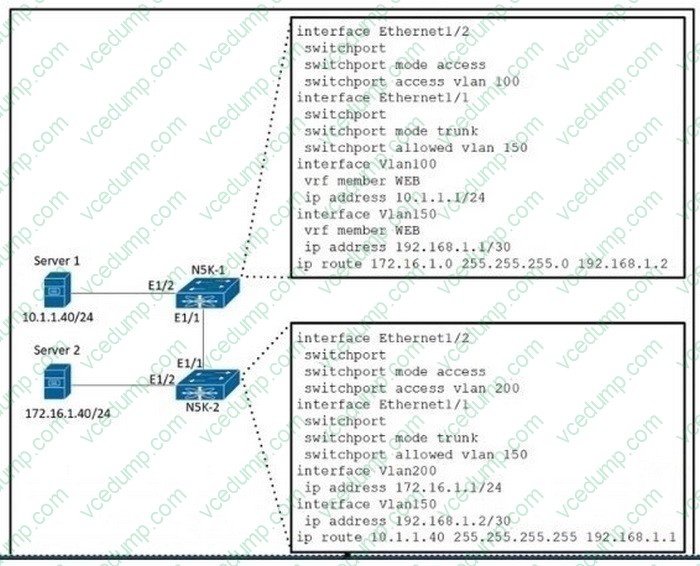

  The gateway of Server 1 is in the VLAN 100 SVI on N5K-1 and the gateway of Server 2 is in the VLAN 200 SVI on N5K-2 Server 1 must connect to Server 2 using unidirectional traffic. Which action accomplishes this requirement?

  A. Add VLAN 100 and 200 to the allowed VLANs list on the Ethernet 1/1 interface on NK5- 1.
  B. Assign VRF WEB membership to interfaces VLAN 150 and 200 on N5K-2.
  C. Configure access VLAN 100 on interface Ethernet 1/2 on N5K-2.
  D. Create a static route in VRF WEB for the subnet of Server 2 on N5K-1
  D. Create a static route in VRF WEB for the subnet of Server 2 on N5K-1

  ---

  Explanation

  Static route which we see in configuration is not for VRF WEB but for global one. We need to add static routing in VRF WEB

  Example

  switch# configure terminal switch(config)# vrf context StaticVrf

  switch(config-vrf)# ip route 192.0.2.0/8 192.0.2.10 switch(config-vrf)# copy running-config startup-config

• Question 636:

  Refer to the exhibit.

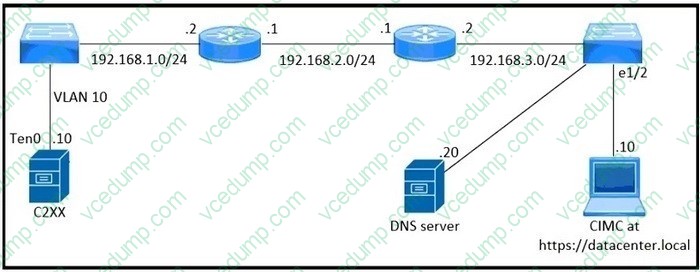

  An engineer must set access to Cisco IMC. The access must be allowed by logging onto the https //datacenter local web page.

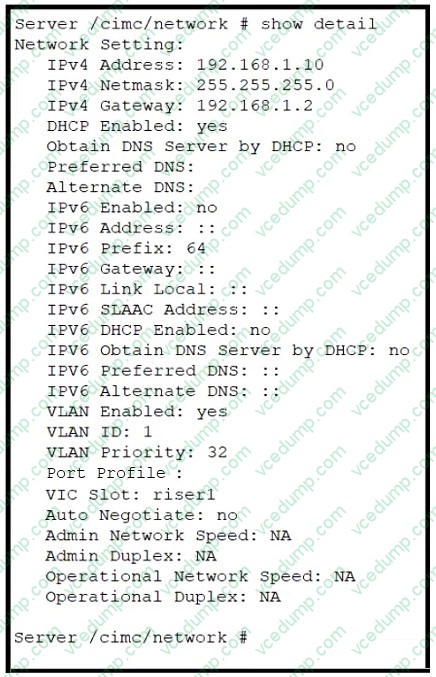

  The configuration presented is on the Cisco UCS C240 Series Server.

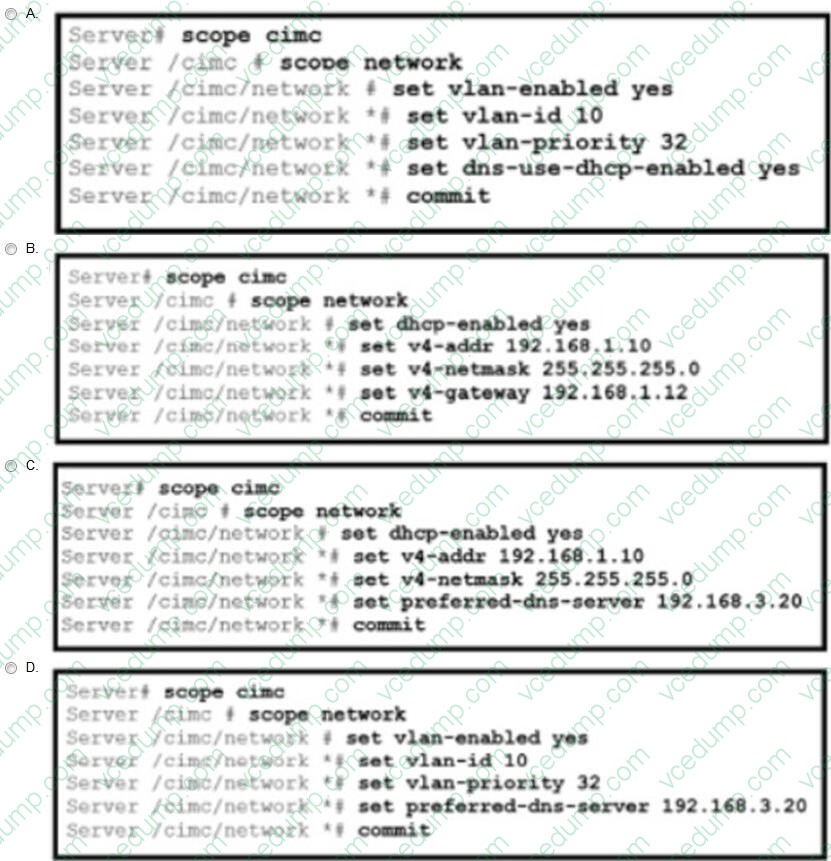

  Which set of commands completes the configuration?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 637:

  Which two methods are available to Manage an ACI REST API session authentication when a user is unauthenticated?

  A. POST to aaaLogin
  B. POST to aaaUserLogin
  C. GET aaaRefresh
  D. GET to aaaListDomains
  E. DELETE to aaaLogout
  A. POST to aaaLogin
  C. GET aaaRefresh

  ---

  Explanation

  These API methods enable you to manage session authentication: aaaLogin--Sent as a POST message, this method logs in a user and opens a session.

  The message body contains an aaa:User object with the name and password attributes, and the response contains a session token and cookie. If multiple AAA login domains are configured, you must prepend the user's name with apic: domain\\ . aaaRefresh--Sent as a GET message with no message body or as a POST message with the aaaLogin message body, this method resets the session timer. The response contains a new session token and cookie.

  aaaLogout--Sent as a POST message, this method logs out the user and closes the session.

  The message body contains an aaa:User object with the name attribute. The response contains an empty data structure. aaaListDomains--Sent as a GET message, this method returns a list of valid AAA login domains.

  You can send this message without logging in.

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/b_Cisco_APIC_REST_API_Configuration_Guide/b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01.html

• Question 638:

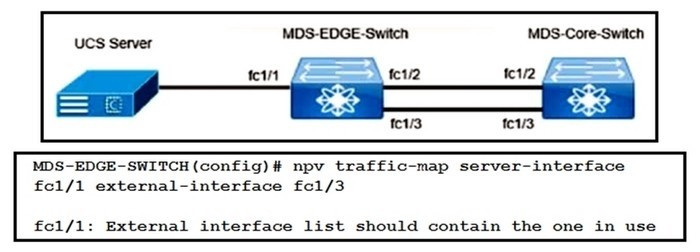

  Refer to the exhibit.



  The MDS-EDGE-Switch and MDS-Core-Switch are configured with NPV and NPIV features

  The FLOGI from Cisco UCS is received by the MDS-Core-Switch on interface fc1/2.

  An engineer tried to move all traffic between the MDS-EDGE-Switch and MOS-Core-Switch from interface fc 1/2 to fc1/3, but the attempt failed.

  Which set of actions completes the configuration?

  A. Shut down fc1/1 in the MDS-EDGE-Switch. Re-apply the command. Enable interface fc1/1.
  B. Disable the NPIV feature in the MDS-EDGE-Switch. Re-enable the NPIV feature. Disable interface fc1/3.
  C. Disable the NPV feature in the MDS-EDGE-Switch. Re-enable the NPV feature. Disable interface fc1/1.
  D. Shutdown fc1/3 in the MDS-EDGE-Switch. Re-apply the command. Enable interface fc1/3.
  A. Shut down fc1/1 in the MDS-EDGE-Switch. Re-apply the command. Enable interface fc1/1.

  ---




• Question 639:

  An engineer must deploy a Cisco UCS C-Series Server with a single VIC 1455 integrated into a Cisco UCS Manager cluster. Two fiber connections are available, and the deployment has no fabric extenders.

  Which set of actions accomplishes this goal?

  A. Reset the system using Cisco IMC to its factory default settings. Attach VIC port 1 and 3 to Fabric Interconnects.
  B. Configure VIC attached ports as Uplink ports on fabric interconnects. Insert 1000Base-T RJ45 SFP in VIC port 1 and 3.
  C. Reset the system using Cisco IMC to its factory default settings. Insert 1000Base-T RJ45 SFP in VIC port 1 and 3.
  D. Configure VIC attached ports as Uplink ports on fabric interconnects. Attach VIC port 1 and 3 to Fabric Interconnects.
  A. Reset the system using Cisco IMC to its factory default settings. Attach VIC port 1 and 3 to Fabric Interconnects.

• Question 640:

  Which adjacency server configuration makes two OTV edge devices located in the same site bring up the dual-site adjacency?

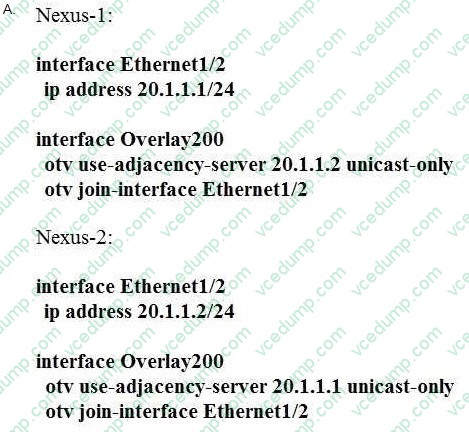

  A. Option A

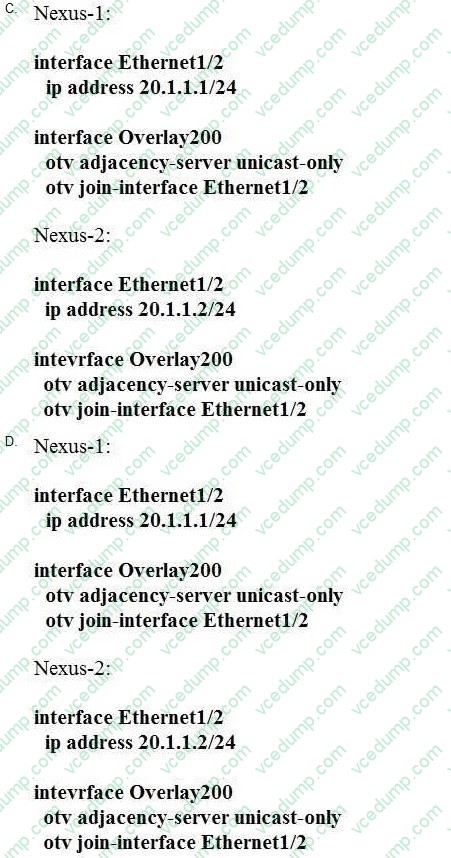

  B. Option B
  C. Option C
  D. Option D

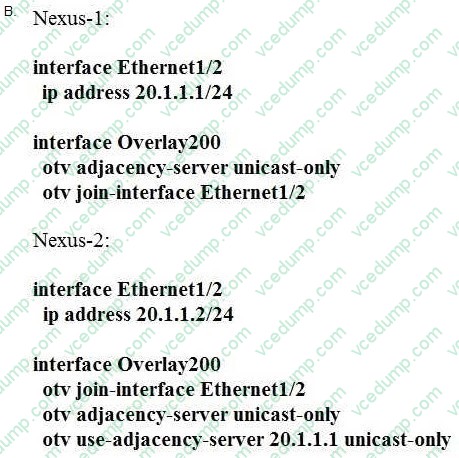

  B. Option B
