Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 621:

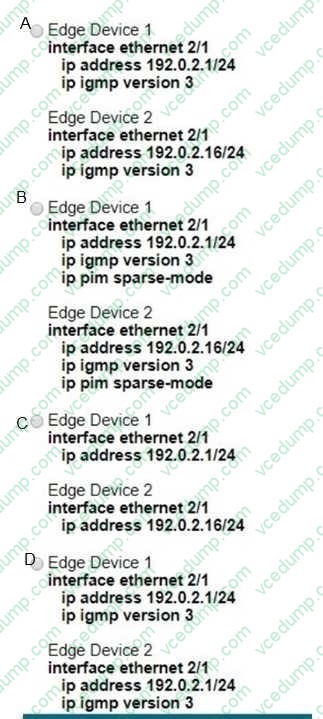

  An engineer must configure two Cisco Nexus 7000 series switches in the same data center to support OTV.

  Which command set completes the join interface configuration?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 622:

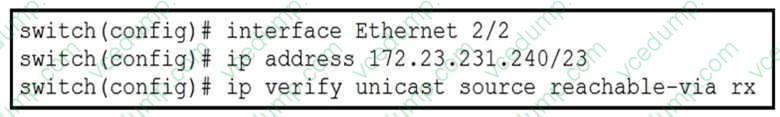

  Refer to the exhibit.



  What is configured as a result of running these commands?

  A. reverse lookup for outbound packets
  B. strict unicast RPF
  C. loose unicast RPF
  D. IP Source Guard
  B. strict unicast RPF

  ---

  Explanation

  https://tools.cisco.com/security/center/resources/unicast_reverse_path_forwarding

  The ip verify unicast source reachable-via rx command enables Unicast RPF in strict mode. To enable loose mode, administrators can use the any option to enforce the requirement that the source IP address for a packet must appear in the routing table.

• Question 623:

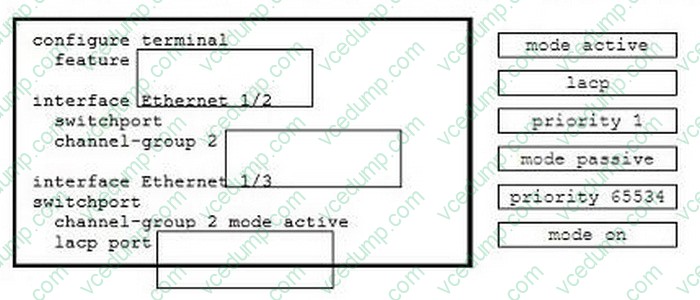

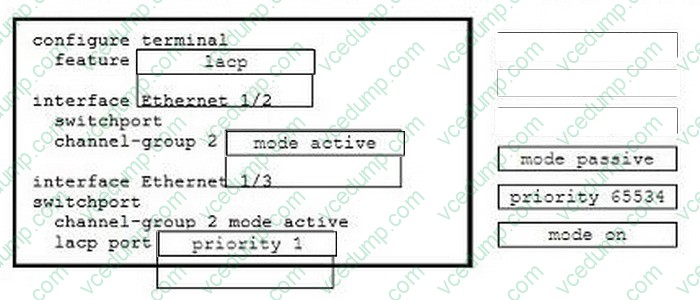

  DRAG DROP

  An engineer must configure an LACP port channel on two Cisco Nexus 7000 Series Switches.

  The interface e1/2 must be a hot-standby link that initiates negotiation with other ports.

  Drag and drop the commands from the right onto the blanks in the configuration on the left.

  Not all commands are used.

  Select and Place:





• Question 624:

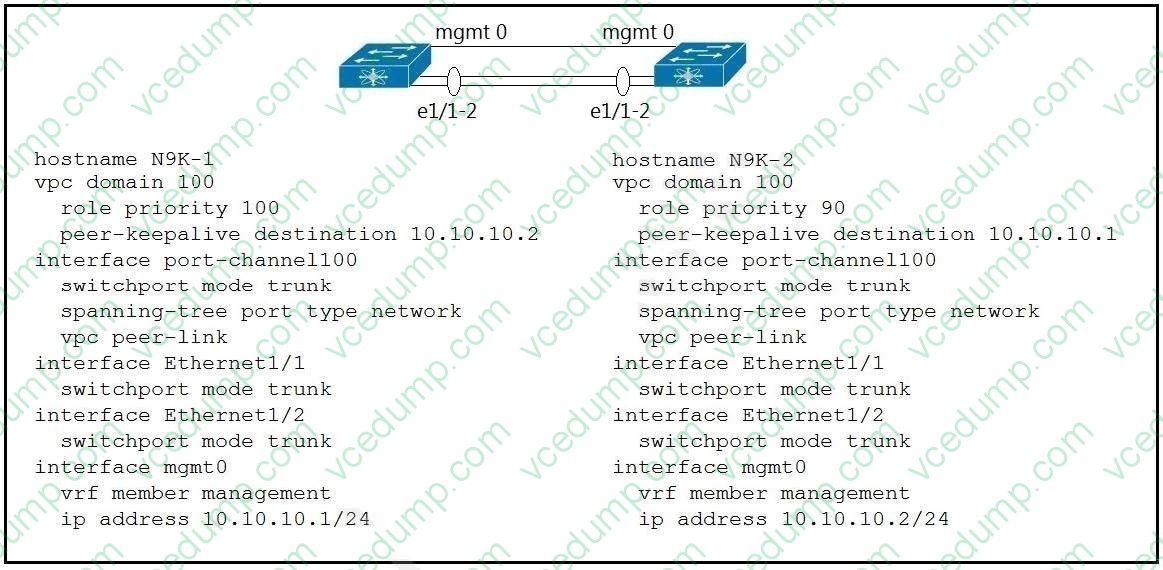

  Refer to the exhibit.



  Which action completes the vPC domain implementation?

  A. Add the vPC member ports to the vPC channel group.
  B. Configure the system MAC on the vPC domain.
  C. Include the VRF management on the vPC domain.
  D. Allow VLANs on the vPC peer link member interfaces.
  A. Add the vPC member ports to the vPC channel group.

• Question 625:

  Which two components should be checked when a Cisco Nexus 9000 Series Switch fails to boot using POAP? (Choose two.)

  A. image noted in the script file against switch bootflash
  B. DHCP server to bootstrap IP information
  C. script signed with security key
  D. TFTP server that contains the configuration script
  E. POAP feature license
  B. DHCP server to bootstrap IP information
  D. TFTP server that contains the configuration script

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/troubleshooting/guide/b_Cisco_Nexus_9000_Series_NX-OS_Troubleshooting_Guide_7x/b_Cisco_Nexus_9000_Series_NXOS_Troubleshooting_Guide_7x_chapter_01100.html

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/fundamentals/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_Fundamentals_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_Fundamentals_Configuration_Guide_7x_chapter_0100.html

• Question 626:

  An engineer must assign a device alias of Marketing to a Fibre Channel port that has a world wide name of 21:00:00:00:11:11:22:22 on a Cisco MDS 9000 Series Switch.

  Which two commands accomplish this goal? (Choose two.)

  A. device-alias name Marketing pwwn 21:00:00:00:11:11:22:22
  B. device-alias name Marketing wwn 21:00:00:00:11:11:22:22
  C. device-alias rename wwn Marketing
  D. vsan database
  E. device-alias database
  A. device-alias name Marketing pwwn 21:00:00:00:11:11:22:22
  E. device-alias database

• Question 627:

  An engineer is running an ACI fabric, has VMM integration with VMware vCenter, and wants to enable microsegmentation based on vCenter VM attributes.

  Which statement about microsegmentation is true?

  A. ACI does not support microsegmentation based on vCenter VM attributes. You should use network attributes for mircosegmentation.
  B. An ACI microsegmented EPG automatically creates a port group with a private VLAN configured on a VMware vCenter distributed virtual switch.
  C. When enabled, microsegmentation performs distributed switching and routing on the ESXi hosts.
  D. Microsegmentation is supported only using AVE or AVS.
  B. An ACI microsegmented EPG automatically creates a port group with a private VLAN configured on a VMware vCenter distributed virtual switch.

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/virtualization/Cisco-ACIVirtualization-Guide-42x/Cisco-ACI-Virtualization-Guide-421_chapter_0100.html

• Question 628:

  An engineer must perform a backup and restore in Cisco UCS to rebuild the system in a disaster recovery scenario. The backup file must be encrypted to prevent the passwords from being stored as cleartext.

  Which backup configuration meets these requirements?

  A. Full state backup over TFTP
  B. Logical configuration backup over SCP
  C. System configuration backup over FTP
  D. All configuration backup over SFTP
  A. Full state backup over TFTP

• Question 629:

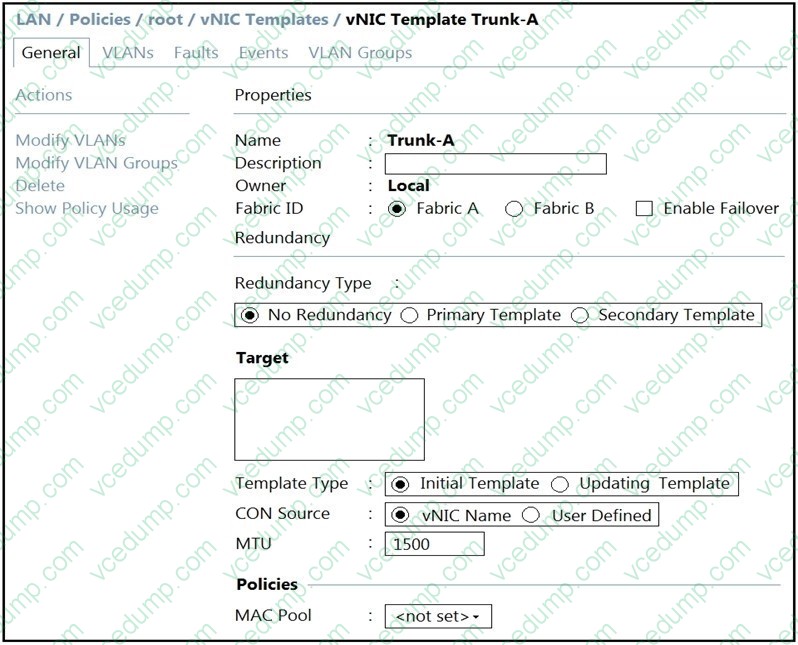

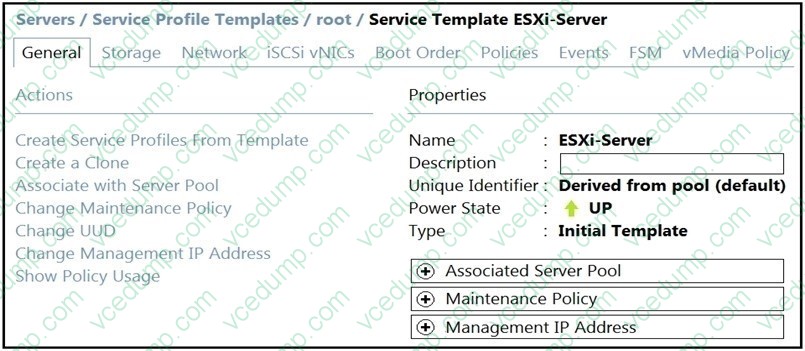

  Refer to the exhibits.





  ESXi-Server is associated to the blade server. A VLAN is added to Trunk-A. The VLAN is missing on the vNIC of ESXi-Server. Which action should be taken to add the VLAN to the vNIC?

  A. Change the template type of Trunk-A to an updating template.
  B. Remove the VLAN from the Trunk-A template and add the VLAN again.
  C. Change the template type of ESXi-Server to an updating template.
  D. Remove both templates and recreate them as updating templates.
  A. Change the template type of Trunk-A to an updating template.

  ---

  Explanation

  Its the vnic template the one where the modification of adding a vlan is made, and if we want that to apply to all server profiles which use this vnic template, it needs to be an updated template.

• Question 630:

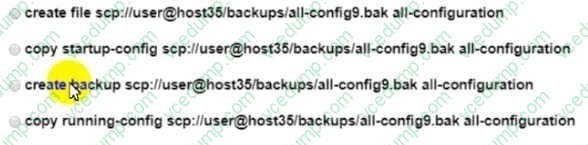

  An engineer needs to make an XML backup of Cisco UCS Manager.

  The backup should be transferred using an authenticated and encrypted tunnel and it should contain all system and service profiles configuration Which command must be implemented to meet these requirements?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

  ---

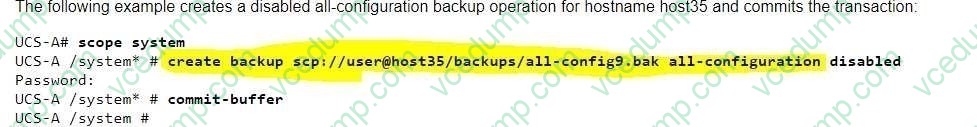

  Explanation

  https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.4.1/CLI_Config_Guide_1_4_1_chapter40.html
