Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 701:

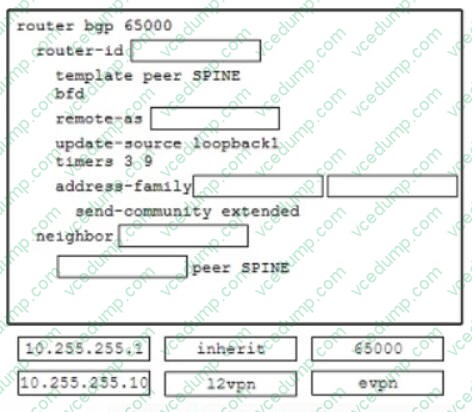

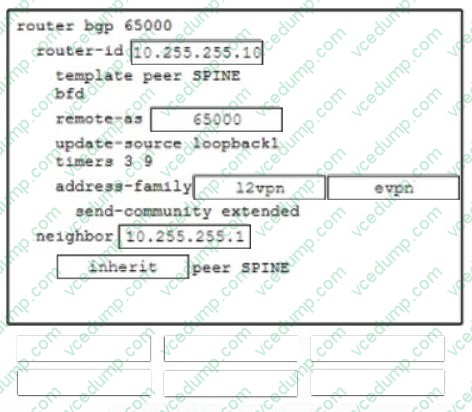

  DRAG DROP

  Refer to the exhibit.



  An engineer must provision a VXLAN deployment. The OSPF has already been configured as the underlay protocol. All BGP configurations will be performed using the template method. The deployment must meet these requirements:

  1. The local update source for leaf switches must be loopback 1

  2. The router ID must be the local loopback IP address

  3. The external BGP connections must use a template name

  Drag and drop the configuration snippets from the bottom to complete the configuration.

  Select and Place:





• Question 702:

  An engineer must monitor the traffic from the uplink Ethernet port. The traffic must be sent to an analyzer connected to interface Eth1/5 of the fabric interconnect. Which configuration must be set on the destination interface to meet this requirement?

  A. unconfigured
  B. server
  C. uplink
  D. appliance
  C. uplink

• Question 703:

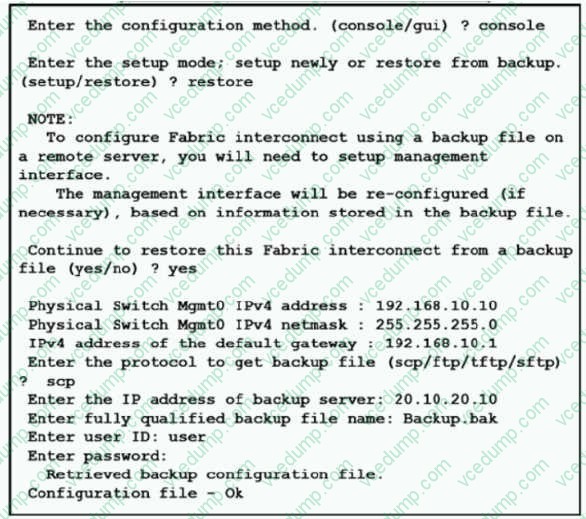

  Refer to the exhibit.



  Which type of backup is required to restore a Cisco UCS configuration?

  A. system configuration
  B. all configuration
  C. logical configuration
  D. full state
  D. full state

• Question 704:

  An engineer must configure monitoring on a Cisco MDS 9000 Series Switch for a critical interface prone to sporadic data traffic surges.

  A Remote Network Monitoring alarm must be configured to sample the number of incoming octets on the critical interface every 300 seconds and must be triggered if the traffic exceeds a certain threshold.

  Which command must be run?

  A. rmon alarm 1 gauge if In Octets. 1 300 absolute 10000 1
  B. rmon event 1 log trap public interval 300 description "Input Octets Monitoring"
  C. rmon alarm 1 iflnOctets.1 60 absolute rising-threshold 10000 1 interval 300
  D. rmon alarm 1 iflnOctets.1 300 absolute rising-threshold 10000 1
  D. rmon alarm 1 iflnOctets.1 300 absolute rising-threshold 10000 1

• Question 705:

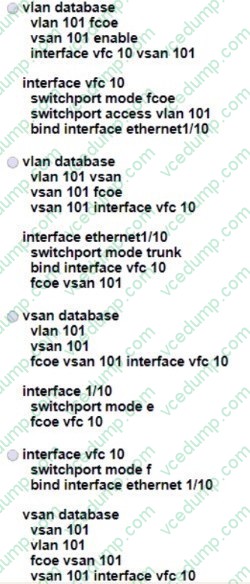

  A storage array must be connected to port ethernet1/10 on a Cisco MDS 9000 Series Switch In addition, the array must connect using the FCoE protocol and be single-homed.

  Which configuration meets these requirements?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 706:

  The Cisco Nexus switch Generic Online Diagnostics policy for a PortLoopback test requires 10 consecutive failures to error disable the port. The customer wants to change it to 5 consecutive failures.

  Which configuration applies the changes for module 1 only?

  A. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type bootup consecutive-failure 5 Nexus(config-applet)# action 1 publish-event
  B. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod 1 test PortLoopback testing-type bootup consecutive-failure 5 Nexus(config-applet)# action 1 publish-event
  C. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 policy-default
  D. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod 1 test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 policy-default
  C. Nexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 policy-default

  ---




• Question 707:

  What is a recommended design choice in a topology for multipathing iSCSI traffic?

  A. single initiator to dual targets
  B. initiators and targets in separate subnets
  C. dual initiators to a single target with bonded interfaces
  D. two NICs bended together on the initiator
  C. dual initiators to a single target with bonded interfaces

• Question 708:

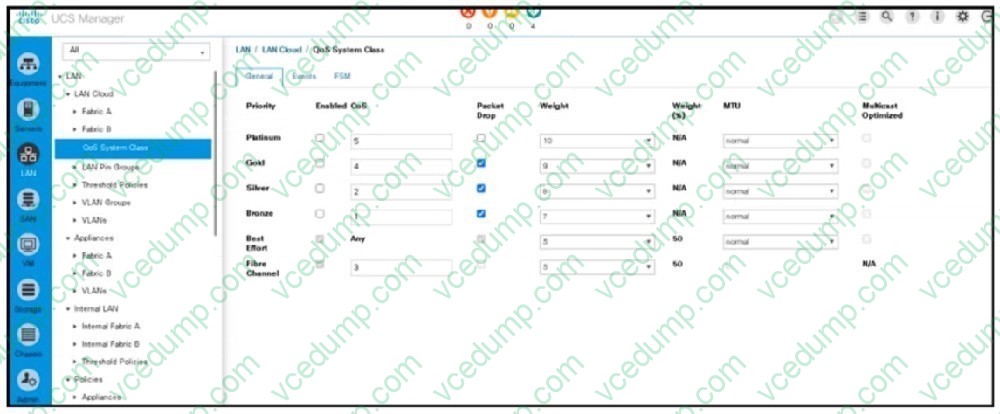

  Refer to the exhibit.



  An engineer must configure a QoS policy that controls only vHBA traffic.

  Which policy must be used to meet this requirement?

  A. Best Effort
  B. Fibre Channel
  C. Gold
  D. Platinum
  B. Fibre Channel
