Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 691:

  A new employee must be granted access to add VLANs into an existing Cisco UCS Manager and configure NTP synchronization with date and time zone settings.

  Which two privileges must be granted to the employee to complete the task? (Choose two.)

  A. Service Profile Compute (Is-compute)
  B. Ext LAN Config (ext-lan-security)
  C. Service Profile Network Policy (Is-network-policy)
  D. Service Profile Config (Is-config)
  E. Ext LAN Policy (ext-lan-policy)
  B. Ext LAN Config (ext-lan-security)
  E. Ext LAN Policy (ext-lan-policy)

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/Reference-Docs/Privileges/4-1/b-UCSM-Privileges-4_1.pdf

  NTP can be configured only with EXT LAN Security.

  VLAN can be added using the following privileges:

  - Ext Lan Config (ext-lan-config)

  - Ext Lan Policy (ext-lan-policy) service profiles will add VLANs to vNICs only if they are configured to UCS manager. So service profile is not valid solution.

• Question 692:

  Which statement is true about upgrading the firmware on a Cisco MDS storage switch with dual supervisors?

  A. The standby supervisor must be offline before the firmware upgrade begins.
  B. Both supervisors load the new firmware and then the active supervisor reboots.
  C. Supervisors can be upgraded independently to test the new firmware.
  D. The new firmware is load on the standby supervisor first.
  D. The new firmware is load on the standby supervisor first.

• Question 693:

  An engineer is converting a Cisco MDS switch to support NPIV mode.

  What should be considered when implementing the solution?

  A. It must be enabled on VSAN 1 only.
  B. It must be enabled globally on all VSANs.
  C. It requires mapping of external interface traffic.
  D. It requires the FLOGI database to be disabled.
  B. It must be enabled globally on all VSANs.

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_0/configuration/guides/int/nxos/cli_interfaces/npv.html

• Question 694:

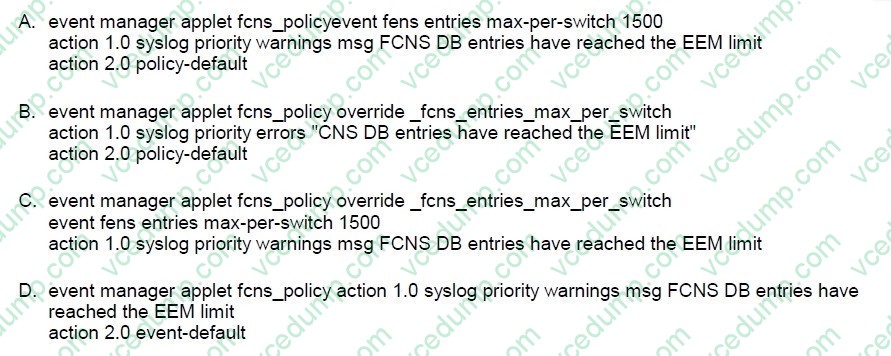

  AN engineer is asked to modify an overridden policy by changing the number of FCNS database entries to 1500 and then generable a massage.

  What configuration will accomplish this task?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

  ---

  Explanation

  The following example modifies an overridden policy by changing the number of FCNS database entries to 1500. It also generates both the configured and the default syslog messages of the default system policy event manager applet fcns_policy override __fcns_entries_max_per_switch event fcns entries max-per- switch 1500 action 1.0 syslog priority warnings msg FCNS DB entries have reached the EEM limit.

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/systemmanagement/cisco_mds9000_system_management_config_guide_8x/configuring_the_embedded_event_manager.html

• Question 695:

  An engineer must back up the configuration of a Cisco UCS system for disaster recovery.

  The backup must include the service profile deployed lo the server and all the associated settings.

  The backup file must also be encrypted to protect passwords and other sensitive information.

  Which backup type must be used?

  A. full state
  B. all configuration
  C. system configuration
  D. logical configuration
  A. full state

• Question 696:

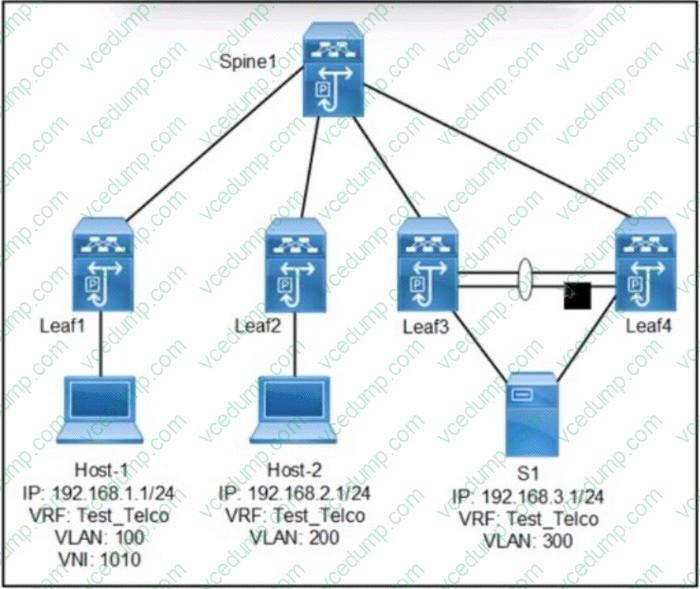

  Refer to the exhibit.



  A VXLAN data center fabric has three hosts mapped to three different VLANs. Ingress and egress VTEPs perform Layer 2 and Layer 3 lookups. VLAN 100 is mapped to VNI 1010 on the leaf. Which set of actions allows communication between Host-1 and Host-2?

  A. MAP VLAN 200 to Layer 2 VNI 2020 on Leaf2. Attach Test_Telco_VRF to Layer 2 VNI 1010.
  B. Suppress ARP for Layer 2 VNI under interface NVE. Configure anycast gateway feature on interface vlan of L3 VNI.
  C. Enable prefix-based routing under interface vlan of L3 VNI. MAP VLAN 200 to layer 2 VNI 2020 on Leaf2.
  D. Attach Test_Telco_VRF to Layer 3 VNI 1010. Suppress ARP for Layer 3 VNI under interface NVE.
  A. MAP VLAN 200 to Layer 2 VNI 2020 on Leaf2. Attach Test_Telco_VRF to Layer 2 VNI 1010.

• Question 697:

  A network engineer must roll back a configuration change made on a Cisco Nexus 9300 Series Switch. Before the change, the network engineer created a checkpoint named pre- config. The rollback abort if any errors occur.

  Which command must be used to accomplish these objectives?

  A. Nexus01# rollback running-config checkpoint pre-config atomic
  B. Nexus01# rollback running-config checkpoint pre-config best-effort
  C. Nexus01# rollback running-config checkpoint pre-config stop-at-first-failure
  D. Nexus01# rollback running-config checkpoint pre-config
  C. Nexus01# rollback running-config checkpoint pre-config stop-at-first-failure

• Question 698:

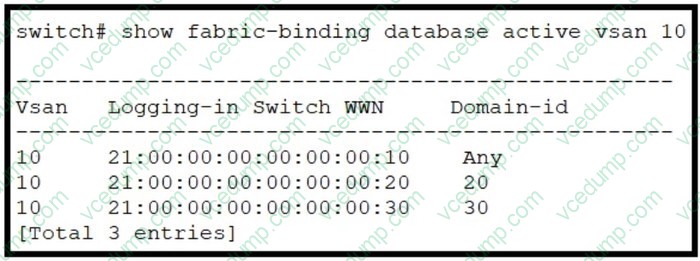

  Refer to the exhibit

  An engineer must configure fabric binding on a Cisco MDS 9000 Senes Switch to match the output.

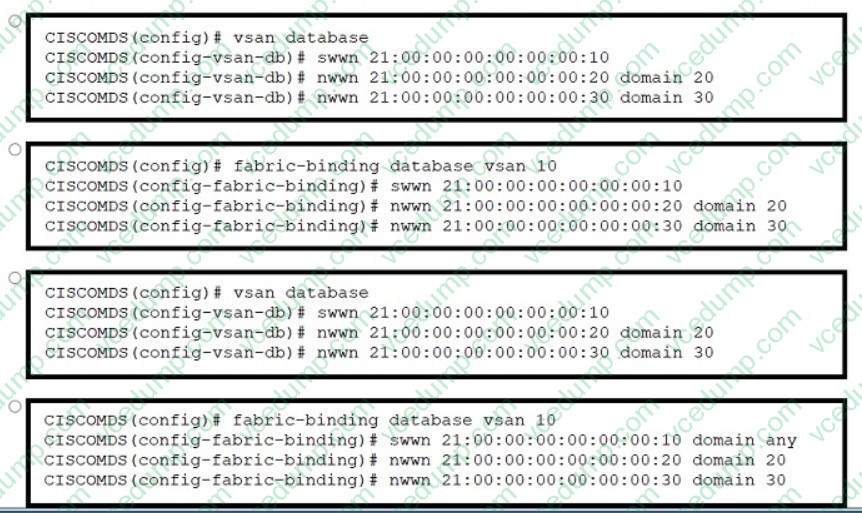

  Which fabric database configuration accomplishes this goal?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 699:

  Which server policy is used to install new Cisco IMC software on a server?

  A. host firmware policy
  B. hypervisor firmware policy
  C. BIOS software policy
  D. Cisco IMC software policy
  A. host firmware policy

  ---

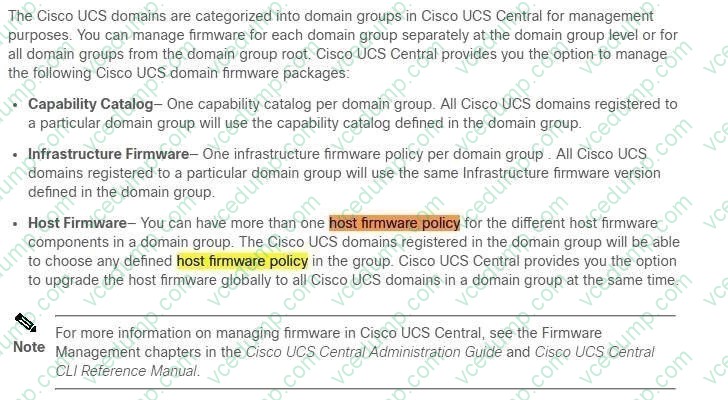

  Explanation

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Firmware-Mgmt/4-0/b_UCSM_CLI_Firmware_Management_Guide_4-0/b_UCSM_CLI_Firmware_Management_Guide_4-0_chapter_01.html#

  You can use host firmware packages by defining a host firmware policy as an attribute of a service profile template, which is an updating template. Any change made to the service profile template is automatically made to its instantiated service profiles. Subsequently, the servers associated with the service profiles are also upgraded in parallel with the firmware version.



• Question 700:

  What is a characteristic of EPLD updates on Cisco MDS 9000 Series Switches?

  A. EPLD updates are installed only via the Cisco DCNM GUI
  B. EPLD packages update hardware functionality on a device
  C. EPLD bundles are released separately from a Cisco MDS NX-OS release
  D. EPLD updates are nondisruptive to traffic flow
  B. EPLD packages update hardware functionality on a device

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/release/notes/epld/epld_rn.html
