Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 11:

  Which two configuration settings are available in the Cisco UCS Firmware Auto Sync Server policy? (Choose two.)

  A. Immediate Action
  B. User Notification
  C. User Acknowledge
  D. Delayed Action
  E. No Action
  C. User Acknowledge
  E. No Action

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/firmware-mgmt/gui/2-2/b_GUI_Firmware_Management_22/b_GUI_Firmware_Management_22_chapter_01111.pdf

  Following are the values for the Firmware Auto Sync Server policy: ?User Acknowledge--Firmware on the server is not synchronized until the administrator acknowledges the upgrade in the Pending Activities dialog box. ?No Action--No firmware upgrade is initiated on the server.

• Question 12:

  A network engineer must configure a Fibre Channel port monitoring for the local port. The source port should be monitored in the ingress direction.

  Which configuration should be implemented to achieve this objective?

  A. interface fc1/15 switchport mode SD switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 rx
  B. interface fc1/15 switchport mode switchport switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 tx
  C. interface fc1/15 switchport mode fex-fabric switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 rx
  D. interface fc1/15 switchport mode SD switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 tx
  A. interface fc1/15 switchport mode SD switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 rx

• Question 13:

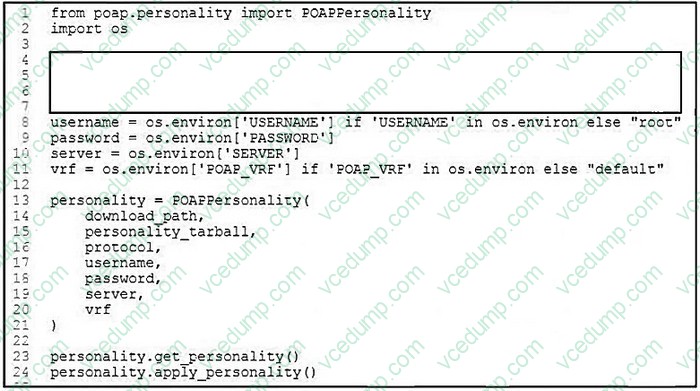

  Refer to the exhibit.



  An engineer must create a script that downloads the POAP personality tarball file from an FTP server that is exposed in the SERVER environmental variable. The personality file to be downloaded is named with the hostname of the switch and the tar extension. The default method of downloading the file must be SCP.

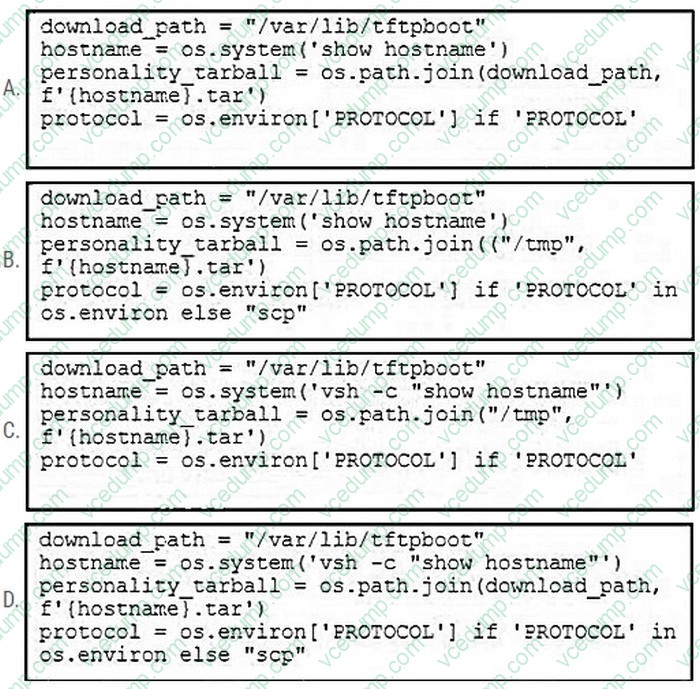

  Which code snippet completes the script?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 14:

  A network engineer configures a converged network adapter (CNA) and must associate a virtual Fibre Channel 7 interface to VSAN 7. The CNA is connected to the interface Eth1/7, and VLAN 700 is mapped to the VSAN. Which configuration must be applied to create the virtual Fibre Channel interface and associate it with the Ethernet physical interface?

  A. switch(config)# interface vfc 7 switch(config-if)# bind interface ethernet 1/7
  B. switch(config)# vlan 700 switch(config-vlan)# fcoe vsan 7
  C. switch(config)# vsan database switch(config-vsan)# vsan 7 interface vfc 7
  D. switch(config)# interface ethernet 1/7 switch(config-if)# vfc 7 attach vlan 1,700
  A. switch(config)# interface vfc 7 switch(config-if)# bind interface ethernet 1/7

• Question 15:

  A POAP-enabled Cisco Nexus switch will not enter POAP mode.

  Which two conditions should be verified? (Choose two.)

  A. Bootflash must contain a special directory named POAP with poap.py file.
  B. The switch is in bootup process.
  C. No startup configuration is available.
  D. The license file is missing on the switch.
  E. No Cisco NX-OS image is present on the bootflash.
  B. The switch is in bootup process.
  C. No startup configuration is available.

  ---

  Explanation

  POAP configuration guidelines and limitations are as follows:

  1. The Cisco Nexus switch software image must support POAP for this feature to function.

  2. POAP does not support provisioning of the switch after it has been configured and is operational. Only auto-provisioning of a switch with no startup configuration is supported.

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus7000/sw/fundamentals/config/cisco_nexus7000_fundamentals_config_guide_8x/Using_PowerOn_Auto_Provisioning.html

• Question 16:

  DRAG DROP

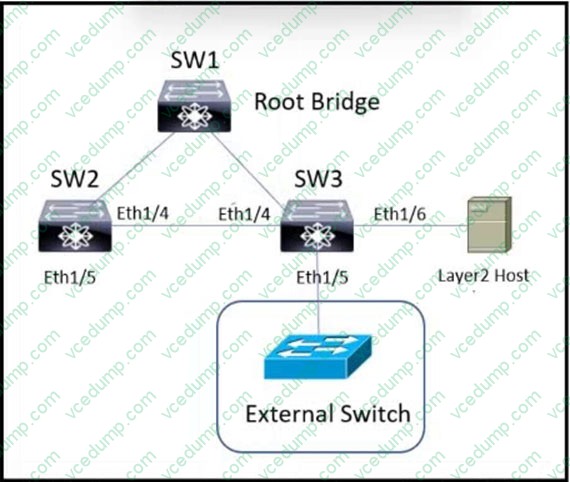

  Refer to the exhibit. The Cisco Nexus Series Switches SW1, SW2, and SW3 are connected via Layer 2 copper interfaces. An engineer implements loop prevention standard IEEE 802.1w on each VLAN lo provide lasier recovery from network changes or failures. The Implementation has these requirements:

  1. Interfaces that are connected to Layer 2 hosts must not receive STP BPDUs.

  2. The implementation must detect unidirectional links due to one-way traffic twisted- pair links

  3. Bridge assurance must be enabled between SW2 and SW3

  4. The Layer 2 domain must be protected from superior BPDUs that arrive from external switches.

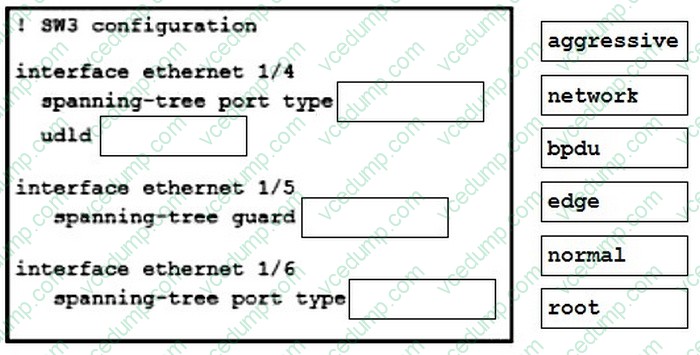

  Drag and drop the code snippets from the right onto the blanks in the code on the left to complete the configuration for SW3. Not all code snippets are used.

  Select and Place:





  ---

  interface ethernet 1/4 spanning-tree port type network udld aggressive interface ethernet 1/5 spanning-tree guard root interface ethernet 1/6

  spanning-tree port type edge

  In the question, we have 4 most important requirements:

  1. Interfaces that are connected to Layer 2 hosts must not receive STP BPDUs.

  2. The implementation must detect unidirectional links due to one-way traffic twisted-pair links.

  3. Bridge assurance must be enabled between SW2 and SW3.

  4. The Layer 2 domain must be protected from superior BPDUs that arrive from external switches.

  1st: command spanning-tree port type edge disables stp process on port 2nd: udld aggressive enables UDLD in aggressive mode 3rd: Bridge assurance is enabled globally by default on NX-OS. However, we do have to change the spanning-tree port type to network on interfaces 4th: Root guard is enabled with the interface command spanning-tree guard root. Root guard is placed on designated ports toward other switches that should never become root bridges.

• Question 17:

  Which Cisco UCS Manager XML encoded backup type must be used to back up user names, roles, and service profiles?

  A. Full State Configuration
  B. Logical Configuration
  C. All Configuration
  D. System Configuration
  B. Logical Configuration

• Question 18:

  Which virtualization feature is provided by network-attached storage?

  A. ALUA path redirection
  B. hypervisor host boot LUN
  C. VM cluster shared disk
  D. raw device passthrough
  C. VM cluster shared disk

• Question 19:

  An engineer configures the properties of a Cisco UCS Cisco Integrated Management Controller network adapter for a standalone Cisco C-Series Server. The Failback Timeout in the vNIC was set to 600. When the failure occurs, the secondary interfaces must be used and then failback when the primary interface becomes available again.

  Which action must be taken to meet these requirements?

  A. Set default VLAN on the adapters.
  B. Increase CoS to 6.
  C. Enable Uplink Failover.
  D. Disable VNTAG mode.
  C. Enable Uplink Failover.

  ---

  Explanation

  Enable Uplink Failover check box-Check this box if traffic on this vNIC should fail over to the secondary interface if there are communication problems. VNTAG mode is required for this option.

  Failback timeout field-After a vNIC has started using its secondary interface, this setting controls how long the primary interface must be available before the system resumes using the primary interface for the vNIC. Enter a number of seconds between 0 and 600. VNTAG mode is required for this option.

  https://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/gui/config/guide/1.5/b_Cisco_UCS_C-series_GUI_Configuration_Guide.151_chapter_01001.html

• Question 20:

  An engineer must configure OSPF in the data center. The external routes have already been redistributed into OSPF. The network most meets these criteria:

  1. The data center servers must reach services in the cloud and the services behind the redistributed routes.

  2. The exit point toward the Internet should be propagated only when there is a dynamically learned default route from the upstream router.

  Which feature is required?

  A. stubby area
  B. totally stubby area
  C. default-information originate
  D. default-information originate always
  C. default-information originate
