Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 601:

  Which configuration implements static ingress replication?

  A. interface nve 1 member vni 2100980 ingress-replication protocol static peer-ip 10.0.0.4
  B. interface nve 1 member vni 127772151 ingress-replication protocol bgp
  C. interface nve 1 member vni 3126980 peervtep 10.0.0.4 ingress-replication protocol static peer-ip 10.0.0.4
  D. interface nve 1 member vni 384233213 peer vtep 10.0.0.41
  A. interface nve 1 member vni 2100980 ingress-replication protocol static peer-ip 10.0.0.4

• Question 602:

  A Cisco Nexus 7000 Series switch runs VXLAN, and interface Ethernet 7/30 is configured as a trunk port. Which command set configures the switch to act as a gateway for VLAN 50?

  interface Ethernet7/30

  no switchport

  no shutdown

  service instance 1 vni

  no shutdown

  encapsulation profile VSI_50_TO_500 default

  A. encapsulation profile vni VSI_50_TO_500 dot1q 500 vni 50 bridge-domain 500 member vni 50 interface Vlan500 ip address 10.50.50.51/24
  B. encapsulation profile vni VSI_50_TO_500 dot1q 500 vni 50 bridge-domain 500 member vni 50 interface Bdi500 jp address 10.50.50.51/24
  C. encapsulation profile vni VSI_50_TO_500 dot1q 50 vni 500 bridge-domain 50 member vni 500 interface Bdi50 ip address 10.50.50.51/24
  D. encapsulation profile vni VSI_50_TO_500 dot1q 50 vni 500 bridge-domain 50 member vni 500 interface Vlan50 ip address 10.50.50.51/24
  C. encapsulation profile vni VSI_50_TO_500 dot1q 50 vni 500 bridge-domain 50 member vni 500 interface Bdi50 ip address 10.50.50.51/24

• Question 603:

  What is the impact of a nondisruptive upgrade on fabric and modular switches?

  A. The upgrade disrupts the control plane for more than 120 seconds.
  B. During the upgrade, new devices cannot log in to the fabric.
  C. If a zone server merge is in progress, the upgrade continues without interruption.
  D. When the installation is complete, the system BIOS must be updated.
  B. During the upgrade, new devices cannot log in to the fabric.

• Question 604:

  An architect must select a scripting language for automating Cisco Nexus Series Switches and Cisco UCS Manager.

  The language must comply with these requirements:

  1. Can run in interactive mode for testing

  2. Can be run from different operating systems without changing code

  3. Extensible with a diverse set of libraries

  Which scripting language meets these requirements?

  A. Bash
  B. Python
  C. TCL
  D. JavaScript
  B. Python

• Question 605:

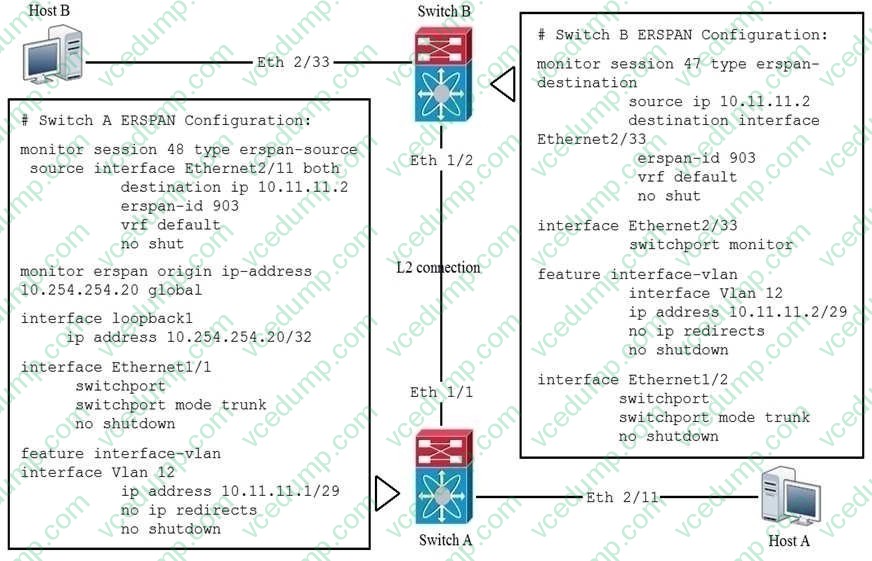

  Refer to the exhibit.



  Which statement about the ERSPAN configuration in this environment is true?

  A. Host A is the source of ERSPAN spanned traffic and host B is the traffic analyzer.
  B. Host B is the source of ERSPAN spanned traffic and host A is the traffic analyzer.
  C. The session number of the source of ERSPAN spanned traffic must have a session ID of 48 for the traffic analyzer to receive the traffic.
  D. The session number of the source of ERSPAN spanned traffic must have a session ID of 47 for the traffic analyzer to receive the traffic.
  A. Host A is the source of ERSPAN spanned traffic and host B is the traffic analyzer.

• Question 606:

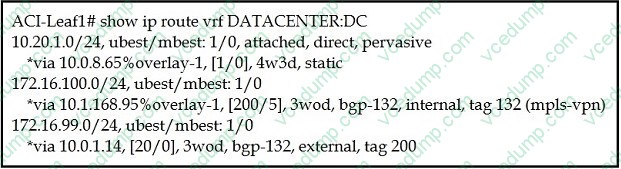

  Refer to the exhibit.



  Which two statements describe the routing table of the leaf switch? (Choose two.)

  A. The next hop 10.0.8.65 for route 10.20.1.0724 is the TEP address of a border leaf in ACI.
  B. The next hop 10.0.1.14 for route 172.16.99.0/24 is the TEP address of a border leaf in ACI.
  C. The next hop 10.1.168.95 for route 172.16.100 0/24 is the TEP address of a border leaf in ACI.
  D. 172.16.100.0/24 is a BD subnet in ACI.
  E. 10.20.1.0/24 is a BD subnet in ACI.
  C. The next hop 10.1.168.95 for route 172.16.100 0/24 is the TEP address of a border leaf in ACI.
  E. 10.20.1.0/24 is a BD subnet in ACI.

• Question 607:

  What is required for using Ansible with HTTP/HTTPS protocol in a Cisco NX-OS environment?

  A. SSH
  B. Open Agent Container
  C. XML management interface
  D. NX-API
  D. NX-API

  ---

  Explanation

  https://docs.ansible.com/ansible/2.5/modules/nxos_nxapi_module.html

  https://docs.ansible.com/ansible/latest/network/user_guide/platform_nxos.html

• Question 608:

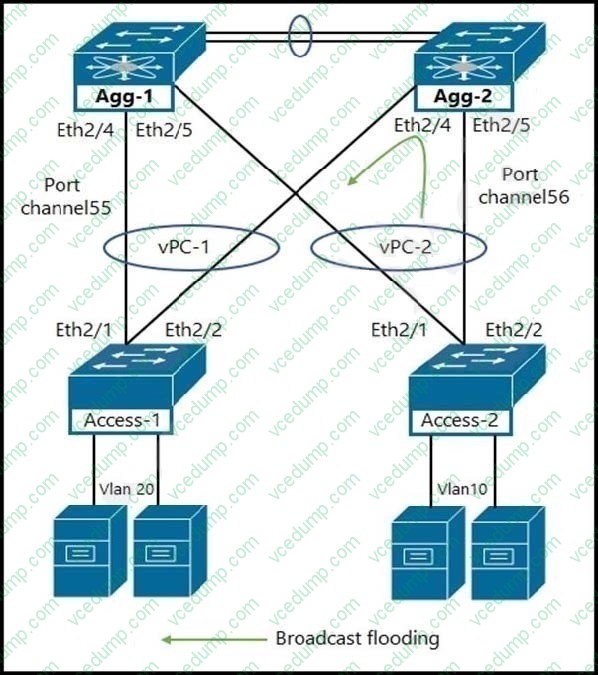

  Refer to the exhibit.



  What happens to the broadcast traffic when it reaches aggregation switches?

  A. Agg-2 switch receives broadcast packets and stops forwarding to the peer link on Agg-1 switch.
  B. Agg-1 switch prevents broadcast packets received on the vPC peer link from exiting the switch on ports Eth2/4 and Eth2/5.
  C. Agg-1 and Agg-2 switches receive broadcast packets and does not forward them to the peer link or the port channel.
  D. Only Agg-1 switch receives broadcast packets and does not forward to the peer link on Agg-2 switch.
  B. Agg-1 switch prevents broadcast packets received on the vPC peer link from exiting the switch on ports Eth2/4 and Eth2/5.

  ---

  Explanation

  Duplicate Frames Prevention in vPC

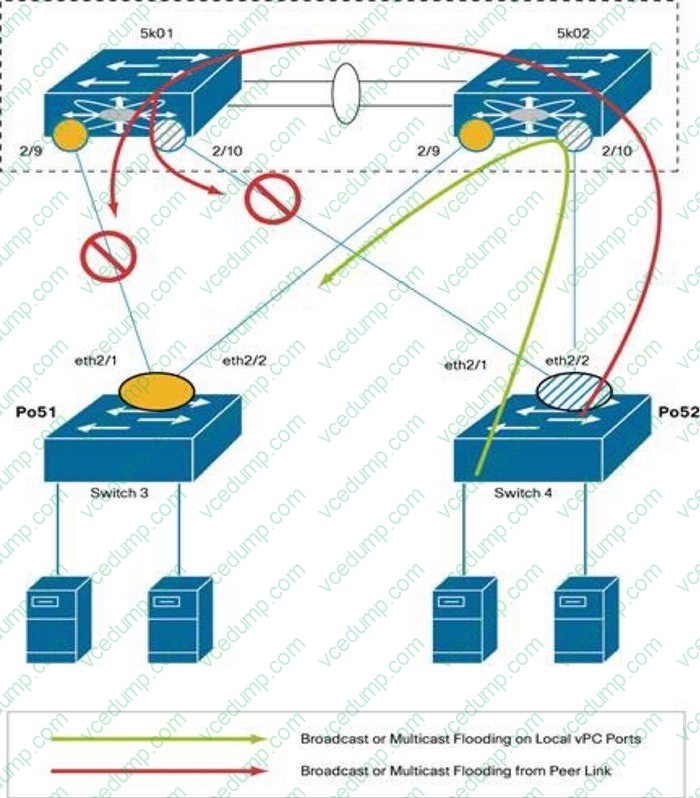

  One of the most important forwarding rules for vPC is that a frame that enters the vPC peer switch from the peer link cannot exit the switch from a vPC member port.Figure shows switch-es 3 and 4 connected to 5k01 and 5k02 with vPCs Po51 and Po52. If one of the hosts connected to switch 4 sends either an unknown unicast or a broadcast, this traffic may get hashed to port eth2/2 on PortChannel 52. 5k02 receives the broadcast and needs to forward it to the peer link for the potential orphan ports on 5k01

  to receive it.

  Upon receiving the broadcast, 5k01 detects that this frame is coming from the vPC peer link. Therefore, it does not forward it to port 2/9 or 2/10;

  if it did, a duplicate frame on switch 3 or 4, respectively, would be created. If a host on switch 4 sends a broadcast, 5k02 will correctly forward it to Po51 on port 2/9 and place it on the peer link. 5k01 will prevent this broadcast frame from exiting onto port 2/9 or 2/10 because this frame entered 5k01 from a vPC peer link. Should eth2/2 on switch 3 go down, port 2/9 on 5k01 would become an orphan port and as a result will receive traffic that traverses the peer link.



• Question 609:

  A Cisco ACI fabric is created with a single L30ul with R1 and R2 The requirement is to prevent all received subnets from R1 and R2 from communicating.

  Which configuration accomplishes this goal?

  A. Intra EPG isolation as Unenforced
  B. Intra EPG isolation as Enforced
  C. Intra Ext-EPG isolation as Unenforced
  D. Intra Ext-EPG isolation as Enforced
  D. Intra Ext-EPG isolation as Enforced

• Question 610:

  Which MAC address is an HSRP version 2?

  A. 0100.5E7F.FFFF
  B. 3799.9943 3000
  C. 0000.0C9F.F0C8
  D. 0000.0C07.AC1H
  C. 0000.0C9F.F0C8

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipapp_fhrp/configuration/xe-3s/fhp-xe-3s-book/fhp-hsrp-v2.html
