Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 591:

  An engineer is using REST API calls to configure the Cisco APIC.

  Which data structure must be used within a POST message to receive a login token?

  A. {"aaaUser":{"attributes":{"name":"apiuser","pwd":"cisco123"}}}
  B. <aaaUser><name="apiuser"/><pwd="cisco123"/></aaaUser>
  C. {aaaUser:{attributes:{name:apiuser,pwd:cisco123}}}
  D. <aaaUser><name>apiuser</name><pwd>cisco123</pwd></aaaUser>
  A. {"aaaUser":{"attributes":{"name":"apiuser","pwd":"cisco123"}}}

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/b_Cisco_APIC_REST_API_Configuration_Guide/b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01.html

• Question 592:

  An engineer must perform a POAP deployment of a Cisco Nexus 9000 Series Switch.

  The switch must automatically receive its software image and configuration file upon power-on. Also, only UDP is permitted between the Nexus 9000 switch and the server that hosts the Cisco NX-OS system images.

  Which set of actions completes the configuration?

  A. Enable option 67. Define TFTP transfer protocol
  B. Enable option 43 Define HTTP transfer protocol.
  C. Enable option 46. Define TFTP transfer protocol
  D. Enable option 35. Define HTTP transfer protocol.
  A. Enable option 67. Define TFTP transfer protocol

  ---




• Question 593:

  An engineer must perform a nondisruptive software upgrade on a dual supervisor Cisco Nexus 7000 series switch.

  What is the cause of the upgrade being disruptive?

  A. The show install all impact command is not issued Before the upgrade
  B. The kickstart image is installed by using the install all kickstart image system image command
  C. Attempt to simultaneously upgrade more than three cards
  D. Change of the configuration settings or the network connections during the upgrade process
  D. Change of the configuration settings or the network connections during the upgrade process

• Question 594:

  An engineer must implement Strict Unicast Reverse Path Forwarding mode for IPv4 packets on the Etnerret1/1 interface on the Cisco Nexus 9500 Series Switch.

  Which configuration achieves this goal?

  A. interlace Ethernet1/1 ip address 172.16.10.1/24 ip verify unicast source reachable-via rx
  B. interface Ethernet1/1 ip address 172.16.10.1/24 ip verify unicast source any
  C. interface Ethernet1/1 ip address 172.16.10.1/24 ip verify unicast source reachable-via any
  D. interface Ethernet1/1 ip address 172.16.10.1/24 ip verify unicast source rx
  A. interlace Ethernet1/1 ip address 172.16.10.1/24 ip verify unicast source reachable-via rx

• Question 595:

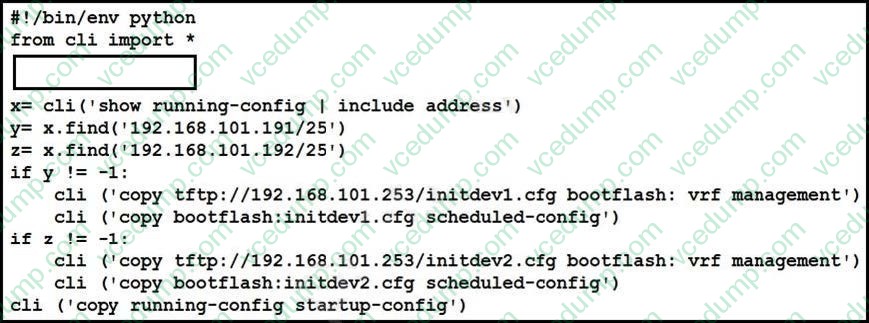

  Refer to the exhibit.



  Which information must be added to the script to complete the POAP operation on the Cisco Nexus 9000 Series Switch?

  A. MD5SUM d41d8cd98f00b20449800998ecf8427e of the script file.
  B. MD5SUM d41d8cd98f00b204e9800998ecf8427e of the Python code.
  C. API token d41d8cd98f00b77986331998ecf8427e of the Cisco Nexus 9000 Series Switch.
  D. API token d41d8cd98f00b41051968198ecf8427e of the Cisco APIC.
  B. MD5SUM d41d8cd98f00b204e9800998ecf8427e of the Python code.

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/fundamentals/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_Fundamentals_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_Fundamentals_Configuration_Guide_7x_chapter_0100.html#id_53294

• Question 596:

  Which method must a network engineer use to upgrade the BIOS firmware of a Cisco UCS standalone C- Series reck-mount server?

  A. Use the Cisco host upgrade utility.
  B. Use the Cisco hardware upgrade utility.
  C. Use the Cisco host firmware policy.
  D. Use the U-ACPI Interface.
  A. Use the Cisco host upgrade utility.

• Question 597:

  An engineer must configure a VXLAN routing on a Cisco Nexus 9000 Series Switch. The engineer requires a solution where all the leaf switches have the same gateway MAC and IP addresses.

  Which configuration set accomplishes this task?

  A. NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# vrf member vrf-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  B. NX9K(config)# install feature-set fabric NX9K(config)# feature-set fabric NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  C. NX9K(config)# install feature-set fabric NX9K(config)# feature-set fabric NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# vrf member vrf-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  D. NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# fabric forwarding mode anycast-gateway
  A. NX9K(config)# fabric forwarding anycast-gateway-mac AA:BB:AA:BB:AA:BB NX9K(config)# interface VLAN-interface-name NX9K(config-if)# vrf member vrf-name NX9K(config-if)# fabric forwarding mode anycast-gateway

  ---

  Explanation

  1. Enable VxLAN with distributed anycast-gateway using BGP EVPN fabric forwarding anycast-gateway-mac 0000.2222.3333

  2. Create server facing SVI and enable distributed anycast-gateway interface Vlan1001 no shutdown vrf member vxlan-900001 ip address 4.1.1.1/24 ipv6 address 4:1:0:1::1/64 fabric forwarding mode anycast-gateway

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x_chapter_0100.html

• Question 598:

  APIC EPG Resolution Immediacy is set to "Immediate" Which statement is true about the Deployment Immediacy for VMM domains associated to EPGs?

  A. The "Immediate" and "On demand" options require a port group to be created on the VDS.
  B. If "On demand" is selected, the policy is programmed in the hardware only when the APIC detects a VM created in the EPG.
  C. If "On demand" is selected the policy is programmed in the hardware only when the first packet is received through the data path.
  D. If "immediate" is selected the policy is programmed in the hardware as soon as the leaf is booted.
  C. If "On demand" is selected the policy is programmed in the hardware only when the first packet is received through the data path.

  ---

  Explanation

  "Deployment Immediacy On demand--Specifies that the policy is programmed in the hardware policy CAM only when the first packet is received through the data path."

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01011.html#concept_7A9DDA71E41543258E5B49B58BC5AE4F

• Question 599:

  A QoS policy on Cisco UCS must meet these requirements:

  1. No-drop class must be configured.

  2. Jumbo frames must be enabled without fragmentation.

  Which configuration must be implemented to mast these conditions?

  A. Configure slow-drain timers and specify an MTU value of 9100 bytes.
  B. Create a Flow Control Policy and specify an MTU value of 9000 bytes.
  C. Create a QoS system class and specify an MTU value of 9216 bytes.
  D. Configure Platinum system class and specify an MTU value of 9100 bytes.
  C. Create a QoS system class and specify an MTU value of 9216 bytes.

• Question 600:

  DRAG DROP

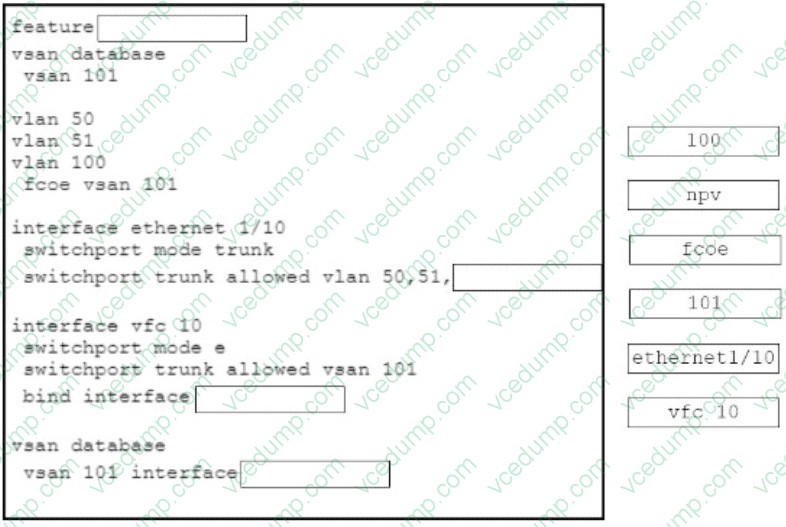

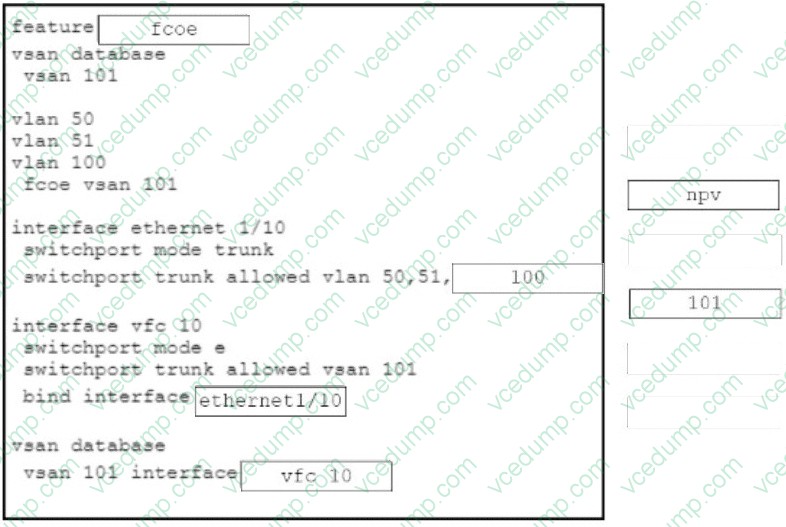

  Refer to the exhibit. Server 1-must establish an FCoE connection with SW1.

  Drag and drop the code snippets from the right onto the boxes in the code to complete the FCoE configuration of SW1. Not all code snippets are used.

  Select and Place:
