Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 581:

  An engineer performs a Cisco UCS C480 ML M5 installation from a Cisco UCS Manager As a part of the design the server must perform an iSCSI bool from the storage array.

  Which configuration must be performed in the SAN settings in the root organization to satisfy that condition?

  A. Implement a WWPN pool
  B. Create a virtual iSCSI vNIC
  C. Enable a host SAN pool
  D. Create an IQN suffix pool
  D. Create an IQN suffix pool

• Question 582:

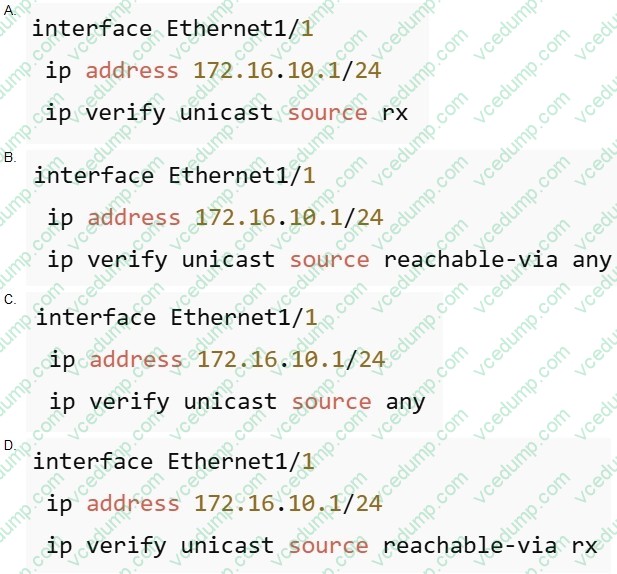

  An engineer must implement Strict Unicast Reverse Path.

  Forwarding mode for IPv4 packets on the Ethernet1/1 interface on the Cisco Nexus 9500 Series Switch.

  Which configuration achieves this goal?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 583:

  An engineer configures multiple blade servers for OS installation.

  The requirements are to use the internal HDDs inside the Cisco UCS blade server and for the OS to remain operational even if one of the HDDs is removed for maintenance. Each blade has two internal HDDs.

  Which two actions must be taken to meet these requirements? (Choose two.)

  A. Set Enforce vNIC/vHBA/iSCSI Name to disabled
  B. Set the Local Disk Policy Mode to RAID 1.
  C. Set the First Boot Order to be Local LUN.
  D. Set Boot Policy Mode to UEFI
  E. Set the Protect Configuration to enabled
  B. Set the Local Disk Policy Mode to RAID 1.
  C. Set the First Boot Order to be Local LUN.

• Question 584:

  A new user with access privileges in the Finance department moves to a new Admin department. The user must have access privileges to the Admin department data and applications inside the Cisco UCS Manager.

  Which set of changes must be implemented in Cisco UCS Central for the user to acquire the privileges?

  A. Create an Admin user account and remove the authentication service for the Finance privileges.
  B. Disable the Finance user account and add the authentication service for the Admin privileges.
  C. Create a new locale Admin and add the Admin department to the Admin locale.
  D. Finance and remove the Finance department from the Finance locale.
  C. Create a new locale Admin and add the Admin department to the Admin locale.

• Question 585:

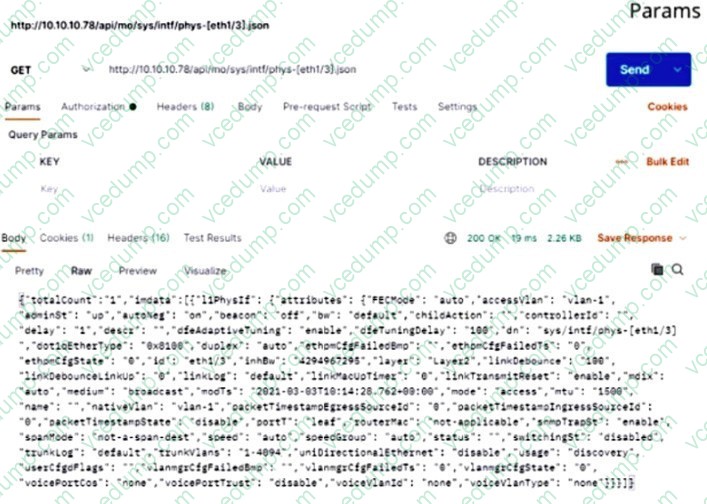

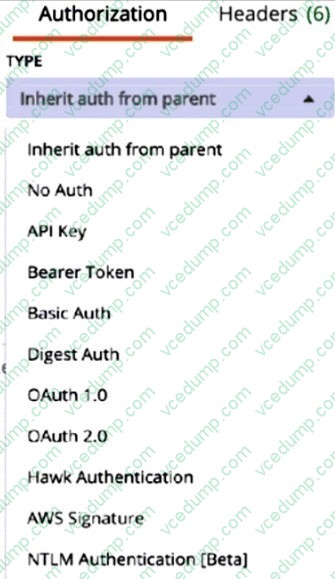

  Refer to the exhibit.





  Which feature must be implemented on postman to receive the response from a cisco nexus 9000 series switch?

  A. API token in the APIC-cookie
  B. username and password in the Nexus-cookie
  C. username and password in the api/mo header
  D. certificate in the HTML Nexus-API header
  A. API token in the APIC-cookie

  ---

  Explanation

  Subsequent operations on the REST API can use this token value as a cookie named APIC-cookie to authenticate future requests

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/3-x/rest-api-config/b_Cisco_APIC_REST_API_Configuration_Guide_3x/b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01.html

• Question 586:

  Which mroute state is created when Bidirectional PIM is deployed at a site?

  A. MVPN Type-6
  B. *,G
  C. MVPN Type-7
  D. S,G
  B. *,G

  ---

  Explanation

  Bidirectional PIM has been invented for networks where we have many sources and receivers talking to each other. PIM Sparse mode RP builds 2 entries *, G and S, G but when we use PIM bidirectional mode, the RP will never build a S,G entry and, it only allow the *,G entry.

  https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipmulti_pim/configuration/xe-16-5/imc-pim-xe-16-5-book/imc-tech-oview.html

  https://networklessons.com/multicast/multicast-bidirectional-pim

• Question 587:

  A cisco mds 9000 series switch must automatically learn about devices and switches connected to a fibre channel interface.

  However a conflicting entry exists in the configuration database.

  Which set of actions activates the configuration database?

  A. Enforce port security Disable auto-learning
  B. Activate port security Enable auto-learning
  C. Disable port security Lock down the fabric
  D. Enable auto-learning Activate port security
  B. Activate port security Enable auto-learning

• Question 588:

  An engineer must ensure fabric redundancy when implementing NPV mode on a Cisco MDS 9000 Series Switch.

  Which action enables fabric redundancy?

  A. Connect the NPV devices to multiple upstream switches.
  B. Add a port channel to upstream switches.
  C. Configure the NPV devices to use on external FLOGI database.
  D. Use TE ports to connect to upstream switches.
  A. Connect the NPV devices to multiple upstream switches.

• Question 589:

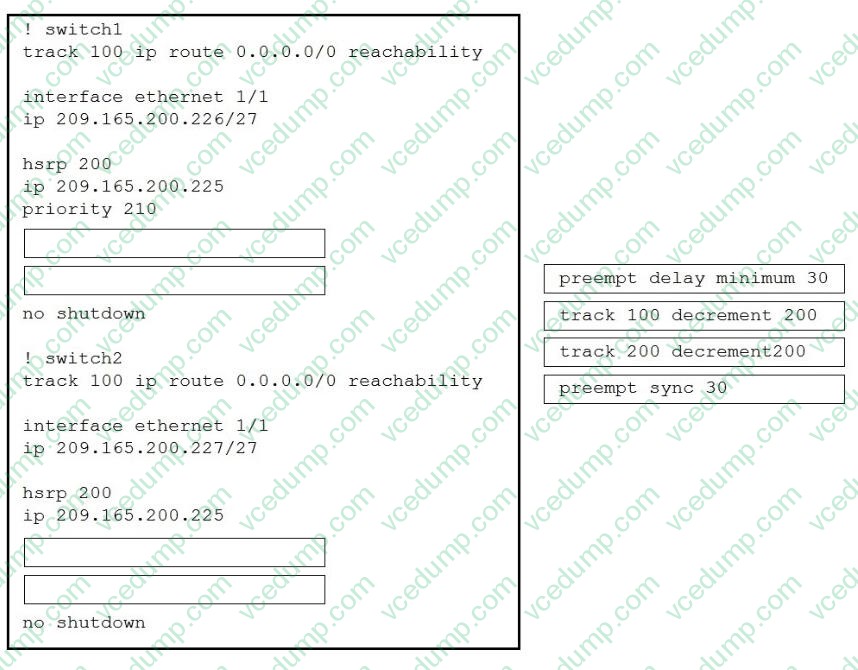

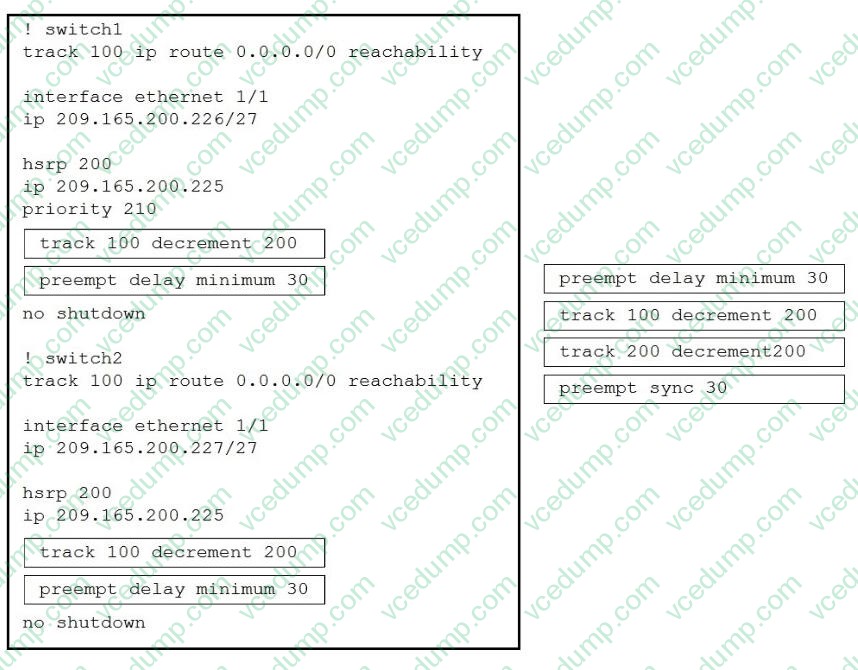

  DRAG DROP

  An engineer must configure the HSRP protocol to implement redundancy using two Cisco Nexus Series Switches In addition, the HSRP must meet these requirements uk.co.certification.simulator.questionpool.PList@1a00c470.

  Drag and drop the configuration commands from the right to the left to meet the requirements. The commands are used more than once. Not all commands are used.

  Select and Place:





• Question 590:

  Which upgrade type must be used to patch a known hardware problem or improve the functionality of modular Cisco Nexus 9000 Series Switches?

  A. POAP
  B. GIR
  C. SMU
  D. EPLD
  D. EPLD
