Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 41:

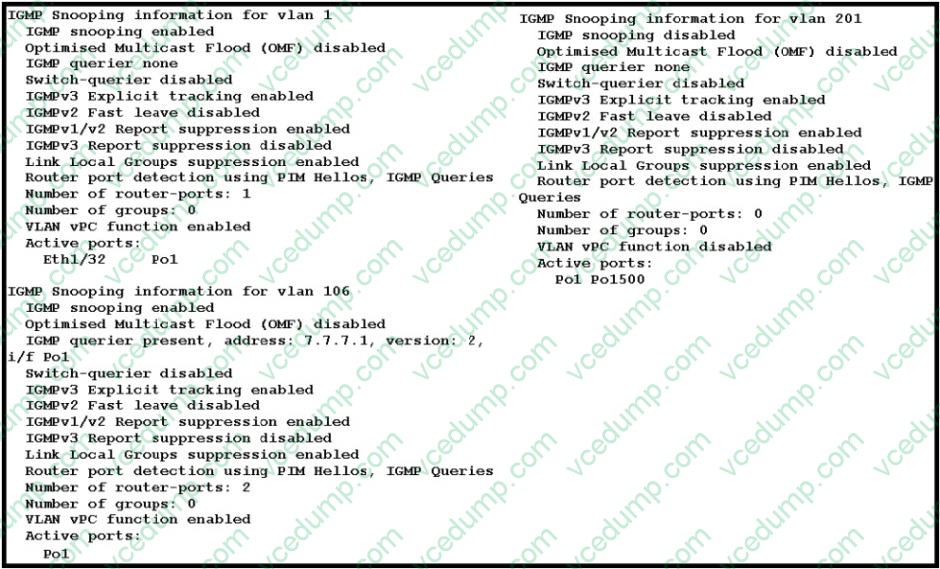

  Refer to the exhibit.



  Which configuration command (or commands) will produce the output that is shown in the exhibit?

  A. no feature igmp
  B. no feature igmp snooping
  C. vlan 201 no ip igmp snooping
  D. vlan configuration 201 no ip igmp snooping
  E. interface vlan 201 no ip igmp snooping
  D. vlan configuration 201 no ip igmp snooping

• Question 42:

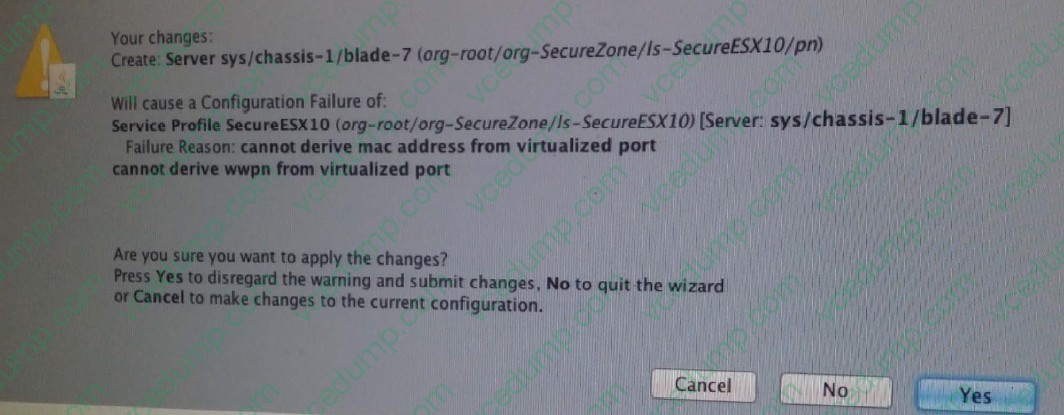

  Refer to the Exhibit.



  Which statement is true?

  A. The service profile in organization IS-SecureESX10 is trying to be associated to chassis 1 blade 7.
  B. The error is triggered when the service profile pn is being associated.
  C. The only way to fix the problem is to delete the service profile and start again with the proper MAC and WWPN pool association.
  D. If you ignore the warning and press Yes, the association fails because no MAC address is assigned.
  D. If you ignore the warning and press Yes, the association fails because no MAC address is assigned.

• Question 43:

  Which command is used to determine if a host has logged in to the Fibre Channel fabric?

  A. show flogi database
  B. show system fc login
  C. show npv flogi-table
  D. show npv fcns database
  E. show interface vfc X flogi
  F. show interface flogi
  A. show flogi database

• Question 44:

  Nexus7000# config t Nexus700(config)# interface 65thernet 2/11 Nexus700(config-if)# switchport mode private-vlan host Nexus700(config-if)# switchport private-vlan host-association 14 50 Nexus700(config-if)# exit Nexus700(config)# What will this command sequence achieve?

  A. associate interface E2/11 to community VLANs 14 and 50
  B. associate interface E2/11 to secondary VLANs 14 and 50
  C. associate interface E2/11 to primary VLAN 50 and secondary VLAN 14
  D. associate interface E2/11 to primary VLAN 14 and secondary VLAN 50
  D. associate interface E2/11 to primary VLAN 14 and secondary VLAN 50

• Question 45:

  Which four statements about NetFlow configuration on the Cisco Nexus 7000 Series switch are true? (Choose four.)

  A. You must configure a source interface. If you do not configure a source interface, the exporter will remain in a disabled state.
  B. You must configure a valid record name for every flow monitor.
  C. If you add a member to a port channel that is already configured for Layer 2 NetFlow, its NetFlow configuration is removed and the Layer 2 configuration of the port channel is added to it.
  D. If you change a Layer 2 interface to a Layer 3 interface, NetFlow configuration on the interface will automatically switch to Layer 3 mode.
  E. Use v9 export to see the full 32-bit SNMP ifIndex values at the NetFlow connector.
  F. NetFlow is a licensed feature and is available only in the LAN_ENTERPRISE_SERVICES_PKG license.
  A. You must configure a source interface. If you do not configure a source interface, the exporter will remain in a disabled state.
  B. You must configure a valid record name for every flow monitor.
  C. If you add a member to a port channel that is already configured for Layer 2 NetFlow, its NetFlow configuration is removed and the Layer 2 configuration of the port channel is added to it.
  E. Use v9 export to see the full 32-bit SNMP ifIndex values at the NetFlow connector.

• Question 46:

  Fault suppression allows you to suppress SNMP trap and Call Home notifications during a planned maintenance period. Which three commands are necessary to activate this suppression polices in Cisco UCS Manager? (Choose three.)

  A. default-chassis-all-maint
  B. default-chassis-phys-maint
  C. default-fex-all-maint
  D. default-FI-phys-maint
  E. default-blade-phys-maint
  F. default-vic-phys-maint
  A. default-chassis-all-maint
  B. default-chassis-phys-maint
  C. default-fex-all-maint

• Question 47:

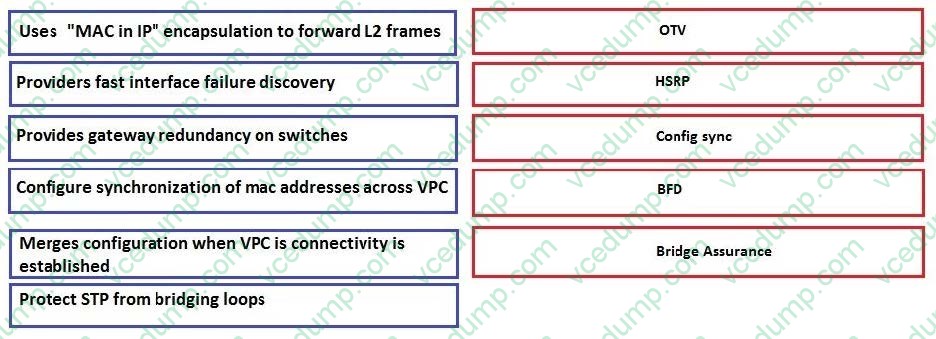

  Drag and drop the correct description on the left onto the protocols and features on the right. Not all options will be used.

  Select and Place:





• Question 48:

  What is the benefit of using Anycast RP via RFC 4610 for IP multicast RP redundancy?

  A. Improves convergence of the multicast network due to enhanced RPF checks
  B. Simplifies the number of control plane protocols over other RP redundancy methods
  C. Eliminates the use of Protocol Independent Multicast (PIM) in the topology
  D. Increases the administrative distances in Multicast Source Discovery Protocol (MSDP) configuration
  B. Simplifies the number of control plane protocols over other RP redundancy methods

• Question 49:

  How many concurrent GUI logins are possible per user account on Cisco UCS Manager?

  A. 128
  B. 96
  C. 64
  D. 32
  D. 32

• Question 50:

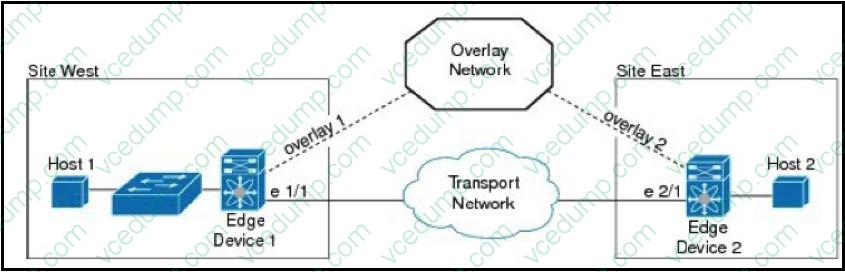

  Refer to the exhibit.



  Which statement about the exhibit is true?

  A. OTV does not extend STP across sites. Each site runs its own STP, rather than including all sites in a large STP domain. This topology also allows the use of different STP modes, such as PVRST+ or MST, in each site.
  B. OTV extends STP across sites. Each site runs its own STP, which includes all sites in a large STP domain. This topology also allows the use of different STP modes, such as PVRST+ or MST in each site.
  C. OTV does not extend STP across sites. Each site runs multiple STPs that include all sites in a large STP domain. This topology also allows the use of different STP modes, such as PerPVRST+ or MST, in each site.
  D. OTV extends STP across sites. Each site runs its own STP, which includes all sites in a large STP domain. This topology does not allow the use of different STP modes, such as PVRST+ or MST, in each site.
  A. OTV does not extend STP across sites. Each site runs its own STP, rather than including all sites in a large STP domain. This topology also allows the use of different STP modes, such as PVRST+ or MST, in each site.
