Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 1:

  Refer to the exhibit.



  A port profile is created in the VSM, but it is not seen in vCenter and cannot be assigned to a virtual machine. Given the configuration in the exhibit, which VSM command will resolve this issue?

  A. vmware port-group
  B. vmware port-active
  C. profile-active
  D. port-group active
  E. shutdown / no shutdown
  A. vmware port-group

• Question 2:

  Which two statements about QoS options in a Cisco UCS environment are true? (Choose two.)

  A. The QoS policy assigns a system class to the outgoing traffic for a vNIC or vHBA.
  B. Flow-control policies determine whether the uplink Ethernet ports in a Cisco UCS environment send and receive IEEE 802.3x pause frames when the send buffer for a port fills.
  C. If no system class is configured as CoS 0, the Fibre Channel system class is used.
  D. The user can configure QoS for these system classes: platinum, gold, silver, best effort, Fibre Channel.
  E. When configuring a system class, the type of adapter in a server may limit the maximum MTU supported.
  A. The QoS policy assigns a system class to the outgoing traffic for a vNIC or vHBA.
  E. When configuring a system class, the type of adapter in a server may limit the maximum MTU supported.

• Question 3:

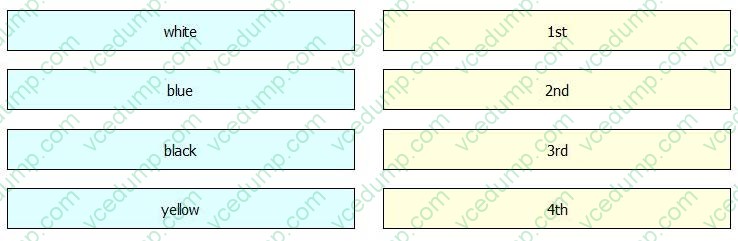

  Drag and drop the DIMM bank color on the left in the correct order of population for a B230 server on the right.

  Select and Place:





• Question 4:

  What is the default MTU for Fibre Channel on Cisco UCS Manager?

  A. 2112
  B. 2240
  C. 2000
  D. 9216
  B. 2240

• Question 5:

  Which statement about NPV on the Cisco Nexus 5000 Series Switches is true?

  A. By default, Cisco Nexus 5000 Series Switches operate in NPV mode. In this mode, the switch providesstandard Fibre Channel switching.
  B. In NPV mode, each switch that joins a SAN is assigned a domain ID. Each SAN (or VSAN) supports amaximum of 239 domain IDs, so the SAN has a limit of 239 switches.
  C. In NPV mode, the edge switch relays all traffic from server-side sports to the core switch. The core switchprovides TE Port functionality to the downstream NPV switch.
  D. In NPV mode, the edge switch appears as a Fibre Channel host to the core switch and as a regular FibreChannel switch to its connected devices.
  D. In NPV mode, the edge switch appears as a Fibre Channel host to the core switch and as a regular FibreChannel switch to its connected devices.

• Question 6:

  Which three concepts influenced the evolution of data centers? (Choose three.)

  A. Consolidation
  B. Expansion
  C. Automation
  D. Virtualization
  E. Commoditization
  F. Economics
  A. Consolidation
  C. Automation
  D. Virtualization

• Question 7:

  Consistency checks and compatibility checks are performed before a vPC is created. During a compatibility check, one vPC peer conveys configuration information to the other vPC peer to verify that vPC member ports can actually form a port channel. Which option is considered as a Type-2 misconfiguration?

  A. port MTU mismatch
  B. native VLAN mismatch
  C. STP interface settings
  D. VLAN mismatch
  D. VLAN mismatch

• Question 8:

  Which four options describe benefits of the global load-balancing solution? (Choose four.)

  A. device status within the data center
  B. performance granularity
  C. centralized client access
  D. intelligent traffic management
  E. reacts quickly for availability only
  F. server monitoring statistics
  G. round robin support only for load-balancing
  A. device status within the data center
  B. performance granularity
  D. intelligent traffic management
  F. server monitoring statistics

• Question 9:

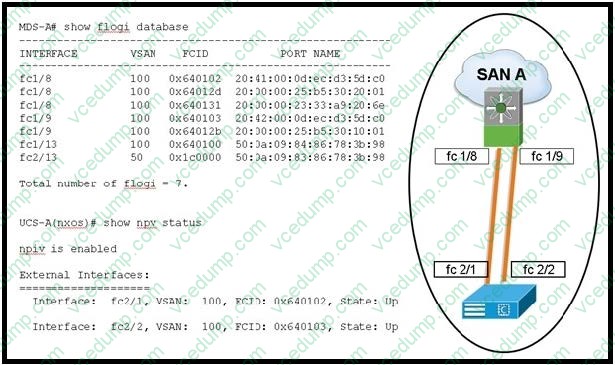

  Refer to the exhibit.



  Which two statements about the exhibit are true? (Choose two.)

  A. The domain ID for SAN A is 0x64.
  B. fc1/8 and fc1/9 on the MDS-A are configured as E Ports.
  C. fc1/8 and fc1/9 on the MDS-A are configured as TE Ports.
  D. fc1/8 and fc1/9 on the MDS-A are configured as F Ports.
  E. FC trunking is enabled on the Fabric Interconnect.
  F. The domain ID for SAN A is 0x640.
  A. The domain ID for SAN A is 0x64.
  D. fc1/8 and fc1/9 on the MDS-A are configured as F Ports.

• Question 10:

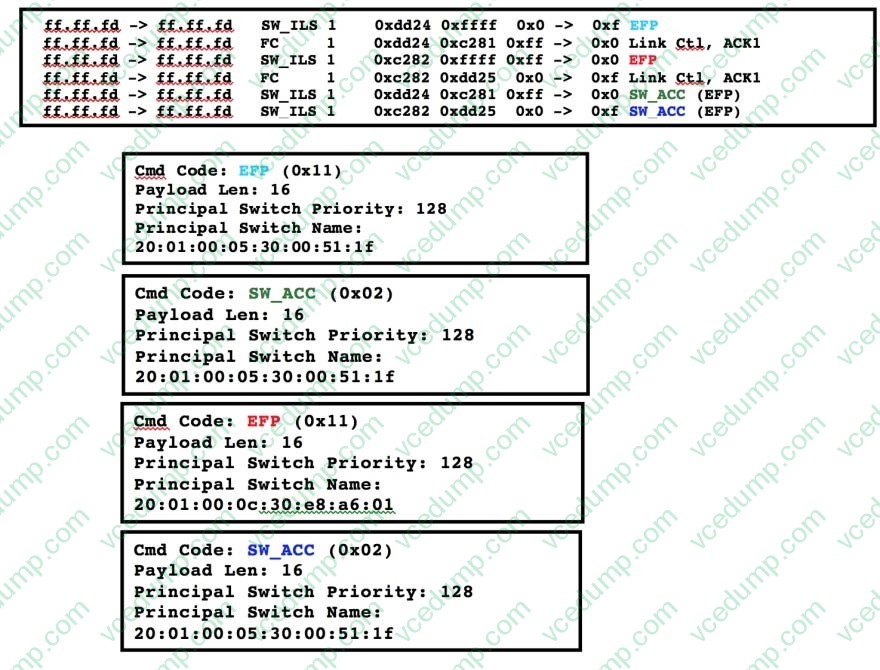

  Refer to the exhibit.



  The customer has a one-switch fabric, and is connecting another switch. From the Fibre Channel Analyzer output in the exhibit, identify who is the principal switch in this two-switch fabric?

  A. The principle switch is the switch that sent the first EFP in the trace.
  B. The principle switch is the switch that sent the second EFP in the trace.
  C. The EFP frame is not used to determine principal switch selection. Principal switch selection is decided earlier in the ISL link initialization process.
  D. The principle switch cannot be identified from the information given in the exhibit.
  A. The principle switch is the switch that sent the first EFP in the trace.
