Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 31:

  In the Cisco FabricPath domain, one switch becomes the root for the multidestination tree. Cisco FabricPath switches compares which three parameters to select the root? (Choose three.)

  A. Root priority
  B. System ID
  C. Bridge ID
  D. Switch ID
  E. Port ID
  F. Subswitch ID
  A. Root priority
  B. System ID
  D. Switch ID

• Question 32:

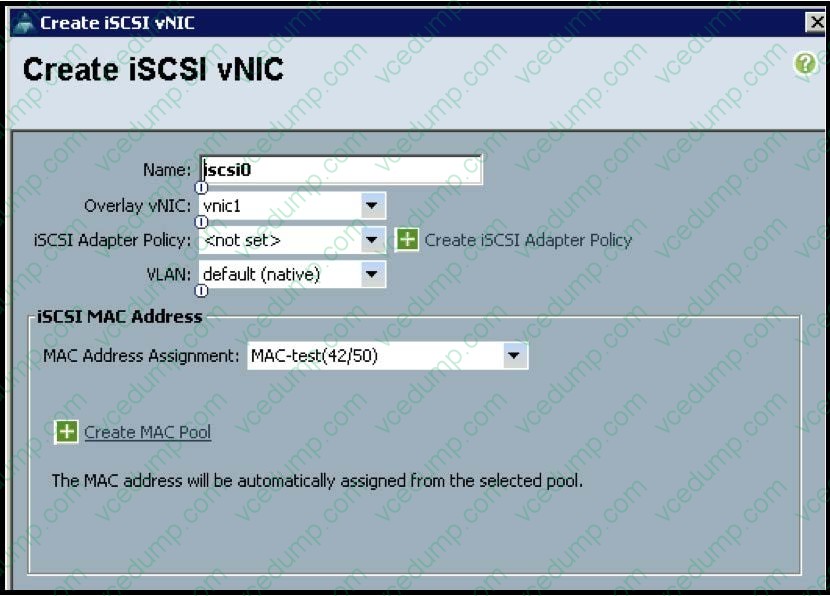

  Refer to the exhibit.



  You are setting up a service profile to iSCSI boot using a Cisco UCS VIC 1240. The service profile returns a configuration error when you attempt to associate it. What is the problem, based on the exhibit?

  A. The iSCSI adapter policy is not set.
  B. iSCSI boot will not work with the default VLAN.
  C. The default VLAN should not be set as native on the overlay vNIC.
  D. The MAC address assignment is invalid.
  D. The MAC address assignment is invalid.

• Question 33:

  How are IP multicast IGMP entries synchronized between vPC peers?

  A. IGMP is not synchronized between vPC peers
  B. Cisco Fabric Service carries IGMP entries across the vPC peer link C. IP ARP synchronization under the vPC domain configuration also synchronizes IGMP
  D. IGMP is flooded to the L2 domain, and there is no need to synchronize it between vPC peers
  B. Cisco Fabric Service carries IGMP entries across the vPC peer link C. IP ARP synchronization under the vPC domain configuration also synchronizes IGMP

• Question 34:

  A customer would like to monitor traffic that is being sent to a specific virtual machine named VM001 using SPAN. The customer has another virtual machine configured as a sniffer host called VM002. What configuration is required, and what other changes will need to be made? (Choose two.) VSM-PRI-188# 71thern vethernet 5 Vethernet5 is up Port description is VM001, Network Adapter 2 HardwarE. Virtual, address: 0050.56b0.001e (bia 0050.56b0.001e) Owner is VM "VM001", adapter is Network Adapter 2 Active on module 5 Vmware DVS port 484 Port-Profile is VM-vlan-10 Port mode is access VSM-PRI-188# 71thern vethernet 6 Vethernet6 is up Port description is VM002, Network Adapter 1 HardwarE. Virtual, address: 0050.56b0.0020 (bia 0050.56b0.0020) Owner is VM "VM002", adapter is Network Adapter 1 Active on module 5 Vmware DVS port 485 Port-Profile is VM-vlan-10 Port mode is access

  A. Monitor session 1 type span Source interface veth5 both Destination interface veth6 No shut
  B. monitor session 1 source vlan 10 destination interface veth6 no shut
  C. monitor session 1 type er-span source interface vlan 10 destination ip 10.1.1.10 no shut
  D. VM002 must be removed from the Nk1V
  E. Move VM002 to Module 5
  F. Restart the VEM on module 5
  A. Monitor session 1 type span Source interface veth5 both Destination interface veth6 No shut
  E. Move VM002 to Module 5

• Question 35:

  Which type of port profile is used to dynamically instantiate vEth interface on the Cisco Nexus 5000 Series switch

  A. profile-veth
  B. vethernet
  C. vethinterface
  D. dynamic-interface
  B. vethernet

• Question 36:

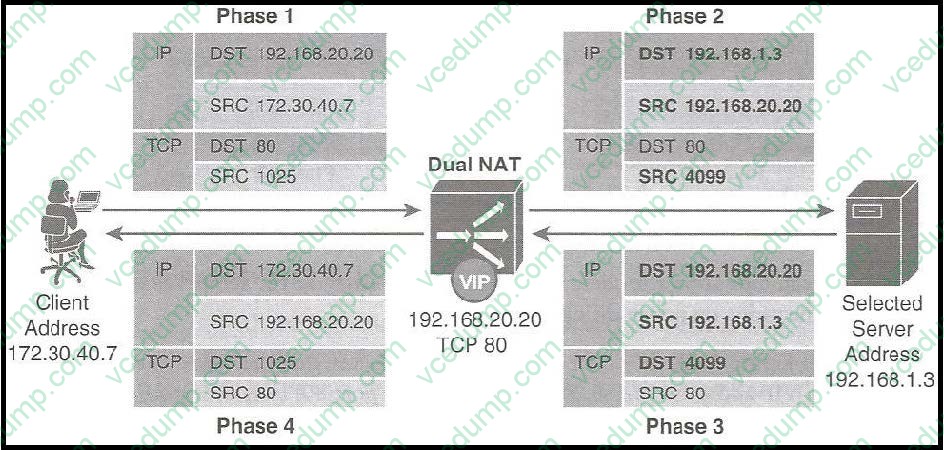

  Refer to the exhibit.



  Which type of address-port translation is shown?

  A. server NAT
  B. dual NAT
  C. port redirection
  D. transparent mode
  B. dual NAT

• Question 37:

  Given an E3 WAN link, which mode of compression would be the most appropriate choice?

  A. Mode high
  B. Mode medium
  C. Mode low
  D. Mode 1
  E. Mode 2
  D. Mode 1

• Question 38:

  What is the main function of the device-alias distribute command?

  A. This command distributes the device alias configuration on the existing switch to all the other switches in the Cisco Fabric Services region.
  B. This command enables distribution and will send the configuration after a commit is executed.
  C. This command changes the distribution mode for device aliases.
  D. There is no such command.
  B. This command enables distribution and will send the configuration after a commit is executed.

• Question 39:

  vPath is a critical component in the VNS architecture. Which two are functions of vPath? (Choose two.)

  A. intelligent traffic steering to the VSG
  B. offloading the processing from the VSG to the VEM
  C. intelligent traffic steering to the VNMC
  D. offloading the processing from the VSG to the flow manager
  E. deep packet inspection
  A. intelligent traffic steering to the VSG
  B. offloading the processing from the VSG to the VEM

• Question 40:

  When configuring unified ports on a 5548 switch, which port ordering must be respected? (Choose two.)

  A. Fibre Channel ports must be configured from the first port in the module.
  B. Ethernet ports must be configured from the last port in the module.
  C. Fibre Channel ports must be configured from the last port in the module.
  D. Ethernet ports must be configured from the first port in the module.
  C. Fibre Channel ports must be configured from the last port in the module.
  D. Ethernet ports must be configured from the first port in the module.
