Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

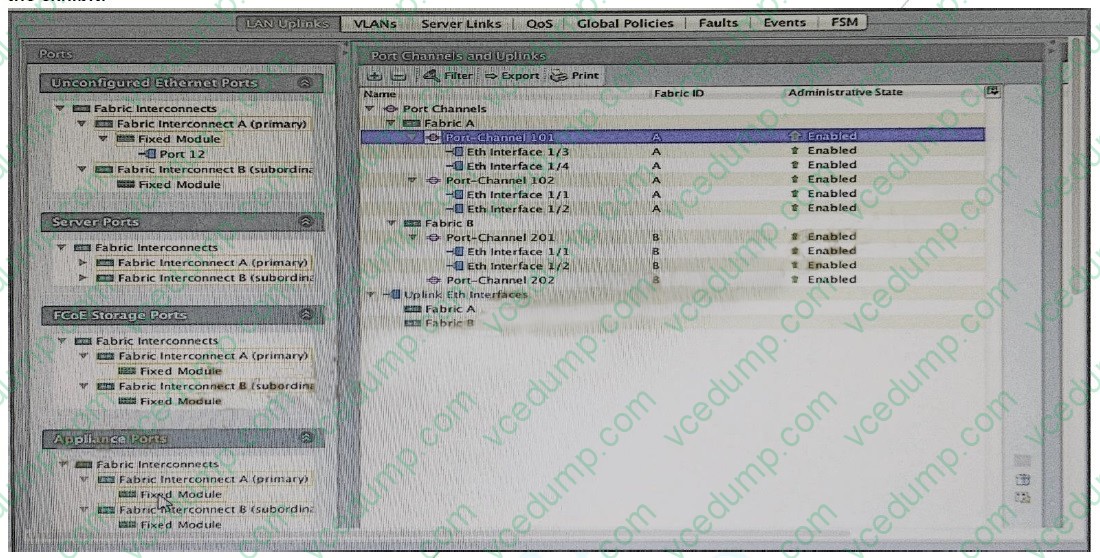

• Question 161:

  Refer to the exhibit.



  Which two statements are true? (Choose two)

  A. No server ports are configured.
  B. Four port channels are configured and they all are up.
  C. One port is not configured.
  D. No uplink ports are configured.
  E. Two appliance ports are configured.
  B. Four port channels are configured and they all are up.
  C. One port is not configured.

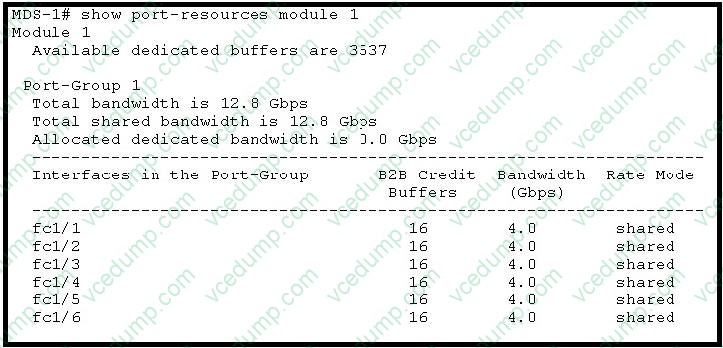

• Question 162:

  Refer to the exhibit.



  What action must be taken to make fc1/1 capable of being an ISL port channel member operating at 4 GB?

  A. One of the interfaces between fc1/2 and fc1/6 must be placed in out-of-service mode to free up bandwidth in the port group so that fc1/1 can use that bandwidth.
  B. Interface fc1/1 must be placed into dedicated rate mode.
  C. The B2B credit value of interface fc1/1 must be raised to a minimum of 100.
  D. No action is necessary because shared rate mode ports are fine for ISLs.
  E. No action is possible because module 1 is oversubscribed and will only support ISLs if the ports operate at 2GBs.
  B. Interface fc1/1 must be placed into dedicated rate mode.

• Question 163:

  From the Cisco UCS CLI, how do you verify which uplink ports a blade server is using for its network connectivity?

  A. UCS-A# show pinning border-interfaces
  B. UCS-B# show service-profile circuit
  C. UCS-B(nxos)# show pinning server-interfaces
  D. You must statically configure which uplink the blades should use, or you will not have connectivity.
  C. UCS-B(nxos)# show pinning server-interfaces

• Question 164:

  Which trancseiver allows 40 GB Ethernet Connectivity by leveraging a single pair of multimode fibers?

  A. OSFP-40G-SR4
  B. OSFP-H40G-CU
  C. FET-40G
  D. QSFP-40G-SR-BD
  D. QSFP-40G-SR-BD

• Question 165:

  Which two are benefits of using remote AAA services for Cisco Nexus products? (Choose two.)

  A. They make it easier to manage user logins and passwords across devices.
  B. They enable automated configuration backup for devices.
  C. They centrally manage user attributes and permissions.
  D. Local console access is never included in AAA and can be used for access when the AAA servers are down.
  A. They make it easier to manage user logins and passwords across devices.
  C. They centrally manage user attributes and permissions.

• Question 166:

  Which statement describes the FIP function of the FCoE Initiation Protocol?

  A. It is required to establish the point-to-point FCoE links with the first switch in the path.
  B. It is required to establish the point-to-point FCoE links with any switch across multiple Ethernet segments.
  C. It is not used to build the FCoE links.
  D. It is used to ensure lossless transport.
  B. It is required to establish the point-to-point FCoE links with any switch across multiple Ethernet segments.

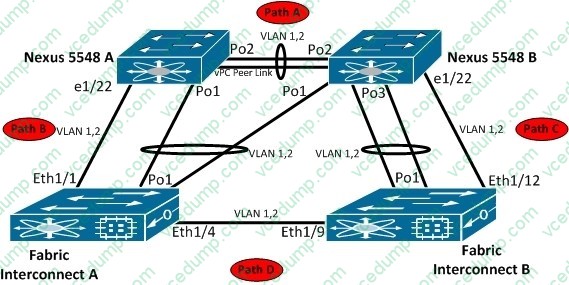

• Question 167:

  Refer to the exhibit.



  The Cisco UCS domain is operating in switching mode. A network administrator notices that no traffic is traversing the uplinks on Fabric Interconnect B (Path C).

  Which actions might be used to change this behavior?

  A. Fix the port channel configuration between Fabric Interconnect B and Nexus 5548 B as the port channel IDs do not match.
  B. Modify the bridge priority on the fabric interconnects so that one of the Nexus 5548s will always be the root bridge.
  C. Modify the bridge priority on the Nexus 5548s so that one of them will always be the root bridge.
  D. Modify the port priorities on the fabric interconnect uplinks (Paths B and C) so that they are a higher priority than ports Eth1/4 and Eth1/9 (Path D).
  E. This is an invalid configuration as Cisco UCS fabric interconnects cannot be directly connected.
  C. Modify the bridge priority on the Nexus 5548s so that one of them will always be the root bridge.

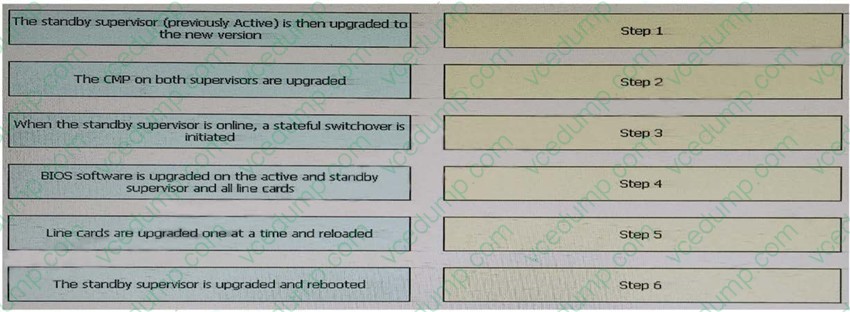

• Question 168:

  Drag and drop the sequence of the steps on left for ISSU software upgrade of dual supervisor switches to achieve a nondisruptive upgrade on the right.

  Select and Place:





• Question 169:

  DCNM device discovery is done by connecting to Cisco NX-OS devices and doing which three of these? (Choose three.)

  A. Collecting the running configuration
  B. Raising the logging level to meet the minimum requirement
  C. Discovering all devices by default
  D. Discovering devices using multiple user accounts as long as they are administrator-level accounts
  E. Using LLDP to discover network adaptors
  A. Collecting the running configuration
  B. Raising the logging level to meet the minimum requirement
  E. Using LLDP to discover network adaptors

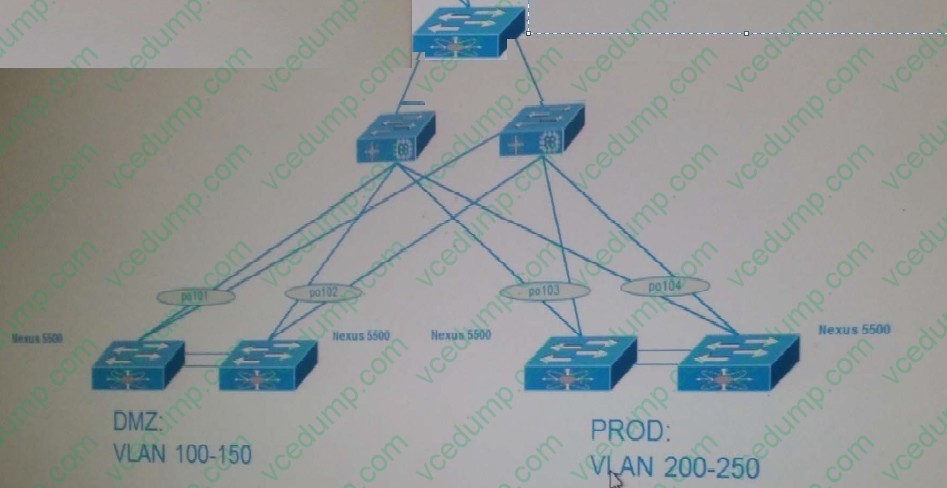

• Question 170:

  Refer to me exhibit.



  Which two statements are true? (Choose two.)

  A. VLAN segregation should be configured in Cisco UCS using VLAN Manager.
  B. VLAN segregation should be configured in Cisco UCS using PVLANs.
  C. when I hear segregation I think PVLANS
  D. The Fabric Feature cannot be used in this topology under any circumstances.
  E. Service profiles should contain a single vNIC per fabric, trunking VLAN 100-250.
  F. Not sure about a single vNIC but the other option says two NICS and service profiles use vNICS. Also you can configure multiple vlans per VNIC and enable fabric failover for the redundancy.
  G. service profiles should contain two NICs per fabric, with one trunking VLAN 100-150 and another trunking VLAN 200-250.
  H. VLAN segregation should be configured in Cisco UCS using pin groups.
  B. VLAN segregation should be configured in Cisco UCS using PVLANs.
  D. The Fabric Feature cannot be used in this topology under any circumstances.
