Cisco CCNP 300-615 Questions & Answers

• Question 41:

  Refer to the exhibit.



  An engineer monitors a Cisco UCS server logs and discovers a blade discovery issue. Which procedure resolves the issue?

  A. 1. Verify the server power module.

  2.

  Decommission the faulty module.

  3.

  Insert a new power module.

  4.

  Recommission the new module.

  B. 1. Verify that server platform power is failed

  2.

  Resolve the platform power issue.

  3.

  Reboot the server.

  4.

  Recommission the server.

  C. 1. Verify the FSM status on the server.

  2.

  Decommission the impacted server.

  3.

  Reset the slot where the server is located.

  4.

  Recommission the server.

  D. 1. Verify that the power on self-test operation is failed.

  2.

  Verify that the server firmware is corrupted.

  3.

  Decommission the server firmware

  4.

  Recommission the server with new firmware.

  Correct Answer: C

  Reference: https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/unified-computing-system/214047-troubleshooting-ucs-blade-discovery-issu.pdf

• Question 42:

  Refer to the exhibit.



  A blade that is connected to FI-B fails to boot from a SAN LUN. The boot policy is configured to boot by using vHBA1 as the SAN Primary. Which set of actions resolves the issue?

  A. Set VSAN to 20 in vHBA_SAN_B Template. Configure ESX01_B zone to VSAN 20.

  B. Set ESX01_B zone to VSAN 20. Create a new vHBA and assign VSAN 20.

  C. Change vHBA1 to VSAN 20 in Service Profile. Apply VMware Adapter Policy on vHBA1.

  D. Apply VMware Adapter Policy on vHBA1. Change vHBA1 to VSAN 20 in Service Profile.

  Correct Answer: A

• Question 43:

  Refer to the exhibit.



  A network administrator must provide Bash shell access to the support team for all of the Cisco Nexus 9000 Series Switches. The newly created user that is named "bashusers" fails to access the Bash shell. Which action resolves the issue?

  A. Associate bashusers with the Cisco NX-OS network-operator role and activate the bash-shell feature.

  B. Associate bashusers with the Cisco NX-OS vdc-admin role and activate the nxapi feature.

  C. Associate bashusers with the Cisco NX-OS network-admin role and activate the guestshell feature.

  D. Associate bashusers with the Cisco NX-OS dev-ops role and activate the bash-shell feature.

  Correct Answer: D

• Question 44:

  Refer to the exhibit.



  The administrator set up two pairs of Cisco Nexus switches. The administrator set dfferent vPC priorities on all four Nexus switches. As soon as the administrator activates the vPC between the two pairs the network faces different issues. The problems range from both Nexus pairs declare themselves as root bridge, as well as spanning-tree inconsistencies and traffic forwarding issues. Which action resolves these issues?

  A. Change the role priority on one pair.

  B. Configure peer-config-check-bypass on both pairs.

  C. Configure a vPC peer link between both peers.

  D. Change domain ID on one pair to a diferent ID.

  Correct Answer: D

• Question 45:

  Refer to the exhibit.



  UCS-1 fails to connect to the storage array. Which action resolves the issue?

  A. Set the FI-A mode to FC End Host mode.

  B. Enable N9K-1 mode to N-Port ID Virtualization.

  C. Configure N-Port ID Virtualization on FI-A.

  D. Implement N-Port Mirtualization on N9K-1.

  Correct Answer: B

• Question 46:

  Refer to the exhibit.

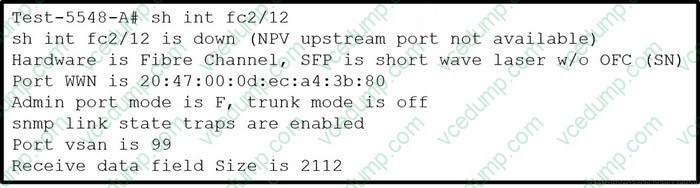

  An engineer configures the server port on a Cisco Nexus 5000 Series Switch. The switch connects to an NPV edge switch port. The server fails to send the FC traffic to the fabric. Which action resolves the issue?

  A. Enable the NPIV mode on the Cisco Nexus 5000 switch.

  B. Match the VSAN membership on both ends of the connection.

  C. Configure the BB_credit buffer on the uplink port.

  D. Replace the SFP in slot fc2/12.

  Correct Answer: B

• Question 47:

  Refer to the exhibit.



  An engineer fails to implement a Cisco UCS Manager integration manager. The credentials and IP connectivity between Cisco APIC and UCS Manager are configured as expected. Which action resolves the issue?

  A. Disable HTTP to HTTPS redirection in Cisco UCS Manager

  B. Enable JSON API on the Cisco UCS Manager

  C. Change the Integration Manager name to FQDN of the Cisco UCS Manager

  D. Install ExternalSwitch app in the APIC controller

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4- x/virtualization/Cisco-ACI-Virtualization-Guide-411/Cisco-ACI-Virtualization-Guide-411_chapter_01110.html

• Question 48:

  Refer to the exhibit.



  A Cisco UCS B-Series Blade Server is configured to boot from a shared storage via an iSCSI network. When a service profile is associated with the blade, the blade fails to attach the LUN. Which action resolves the issue?

  A. Place VLAN 0 on the interface that connects to the storage

  B. Register the blade as an initiator on the storage array

  C. Implement a Layer 3 connection between the blade and the storage

  D. Establish a Layer 2 connection between the blade and the storage

  Correct Answer: D

  Reference: https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs- manager/116003-iscsi-ucs-config-00.html

• Question 49:

  Refer to the exhibit.



  A certificate is implemented on the security configuration on the Cisco ACI controller. A customer receives a "Connection Not Secure" error in a browser every time the customer logs in to the Cisco APIC GUI. Which action resolves the issue?

  A. Add a 1536-bit key to the APIC GUI.

  B. Include a private key with the certificate.

  C. Use a browser that supports keys of 2048 bits.

  D. Configure a corporate certificate authority for the certificate.

  Correct Answer: D

• Question 50:

  Refer to the exhibit.



  A recent configuration change removes the HSRP adjacency between the SW-1 and SW-2 Cisco Nexus switches. The change causes the servers on this subnet to lose Internet access. Which action restores the connectivity of all servers on VLAN 13?

  A. Set the HSRP password on SW-2.

  B. Set the HSRP priority to 70 on SW-1.

  C. Disable HSRP IP redirects on SW-1.

  D. Activate HSRP preempt on SW-2.

  Correct Answer: A
