Cisco CCNP 300-615 Questions & Answers

• Question 31:

  Refer to the exhibit.



  The EEM applet must generate a syslog message when a BGP adjacency flaps. This message must be displayed to the console of the switch. However, when a BGP adjacency failure is simulated, no syslog message is displayed. Which action resolves the issue?

  A. Add the event-default action statement.

  B. Modify the policy to use the snmp trap action.

  C. Adjust the policy to match an SNMP OID.

  D. Set the logging priority to Wamings.

  Correct Answer: D

• Question 32:

  A network engineer troubleshoots an issue at a Cisco data center environment with these conditions:

  1.

  The data center has Cisco Nexus 9000 Series Switches running the vPC setup.

  2.

  The gateway of the servers is an HSRP IP address between the VLAN interfaces configured on both Cisco Nexus switches.

  3.

  Some of the client application servers are implementing fast-path forwarding for the return traffic.

  4.

  Those servers are sending the return traffic to the VLAN interface MAC address instead of the HSRP MAC address.

  The network engineer discovers that some traffic is dropped because it passes the vPC peer link to be forwarded out the vPC interface. What must be configured on the vPC switches to resolve the issue?

  A. peer-switch

  B. peer-gateway

  C. arp synchronize

  D. spanning-tree

  Correct Answer: B

• Question 33:

  Refer to the exhibit.



  The monitoring team reports an inability to access the devices after a new centralized management integration. Which action resolves the issue?

  A. Enable SHA authentication for the admin user

  B. Update the community string

  C. Modify the SNMP ACL to allow the incoming request packets

  D. Change the admin user permissions to write

  Correct Answer: B

• Question 34:

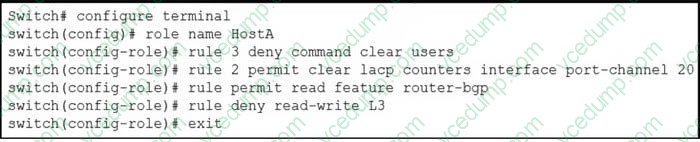

  Refer to the exhibit.



  A network administrator must delete a feature group from a Cisco Nexus 5000 Series Switch. Which action resolves the issue?

  A. Detach the association with the no rule command within the role configuration mode

  B. Detach the association with the no role command within the feature-group configuration mode

  C. Detach the association with the no rule command within the feature-group configuration

  D. Detach the association with the no role command within the role configuration mode

  Correct Answer: A

• Question 35:

  Refer to the exhibit.



  A customer network uses OSPFv2 and MP-BGP protocols A network administrator installs a new Cisco Nexus Switch in the data center but experiences a BGP RIB failure Which action solves the issue?

  A. Change the administrative distance of OSPF to 220

  B. Configure the route as a BGP backdoor

  C. Use a filter list for OSPF to filter both routes

  D. Implement next-hop-self

  Correct Answer: D

• Question 36:

  Refer to the exhibit.



  An engineer must connect N2K-Fex-1 and N5K-Core-1 so that the traffic flow between the two devices uses load balancing. After inspecting the statistics of the interconnecting interfaces, the engineer concludes that only one link is used. Which action resolves the problem?

  A. Configure source-destination load balancing on N5K-Core-1.

  B. Configure each uplink to be a member of a separate LACP port channel.

  C. Configure the pinning max-link as 2.

  D. Configure destination-mac load balancing on N5K-Core-1

  Correct Answer: C

  https://www.cisco.com/c/m/en_us/techdoc/dc/reference/cli/n5k/commands/pinning-max- links.html



• Question 37:

  Refer to the exhibit.



  An administrator directly connects a Fibre Channel storage array to ports 1 through 4 on a Cisco UCS 6454 Fabric Interconnect. The administrator configures a service profile to boot directly from the new Fibre Channel storage array, but the service profile fails to boot. When the administrator checks the output of the show flogi database command on the fabric interconnect, it shows the output presented in the exhibit. Which action resolves the issue?

  A. Configure the Zoning Type in vHBA Initiator Group as Multiple Initiator Multiple Target.

  B. Configure the fabric interconnects in Fibre Channel end-host mode.

  C. Configure the Zoning Type in vHBA Initiator Group as Multiple Initiator Single Target.

  D. Configuare the fabric interconnects in Fibre Channel switch mode.

  Correct Answer: D

• Question 38:

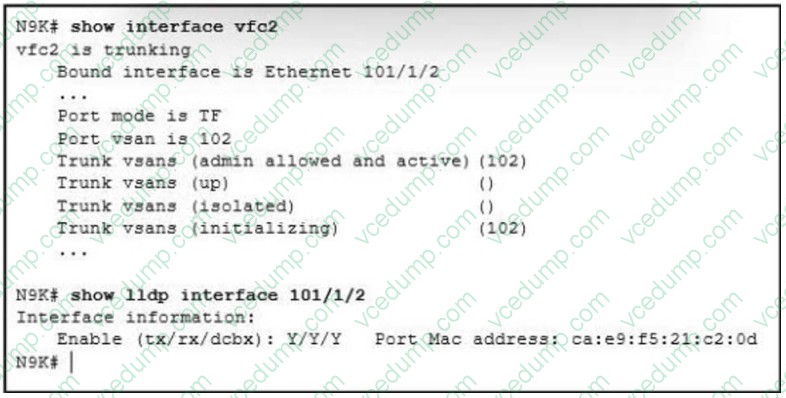

  Refer to the exhibit.



  The FCoE traffic fails to traverse the vfc2 interface. The VSAN 102 is configured for vfc2. Which action resolves the issue?

  A. Enable LLDP on the interface vfc2

  B. Activate DCBX on the N9K switch

  C. Activate DCBX on the interface e101/1/2

  D. Enable LLDP on the neighbor switch

  Correct Answer: D

• Question 39:

  Refer to the exhibit.



  The expected routes are not being leaked as expected from VRF RED to VRF BLUE. Which action resolves the issue?

  A. Include the "le 32" knob under the RED_TO_BLUE_ACL prefix list.

  B. Change the route targets under the VRFs.

  C. Configure VRF BLUE under the BGP configuration.

  D. Set the community to 65000:65000 under the route map.

  Correct Answer: D

• Question 40:

  Refer to the exhibit.



  The OTV overlay is deployed in multicast mode. After an unexpected reload of N7K-SITE1- OTV1, the network administrator observed that on N7K-SITE1-OTV2 the OTV site adjacency went into the partial state. Which action resolves the issue?

  A. Change the Site-VLAN on N7K-SITE1-OTV2 to VLAN 1.

  B. Enable IP IGMP version 3 on the join interface on N7K-SITE1-OTV1.

  C. Configure the Site-Identifier on N7K-SITE1-OTV1 to 0002.0002.0002.

  D. Modify the multicast data-group on N7K-SITE1-OTV1 to match N7K-SITE1-OTV2.

  Correct Answer: B
