Cisco CCNP 300-615 Questions & Answers

• Question 11:

  Refer to the exhibit.



  customer reports that all Intra-EPG isolation stopped working within a bare-metal tenant. Postman is running on a machine to get information from the APIC in case of orchestration failure. Which action resolves the issue?.

  A. Match encap="vlan-10" and primaryEncap="vlan-110"

  B. Change pcEnfPref="unenforced" to pcEnfPref="enforced"

  C. Remove primaryEncap="vlan-110" from the specific port path

  D. Modify the GET command to reference the valid path for the managed object

  Correct Answer: C

• Question 12:

  Refer to the exhibit.



  The scheduler job fails to run. Which action resolves the issue?

  A. Change the file name.

  B. Configure the authentication credentials.

  C. Configure the authentication credentials.

  D. Change the TFTP server address.

  Correct Answer: D

• Question 13:

  A network engineer finds an error that says, "BIOS failed power-on self-test." When the engineer checks the console, they discover that the Cisco UCS Blade firmware upgrade process stopped at the "Configuring and testing memory" stage.

  Which set of actions resolves the issue?

  A. 1. Add the CIMC firmware on a server.

  2. Initialize the CIMC firmware on a server.

  B. 1. Update the BIOS firmware on a server.

  2. Activate the BIOS firmware on a server

  C. 1. Create a new host firmware package.

  2. Assign the host firmware package to the service profile template.

  D. 1. Upgrade the firmware on an adapter.

  2. Enable the firmware on an adapter.

  Correct Answer: B

• Question 14:

  What does this adapter output indicate? adapter 1/6/1 (fls): 2# lunlist 9 vnic: 9 lifid: 6

  -FLOGI State : flogi est (fc_id Oxac0e04)

  -PLOGI Sessions

  -WWNN 50:0a:09:83:8d:53:43:44 WWPN 50:0a:09:83:8d:53:43:44 fc_id 0x000000

  -LUN's configured (SCSI Type, Version, Vendor, Serial No.)

  -LUN ID: Ox0000000000000000 access failure -REPORT LUNs Query Response

  -

  Nameserver Query Response -WWPN: 54:b1:6a:94:64:3e:73:44

  A.

  The configured initiator LUN ID does not match the configured target LUN ID

  B.

  The target device configuration does not allow the initiator to access the LUN

  C.

  The port types between the target and initiator are incorrectly configured

  D.

  The target of the configured zone does not match the target of the configured boot order

  Correct Answer: D

• Question 15:

  Refer to the exhibit.

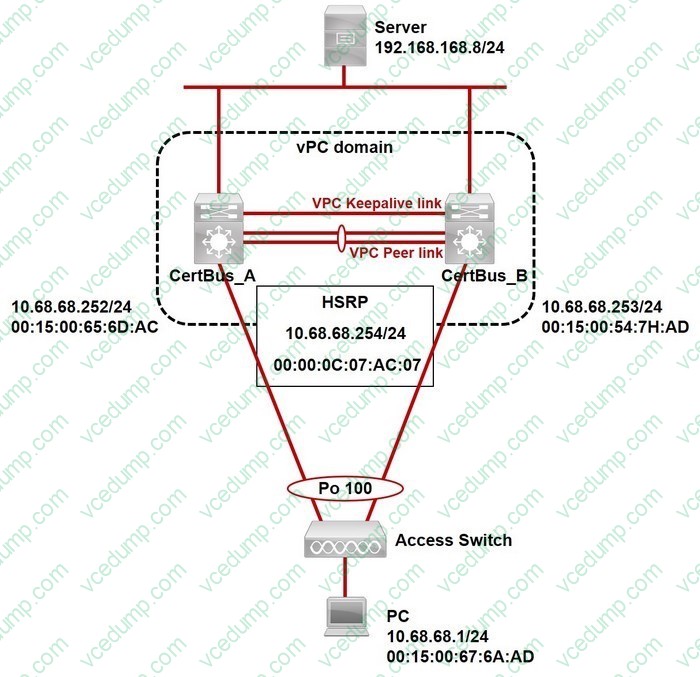

  During a maintenance window of the Nexus switch pair, one of the Cisco Nexus chassis was brought offline for maintenance. The primary Cisco Nexus switch was stable during the maintenance window. After finishing the tasks on the chassis, the administrator wanted to bring the second switch online. The administrator checked the status of the disconnected switch that was removed from the vPC during the maintenance. The engineer must connect the peer chassis seamlessly with the primary vPC peer without experiencing traffic interruption. Which action accomplishes this goal?

  A. Change the auto recovery to disabled, and enable auto recovery.

  B. Change the auto recovery timer to active if not already set, then re-establish the connectivity.

  C. Change the auto timer to a higher value, then connect the peer switch.

  D. Change the role priority, then connect the peer switch.

  Correct Answer: D

• Question 16:

  Refer to the exhibit.

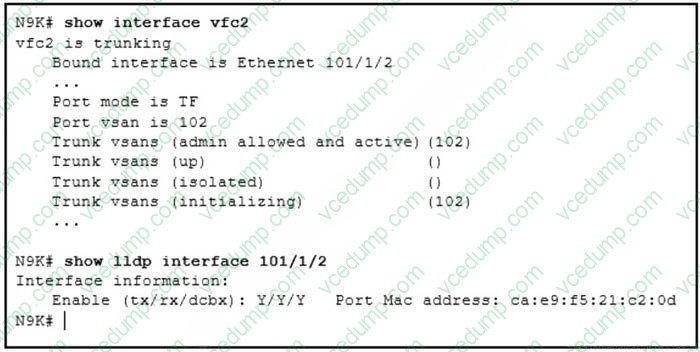

  A network engineer notices packet drops on FCoE traffic from the servers. Which action resolves the issue?

  A. Apply flowcontrol receive on the interface.

  B. Apply flowcontrol transmit on the interface.

  C. Enable priority flow control on the interface.

  D. Disable priority flow control on the interface.

  Correct Answer: C

• Question 17:

  Refer to the exhibit.



  A network engineer configures OSPF protocol between two Cisco Nexus 7000 Series Switches. The OSPF neighbors fail to synchronize OSPF databases. Which action resolves the issue?

  A. Match the OSPF area between the two devices.

  B. Configure the IP addresses of the interface in the same subnet.

  C. Change the OSPF area type to 2 on n7k-1.

  D. Set the same MTU values on both sides of the link.

  Correct Answer: D

• Question 18:

  A Cisco UCS C-Series Server powers off due to a power outage. The server should turn on when the power is restored with a fixed delay of 3 minutes. However, it remained powered off for more than 3 minutes after the engineer powered it back online. Which two actions resolve the issue? (Choose two.)

  A. Configure the power-restore-policy.

  B. Configure the power restore last-state policy.

  C. Set the delay value to 180.

  D. Set the delay fixed value to 3.

  E. Configure power sync policy.

  Correct Answer: BC

• Question 19:

  Refer to the exhibit.



  A client configures an upgrade of its Cisco Nexus switches that are connected to the Cisco ACI controller, such that the switches are upgraded one at a time. After the upgrade is run, it is discovered that both Cisco Nexus switches were upgraded simultaneously. Which two actions ensure that the switches upgrade one at a time? (Choose two.)

  A. Configure the *Do not pause on failure and do not wait on cluster health" Run Mode

  B. Choose the 'Pause upon upgrade failure" Run Mode

  C. Select the "Graceful Maintenance" checkbox

  D. Place each leaf switch in a different upgrade group

  E. Check the Ignore Compatibility" checkbox

  Correct Answer: BD

  Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ts/guide/UCSTroubleshooting/UCSTroubleshooting_chapter_0100.html

• Question 20:

  Refer to the exhibit.



  A network engineer is implementing a Cisco UCS environment. The environment consists of eight servers configured with the same service profile template and Windows 2012 installed. The VFC interfaces of five of these servers are showing the error shown in the exhibit. Which action resolves the issue?

  A. Modify the vHBAs name in the storage connectivity policy

  B. Configure upstream zoning

  C. Decommission and recommission the servers

  D. Modify the boot order in the boot policy

  Correct Answer: A
