Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 181:

  Which option is the port type of an uplink Fibre Channel port on an NPV edge switch?

  A. E
  B. F
  C. TN
  D. NP
  D. NP

• Question 182:

  Which two areas should you investigate when experiencing problems with the UCS Manager KVM? (Choose two.)

  A. Java complications
  B. network complications
  C. server CPU type
  D. Fabric Interconnects hardware
  E. SSD complications
  A. Java complications
  B. network complications

• Question 183:

  Which command do you to identify whether the ACI fabric discovered and the TEP addresses are assigned?

  A. Show lldp neighbors
  B. acidiag fnvread
  C. Show lldp neighbors node
  D. acidiag fnvread
  B. acidiag fnvread

• Question 184:

  A customer has a Cisco UCS Central cluster. An external CA server is configured which uses a third-party certificate in addition to keys. LDAP authentication fails and has a certificate status of Failed to Verify with Private Key. What could cause the failure?

  A. The contents of the certificate do not match the certificate request that was created
  B. The certificate was not issued from a trusted point
  C. The certificate box in empty
  D. There is a time skew between Cisco UCS Central and the CA server
  A. The contents of the certificate do not match the certificate request that was created

• Question 185:

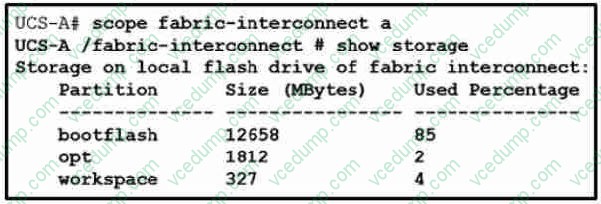

  Refer to the exhibit. The firmware fails while using AutoInstall. What could cause this issue?

  A. A maximum of two active partitions is permitted when using AutoInstall.
  B. The bootflash partition exceeded 70 percent of the capacity of the flash drive.
  C. The license for the Advanced Services Package must be installed.
  D. The workspace partition must be at least 10 percent of the flash drive.
  B. The bootflash partition exceeded 70 percent of the capacity of the flash drive.

• Question 186:

  You configure your network to extend the Layer 2 domain beyond the Cisco ACI fabric. You notice that the interfaces that connect to external devices are in a down state. What should you do?

  A. Reboot the Cisco ACI fabric
  B. Configure the fabric node policies for the correct connectivity group
  C. Configure the interface policies to match the peer device
  D. Manually push the policies of the shared services to the node devices
  C. Configure the interface policies to match the peer device

• Question 187:

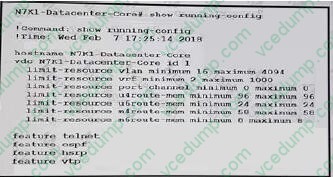

  Refer to the exhibit.



  You cannot create a layer 3 port channel interface on the Cisco nexus 7000 Series switch to aggregate two links connected to the core switch. Which reason is the root cause of this problem?

  A. No unicast IPv4 rout memory resource are available.
  B. No port channel resources are available.
  C. No multicast IPv4 rout memory resources are available.
  D. Layer 3 port channel cannot be configured on Cisco Nexus 7000 Series switches, instead interface VLAN must configured and port channel must be mapped to it.
  B. No port channel resources are available.

• Question 188:

  In an IP storage environment, what occurs if you apply a service profile to a server that has an Ethernet-only mezzanine card?

  A. The storage adapter is not visible to the OS
  B. A blade association occurs,
  C. WWPN and WWNN are selected from the default pool
  D. The OS fails to boot
  B. A blade association occurs,

• Question 189:

  An administrator disassociates the service profile from a server. What happens to the identity and connectivity information of the physical server?

  A. It takes parameters of other servers in the service profile.
  B. It is reset to factory defaults.
  C. It uses master service profile parameters.
  D. It is maintained and can be reused.
  D. It is maintained and can be reused.

• Question 190:

  One of your Cisco Nexus Series interfaces has become errdisabled with the error message "DCX-No ACK in 100 PDUs". How often are these acknowledgements exchanged?

  A. 15 seconds
  B. 30 seconds
  C. 45 seconds
  D. 60 seconds
  B. 30 seconds
