Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 111:

  FHRP isolation between data center networks that are connected over an OTV network is a two-step process; the first prevents FHRP peering by filtering FHRP control packets across the overlay via a VLAN ACL. What is the second step?

  A. Filter the FHRP MAC addresses that are being advertised by IS-IS.
  B. Remove the FHRP VLAN from the OTV extend-vlan list.
  C. Apply a VLAN to a route map that is applied to the OTV routing process.
  D. Disable the auto-population of the OTV MAC address table.
  A. Filter the FHRP MAC addresses that are being advertised by IS-IS.

• Question 112:

  How can you set a Cisco UCS C-Series Server to export tech-support data for TAC to an external file server?

  A. CIMC to a TFTP server
  B. CIMC to an RCP server
  C. FSM to a TFTP server
  D. FSM to an RCP server
  A. CIMC to a TFTP server

• Question 113:

  You are troubleshooting an FCoE SAN boot issue on a Cisco UCS C240 M3 server with a VIC 1225. Which two of these represent the correct way to bind VSAN 11 to interface vfc5 attached to interface Ethernet 1/5? (Choose two.)

  A. 5548UP(config)# int vfc 5 5548UP(config-if)# bind interface Ethernet1/5 vsan 11
  B. 5548UP(config)# vsan database 5548UP(config-vsan-db)# vsan 11 interface vfc5
  C. 5548UP(config)# interface Ethernet1/5 5548UP(config-if)# bind vsan 11
  D. 5548UP(config)# vsan database 5548UP(config-vsan-db)# bind interface vfc5 vsan 11
  E. 5548UP(config)# vsan database 5548UP(config-vsan-db)# interface vfc5 vsan 11
  F. 5548UP(config)# vsan database 5548UP(config-vsan-db)# interface Ethernet1/5 vsan 11
  A. 5548UP(config)# int vfc 5 5548UP(config-if)# bind interface Ethernet1/5 vsan 11
  B. 5548UP(config)# vsan database 5548UP(config-vsan-db)# vsan 11 interface vfc5

• Question 114:

  You have a Cisco APIC environment. An administrator configures the administrator roles for managing a service configuration. You discover that some tenants can import device clusters but cannot use the device clusters. What should you do to ensure that the tenants can use the device clusters?

  A. Change the read-only access permission for the tenants to read-write.
  B. Grant the tenants the nw-svc-devshare privilege.
  C. Grant the tenants the nw-svc-policy privilege.
  D. Grant the tenants the nw-svc-device privilege.
  C. Grant the tenants the nw-svc-policy privilege.

• Question 115:

  Which two effects of enabling the persistent FC ID feature are true? (Choose two.)

  A. N Ports receive the same FC IDs when they disconnect from and reconnect to any port on the same switch.
  B. The fcdomain automatically adds entries to the FC ID database when a device connects to a port.
  C. The volatile cache stores up to 4,000 entries containing the WWN to FC ID binding. New entries overwrite the oldest entries in the cache if the cache is full.
  D. The contents of the volatile cache are discarded when a server reboots.
  E. The FC IDs used in the fcdomain are saved after you reboot the switch.
  B. The fcdomain automatically adds entries to the FC ID database when a device connects to a port.
  E. The FC IDs used in the fcdomain are saved after you reboot the switch.

• Question 116:

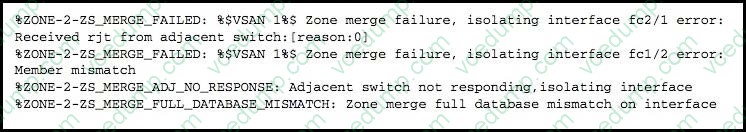

  Refer to the exhibit.



  A zone merge failure occurs with the above error log. What is the problem?

  A. Two switches have the same zone set name but different zone members.
  B. Two switches have different zone names and different members.
  C. Two switches have the same zone set name and the same members.
  D. Two switches have different zone names.
  A. Two switches have the same zone set name but different zone members.

• Question 117:

  Which two commands are used to determine the CoPP profile used on Cisco Nexus 7000 Series? (Choose two.)

  A. #show copp profile
  B. #show copp diff profile
  C. #show copp status
  D. #show running-config copp
  E. #show policy-map interface control-plane
  C. #show copp status
  D. #show running-config copp

• Question 118:

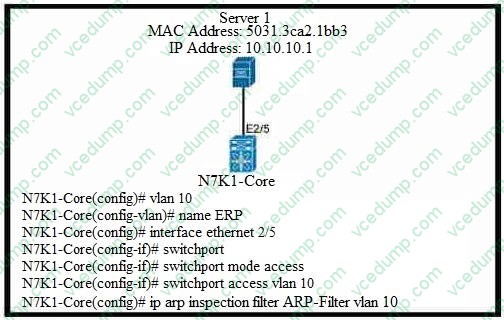

  Refer to the exhibit. You are troubleshooting Dynamic ARP Inspection.

  Which command set correctly configures the access list to be used by ARP inspection?

  A. N7k1-Core(config)# mac access-list ARP-Filter N7k1-Core(config-mac-acl)# 1 permit mac 5031.3ca2.1bb3.0000.0000.0000 any
  B. N7k1-Core(config)# ip access-list ARP-Filter N7k1-Core(config-acl)# 1 permit ip 10.10.10.1 0.0.0.0 any
  C. N7k1-Core(config)# arp access-list ARP-Filter N7k1-Core(config-arp-acl)# 1 permit request ip 10.10.10.1 0.0.0.0 mac 5031.3ca2.1bb3.0000.0000.0000
  D. N7k1-Core(config)# access-list 1 permit 10.10.10.1 0.0.0.0
  C. N7k1-Core(config)# arp access-list ARP-Filter N7k1-Core(config-arp-acl)# 1 permit request ip 10.10.10.1 0.0.0.0 mac 5031.3ca2.1bb3.0000.0000.0000

• Question 119:

  Multicast packets enter a leaf switch from a front panel interface and the leaf switch finds a route for the multicast packets. Which two additional components does the leaf switch provide? (Choose two.)

  A. EPG of the destination subnet prefix
  B. local interfaces of the local receivers
  C. VTEP IP address of the local interface
  D. outer destination IP address to use in the VXLAN encapsulation across the fabric
  E. VTEP IP address of the remote leaf switch where the destination endpoint is present
  A. EPG of the destination subnet prefix
  E. VTEP IP address of the remote leaf switch where the destination endpoint is present

• Question 120:

  Which two options are Cisco UCS default user roles? (Choose Two)

  A. LAN Administrator
  B. FCoE Administrator
  C. Server Equipment Administrator
  D. Administrator
  E. Server Resource Administrator
  C. Server Equipment Administrator
  D. Administrator
