Cisco 300-180 Online Practice Questions and Exam Preparation

Cisco 300-180 Online Questions & Answers

• Question 101:

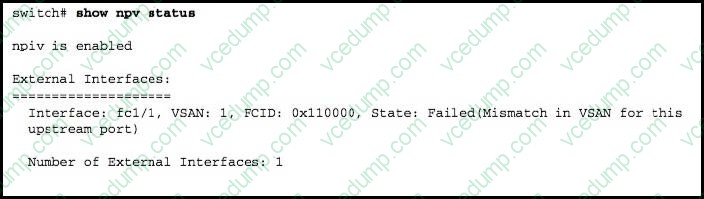

  Refer to the exhibit.



  When your customers have NPV problems, which three actions should you take? (Choose three.)

  A. Verify that the NPV core switch supports NPIV and that it is enabled.
  B. Verify that all ports are properly configured and connected.
  C. Ensure that the VLAN values are configured on both sides of the NPV core switch.
  D. Verify the status of the servers and external interfaces, using the show npv server status command.
  E. Ensure that the VSAN value that is configured on the device links is correct.
  F. For all the device links, ensure that the port mode on the NPV device is in Full_port mode.
  A. Verify that the NPV core switch supports NPIV and that it is enabled.
  B. Verify that all ports are properly configured and connected.
  E. Ensure that the VSAN value that is configured on the device links is correct.

• Question 102:

  You see incoming updates in the logs from the hypervisor. But the State Of the Cisco APIC fails to change Which option is a possible cause Of the issue?

  A. VMM is not integrated properly
  B. The APIC is in a minority state
  C. No uplinks are configured on the Cisco AVS.
  D. The VMM credentials are incorrect.
  B. The APIC is in a minority state

• Question 103:

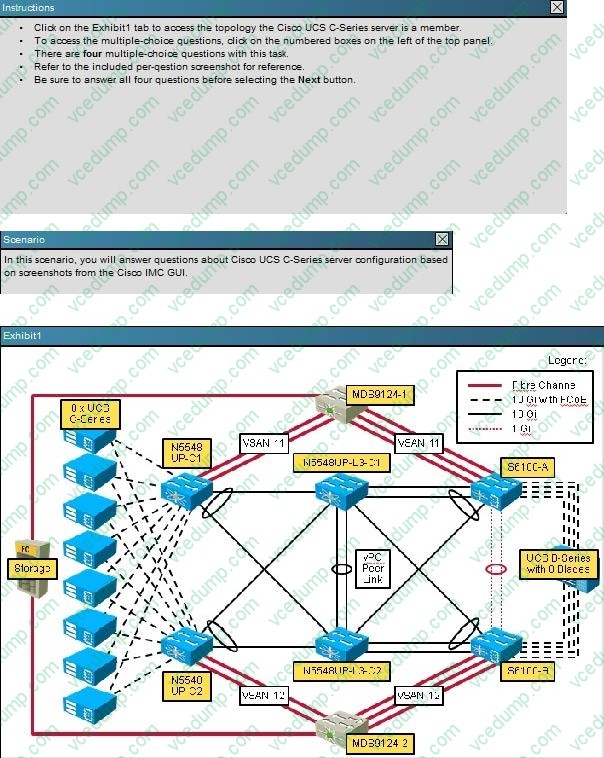

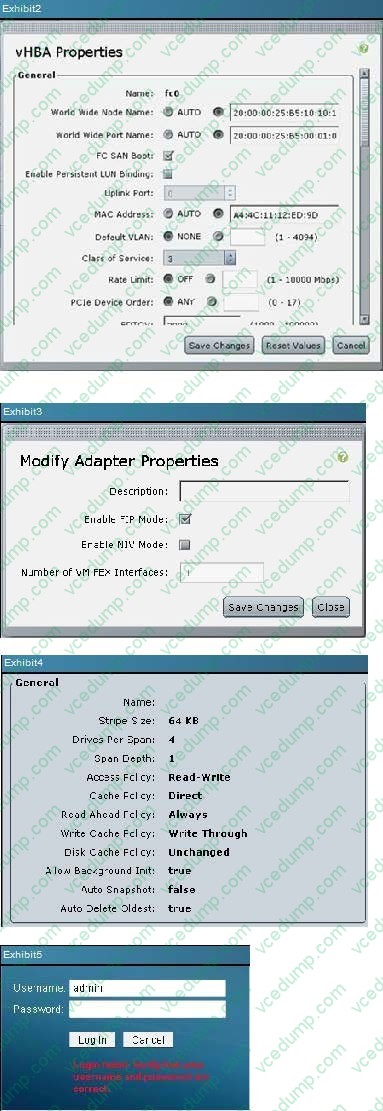

  Refer to Exhibit 2. Which of the following options is true about why this C-Series vHBA will not allow SAN boot?

  A. The WWPN and WWNN must match
  B. Persistent Binding is required by all operating systems
  C. The default VLAN must match the FCoE VLAN
  D. The Class of Service must be set to '1' to negotiate Priority Flow Control for FCoE traffic
  A. The WWPN and WWNN must match

• Question 104:

  Which identification for EPGs can you use to check zone rules?

  A. PcTag
  B. VXAN
  C. VLAN
  D. EPG name
  A. PcTag
  D. EPG name

• Question 105:

  You configure an interface on a Cisco Nexus 5600 Series switch that will be connected to a CNA for both Ethernet and FCoE connectivity. You discover that the virtual Fibre Channel is down due to a FIP failure. Which configuration will resolve the failure?

  A. switch(config-if)#spanning-tree port type edge trunk
  B. switch(config-vlan)#fcoe
  C. switch(config-if)#shutdown lan switch(config-if)#no shutdown lan
  D. switch(config-if)# spanning-tree port type network
  A. switch(config-if)#spanning-tree port type edge trunk

• Question 106:

  Which credentials must you have to download firmware for Cisco UCS B-Series Servers?

  A. a cisco.com account associated with a valid service account
  B. a service account
  C. a Cisco engineering account
  D. a CEC account
  A. a cisco.com account associated with a valid service account

• Question 107:

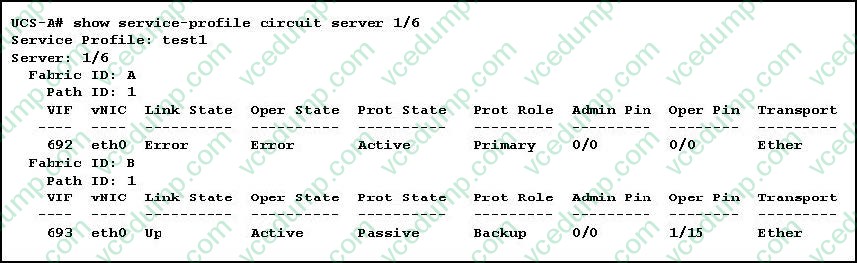

  Refer to the exhibit.



  You have fabric interconnects. You discover that all traffic flows through a fabric interconnect named fabric-interconnect B. Which of the following could cause the issue?

  A. An administrator evacuated fabric-interconnect A.
  B. There is a version mismatch between the fabric interconnects.
  C. An administrator assigned an invalid OOBP IP address to fabric-interconnect B.
  D. the fabric interconnects have duplicate IP address.
  A. An administrator evacuated fabric-interconnect A.

• Question 108:

  Which two actions do you need to take to configure jumbo frames on UCS Manager? (Choose two.)

  A. Choose QoS Policy Jumbo, choose the LAN tab, and set the MTU value to 9000.
  B. Choose QoS System Class, choose the LAN tab, and set the MTU value to 9000.
  C. Choose LAN Uplinks Manager, choose the LAN tab, and set the MTU value to the uplinks VLANs to 9000.
  D. Choose the vNIC, and on the Server Profile set the MTU value to 9000.
  E. On the Admin tab, under Global Policy, enable Jumbo MTU Bytes.
  F. Go the fabric interconnect on the Equipment tab, right-click the port, and set the MTU value to 9000.
  B. Choose QoS System Class, choose the LAN tab, and set the MTU value to 9000.
  D. Choose the vNIC, and on the Server Profile set the MTU value to 9000.

• Question 109:

  Which two ports must be open on a VMware vCenter server to allow communications to a Cisco Nexus 1000V Series Switch? (Choose two)

  A. 80
  B. 443
  C. 21
  D. 2010
  E. 20
  A. 80
  B. 443

• Question 110:

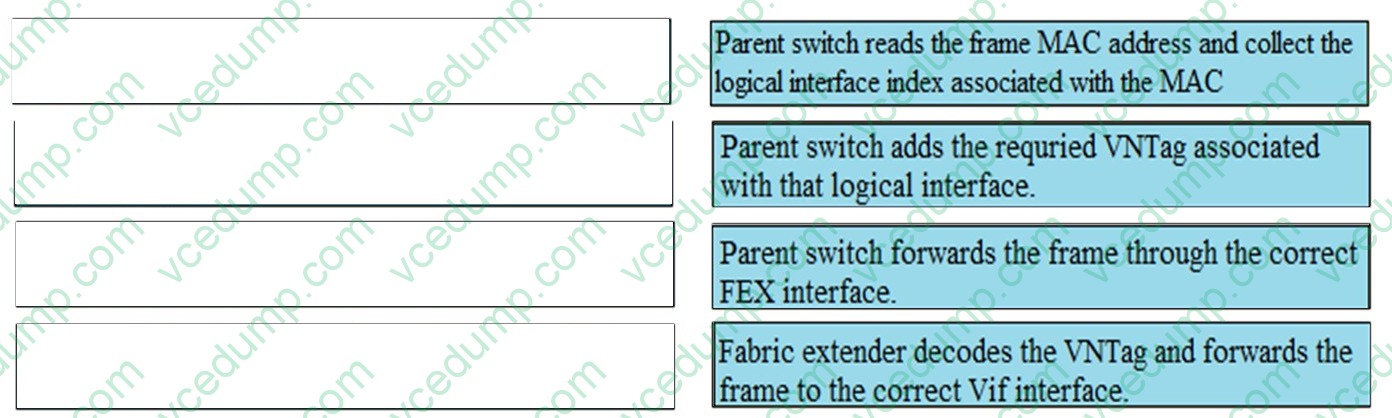

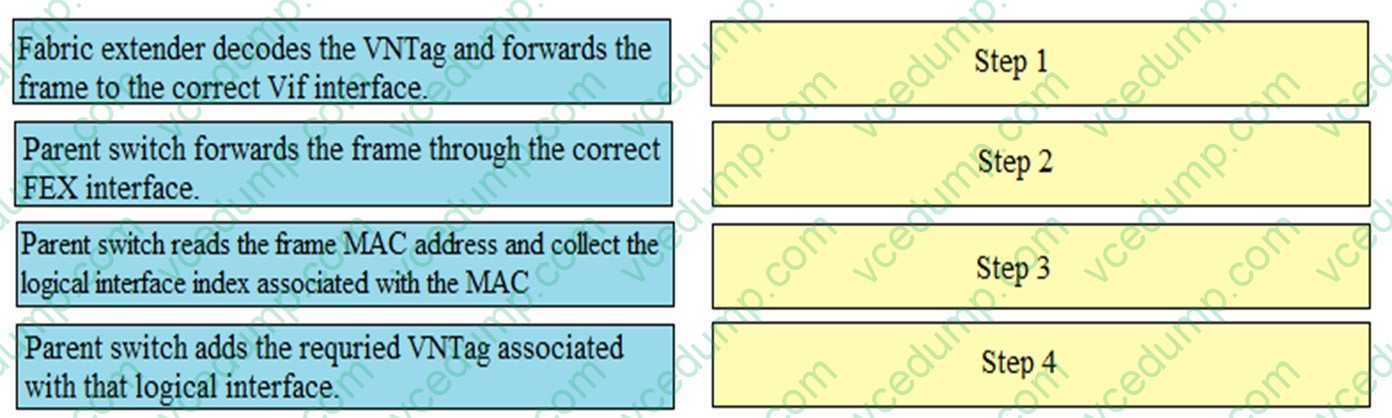

  You are troubleshooting the south to north data flow between a parent Cisco Nexus 5000 Series switch and a Cisco Nexus 2000 switch. Drag and drop the data flow statements from the left into the correct order they occur on the right.

  Select and Place:
