Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 871:

  You are configuring a Microsoft client to call a PPP server using CHAP. Only the client will be authenticated,but the client's password has expired and must be changed. Which PPP server configuration allows the call to be completed?

  A. ppp authentication chap callin
  B. ppp authentication chap
  C. ppp authentication ms-chap-v2
  D. ppp authentication ms-chap-v2 callin
  E. ppp authentication ms-chap callin
  D. ppp authentication ms-chap-v2 callin

• Question 872:

  which two types of authentication dose EIGRP offer ?(choose two)

  A. TKIP
  B. MD5
  C. WPA
  D. Plain text
  B. MD5
  D. Plain text

• Question 873:

  which three statements about SNMP are ture? (choose three)

  A. The manager configures and send traps to the agent
  B. The manager sends GET and SET messages
  C. SNMPv3 supports authentication and encryption
  D. The manager polls the agent using UDP port 161
  E. The MIB database can be altered only by the SNMP agent
  F. The agent is the monitoring device
  B. The manager sends GET and SET messages
  C. SNMPv3 supports authentication and encryption
  D. The manager polls the agent using UDP port 161

• Question 874:

  Which NAT Command to disable dynamic ARP learning on an interface?

  A. R(config-if) # ip nat enable
  B. R(config-if) # ip nat inside
  C. R(config-if)# ip nat outside
  D. R(config)# ip nat allow static host
  E. R(config)# ip nat service
  D. R(config)# ip nat allow static host

• Question 875:

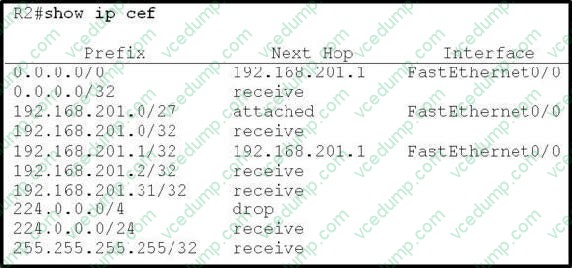

  Refer to the exhibit.



  Based on this FIB table, which statement is correct?

  A. There is no default gateway.
  B. The IP address of the router on FastEthernet is 209.168.201.1.
  C. The gateway of last resort is 192.168.201.1
  D. The router will listen for all multicast traffic.
  C. The gateway of last resort is 192.168.201.1

• Question 876:

  Which are new LSA types in OSPF for IPv6 (OSPFv3)? (Choose two)

  A. LSA Type 8
  B. LSA Type 9
  C. LSA Type 10
  D. LSA Type 12
  A. LSA Type 8
  B. LSA Type 9

• Question 877:

  DRAG DROP

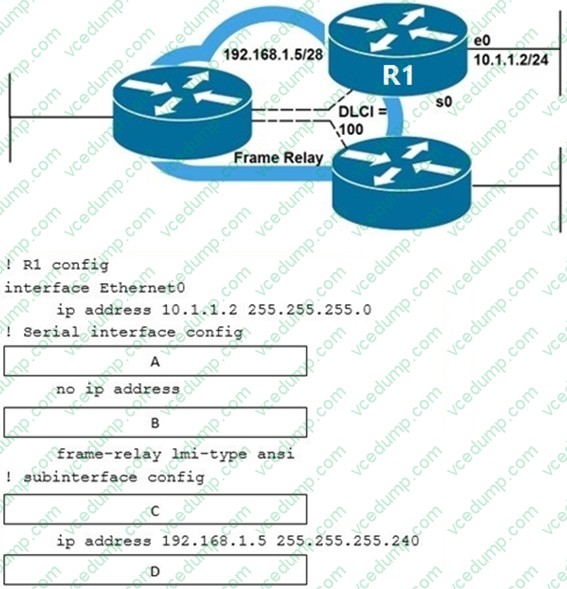

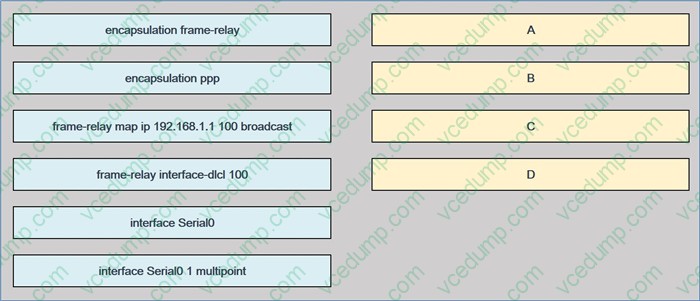

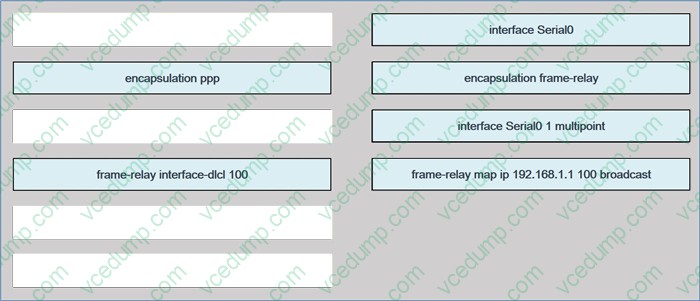

  Refer to the exhibit. You are configuring the R1 Serial0 interface for a multipoint connection. Drag and drop the required configuration statements from the left onto the corresponding locations from the diagram on the right. Not all statements are used.



  Select and Place:





• Question 878:

  Which command sequence can you enter on a router to configure Unicast Reverse Path Forwarding in loose mode?

  A. interface GigabitEthernet0/0 ip verify unicast source reachable-via all
  B. interface GigabitEthernet0/0 ip verify unicast source reachable-via loose
  C. interface GigabitEthernet0/0 ip verify unicast source reachable-via any
  D. interface GigabitEthernet0/0 ip verify unicast source reachable-via rx
  C. interface GigabitEthernet0/0 ip verify unicast source reachable-via any

• Question 879:

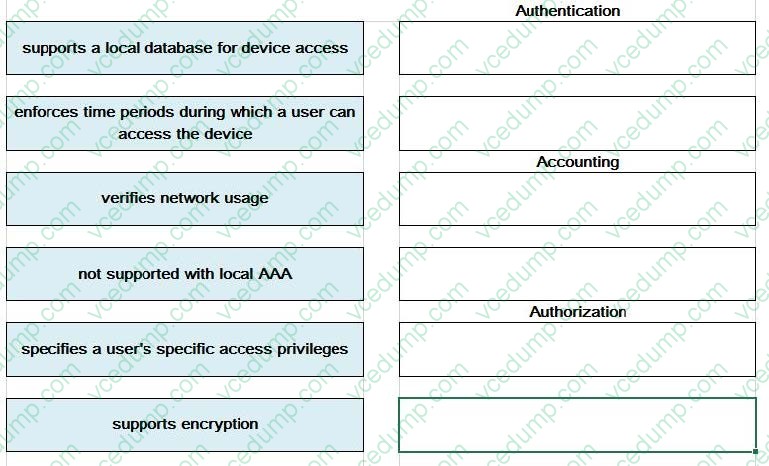

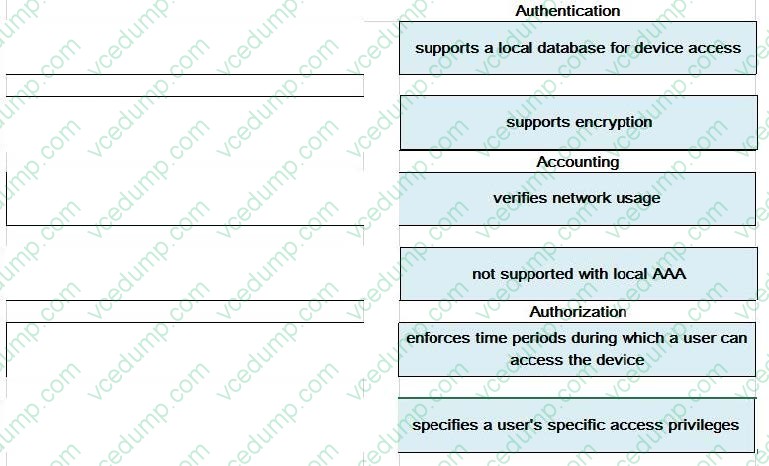

  Drag and Drop

  Select and Place:





• Question 880:

  Which three statements about IPv6 EIGRP are true? (Choose Three)

  A. EIGRP neighbor relationships are formed using the link-local address
  B. EIGRP neighbor relationships can be formed only on the configured IPv6 address.
  C. It supports ELM-64 addresses only.
  D. EIGRP route advertisement is configured under the interface configuration
  E. An IPv6 EIGRP router ID is required.
  F. EIGRP route advertisement is configured under the ipv6 router eigrp configuration
  A. EIGRP neighbor relationships are formed using the link-local address
  D. EIGRP route advertisement is configured under the interface configuration
  E. An IPv6 EIGRP router ID is required.
