Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 1:

  Which two statements about route targets that are configured with VRF-Lite are true? (Choose two) A. Route targets uniquely identify the customer routing table

  B. Route targets control the import and export of routes into a customer routing table
  C. Route targets are supported only when BGP is configured
  D. When IS-IS is configured, route targets identify the circuit level in which the customer resides
  E. When BGP is configured, route targets are transmitted as BGP standard communities
  F. Route targets allos customers to be assigned overlapping adresses
  B. Route targets control the import and export of routes into a customer routing table
  C. Route targets are supported only when BGP is configured

• Question 2:

  Refer to the exhibit A network engineer is modifying configurations for a customer that currently uses VPN connectivity between their sites. The customer has added a new spoke site but is does not have reachability to servers located at the hub Based on the output, which statement describes the cause?



  A. The interface of VRF HUB and VRF SPOKE do not match
  B. The HUB VRF is not exporting Route-Target 200:20
  C. The default VPNID is not set on VRF HUB or VRF SPOKE
  D. The SPOKE VRF is not importing Route-Target 100:10
  D. The SPOKE VRF is not importing Route-Target 100:10

• Question 3:

  Which calculation is used to determine the default EIGRP metric?

  A. Bandwidth+Delay
  B. Bandwidth*Delay
  C. Bandwidth-Delay
  D. Bandwidth/Delay
  A. Bandwidth+Delay

• Question 4:

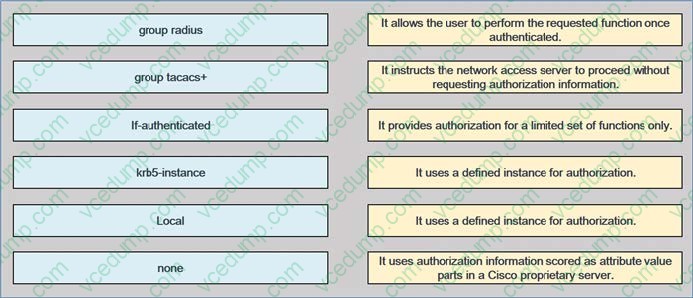

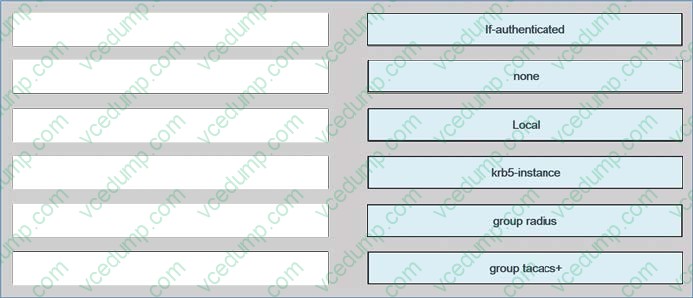

  Drag and Drop

  Drag and drop the methods supported by the aaa authorization command from me left onto me correct descriptions on the right.

  Select and Place:





  ---

  It allows the user to perform the requested function once authenticated = if authenticated

  It instructs the network access server to proceed without requesting authorization information = none

  It provides authorization for a limited set of functions only = local

  It uses a defined instance for authorization = krb5-instance

  It uses authorization information from a standards based server = standard radius

  IT uses authorization information stored as attribute value pair in a Cisco proprietary server = group tacas+

• Question 5:

  Which Tecnology supports overlapping IP address on a single interace?

  A. policy-based routing
  B. VRF-Lite
  C. On-Demand Routing
  D. QoS
  B. VRF-Lite

• Question 6:

  Which type of BGP AS number is 64591?

  A. a private AS number
  B. a public AS number
  C. a private 4-byte AS number
  D. a public 4-byte AS number
  A. a private AS number

• Question 7:

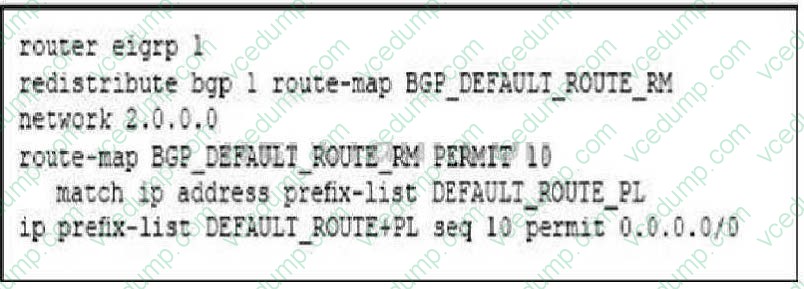

  Refer to the exhibit. which reason is EIGRP failing to redistribute the default route?



  A. The EIGRP process is missing the default metric.
  B. The EIGRP process is missing the no auto-summary command.
  C. The EIGRP process is missing the router ID.
  D. e route-map statement is missing the match anykeyword.
  A. The EIGRP process is missing the default metric.

• Question 8:

  What are the three modes of Unicast Reverse Path Forwarding?

  A. strict mode, loose mode, and VRF mode
  B. strict mode, loose mode, and broadcast mode
  C. strict mode, broadcast mode, and VRF mode
  D. broadcast mode, loose mode, and VRF mode
  A. strict mode, loose mode, and VRF mode

• Question 9:

  What is the minimum log level for the event generated when an ACL drops a packet?

  A. 3
  B. 4
  C. 5
  D. 6
  D. 6

• Question 10:

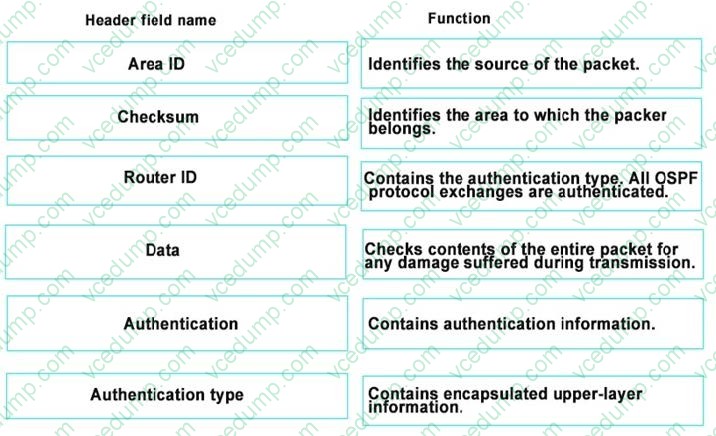

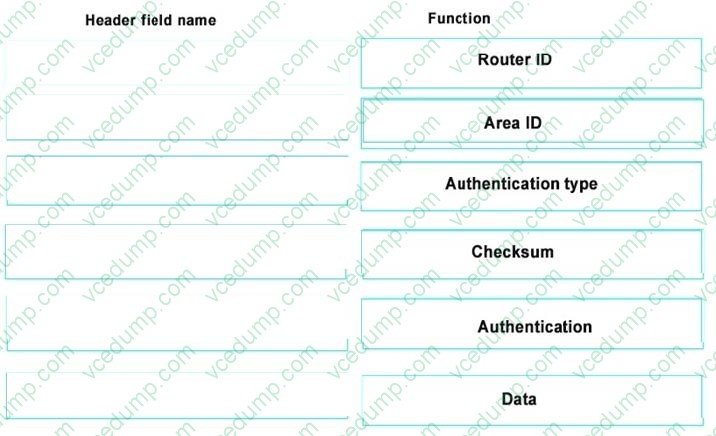

  DRAG DROP

  Select and Place:
