• Question 861:

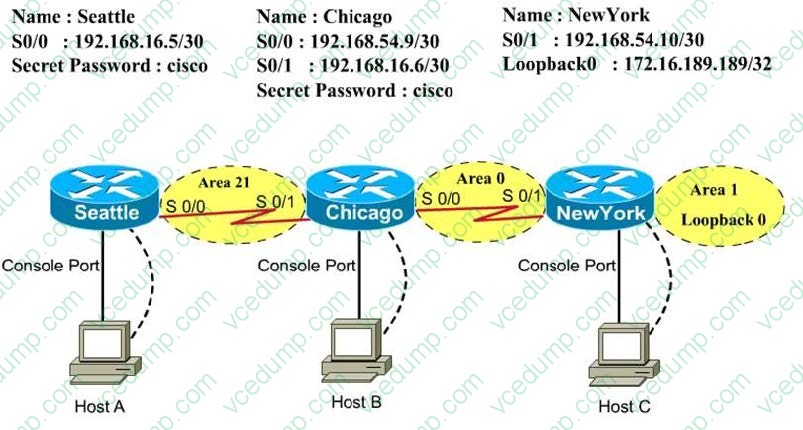

  CertBus.com is a small IT corporation that is attempting to implement the network shown in the exhibit. Currently the implementation is partially completed. OSPF has been configured on routers Chicago and NewYork. The SO/O interface on

  Chicago and the S0/1 interface on NewYork are in Area 0.

  The loopback0 interface on NewYork is in Area 1. However, they cannot ping from the serial interface of the Seattle router to the loopback interface of the NewYork router. You have been asked to complete the implementation to allow

  this ping.

  CertBus.com's corporate implementation guidelines require:

  1.

  The OSPF process ID for all routers must be 10.

  2.

  The routing protocol for each interface must be enabled under the routing process.

  3.

  The routing protocol must be enabled for each interface using the most specific wildcard mask possible.

  4.

  The serial link between Seattle and Chicago must be in OSPF area 21.

  5.

  OSPF area 21 must not receive any inter-area or external routes.(except the default route)

  Network Information Seattle

  S0/0 192.168.16.5/30 - Link between Seattle and Chicago Secret Password: cisco

  Chicago

  S0/0 192.168.54.9/30 - Link between Chicago and NewYork S0/1 192.168.16.6/30 - Link between Seattle and Chicago Secre Password: cisco

  NewYork

  S0/1 192.168.54.10/30 - Link between Chicago and NewYork Loopback0 172.16.189.189 Secret Password: cisco



  A. Check the answer below
  A. Check the answer below

  ---

  Explanation:

  Note: In actual exam, the IP addressing, OSPF areas and process ID, and router hostnames may change, but the overall solution is the same.

  Seattle's S0/0 IP Address is 192.168.16.5/30. So, we need to find the network address and wildcard mask of 192.168.16.5/30 in order to configure the OSPF.

  IP Address: 192.168.16.5 /30

  Subnet Mask: 255.255.255.252

  Here subtract 252 from 2565, 256-252 = 4, hence the subnets will increment by 4.

  First, find the 4thoctet of the Network Address:



  The 4thoctet of IP address (192.168.16.5) belongs to subnet 1 (4 to 7).

  Network Address: 192.168.16.4

  Broadcast Address: 192.168.16.7

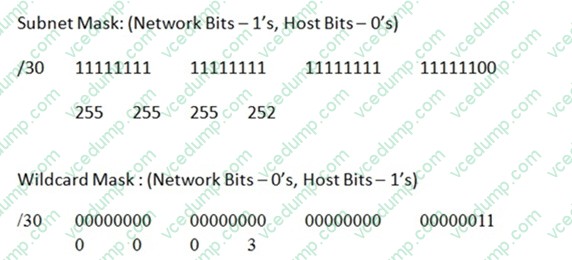

  Let's find the wildcard mask of /30.

  Subnet Mask: (Network Bits – 1's, Host Bits – 0's)

  Let's find the wildcard mask of /30:



  Now we configure OSPF using process ID 10 (note the process ID may change to something else in real exam).

  Seattle>enable Password: Seattle#conf t Seattle(config)#router ospf 10 Seattle(config-router)#network 192.168.16.4 0.0.0.3 area 21

  One of the tasks states that area 21 should not receive any external or inter-area routes (except the default route).

  Seattle(config-router)#area 21 stub Seattle(config-router)#end Seattle#copy run start

  Chicago Configuration:

  Chicago>enable Password: cisco Chicago#conf t Chicago(config)#router ospf10

  We need to add Chicago's S0/1 interface to Area 21

  Chicago(config-router)#network 192.168.16.4 0.0.0.3 area 21

  Again, area 21 should not receive any external or inter-area routes (except the default route).

  In order to accomplish this, we must stop LSA Type 5 if we don't want to send external routes. And if we don't want to send inter-area routes, we have to stop LSA Type 3 and Type 4. There fore we want to configure area 21 as a totally stubby

  area.

  Chicago(config-router)#area 21 stub no-summary

  Chicago(config-router)#end

  Chicago#copy run start

  The other interface on the Chicago router is already configured correctly in this scenario, as well as the New York router so there is nothing that needs to be done on that router.

• Question 862:

  Under which circumstance will a branch ISR router contain interface vlan configurations?

  A. performing inter-VLAN routing
  B. performing 802.1Q trunking
  C. performing ISL trunking
  D. Ethernet Switch Module installed
  E. ADSL WIC installed
  F. running Call Manager Express
  D. Ethernet Switch Module installed

• Question 863:

  A network engineer enables OSPF on a Frame Relay WAN connection to various remote sites, but no OSPF adjacencies come up. Which two actions are possible solutions for this issue? (Choose Two.)

  A. Change the network type to point-to-multipoint under WAN interface.
  B. Enable virtual links.
  C. Change the network type to nonbroadcast multipoint access.
  D. Configure the neighbor command under OSPF process for each remote site.
  E. Ensure that the OSPF process number matches among all remote sites.
  A. Change the network type to point-to-multipoint under WAN interface.
  D. Configure the neighbor command under OSPF process for each remote site.

• Question 864:

  In IPv6, the interfaces running OSPF can be configured with multiple address prefixes.Which statement is true about the IPv6 addresses that can be included into the OSPF process?

  A. Specific addresses can be selected using a route map.
  B. Specific addresses can be selected using an ACL.
  C. Specific addresses cannot be selected for importation into the OSPF process.
  D. Specific addresses can be selected using a prefix list.
  C. Specific addresses cannot be selected for importation into the OSPF process.

• Question 865:

  What is supported RADIUS server? (Choose two)

  A. telnet
  B. authentication
  C. accounting
  D. authorization
  E. SSH
  B. authentication
  D. authorization

• Question 866:

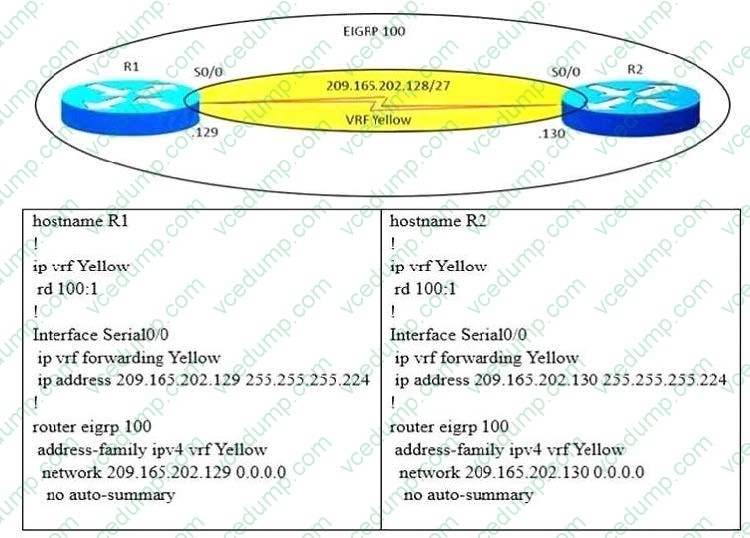

  A network engineer is unable to make VRF lite EIGRP adjacency work.There is nothing wrong with communication between R1 and R2.What command will eliminate the issue when executed on both routes?

  A. (config-router-if)autonomous-system 100
  B. (config)#ip-multicast-routing
  C. (config-vrf)#route-target both 100:1
  D. (config-router-af)#network 209.165.202.128 0.0.0.31
  A. (config-router-if)autonomous-system 100

• Question 867:

  A network administrator notices that the BGP state drops and logs are generated for missing BGP hello keepalives. What is the potential problem?

  A. Incorrect neighbor options
  B. Hello timer mismatch
  C. BGP path MTU enabled
  D. MTU mismatch
  D. MTU mismatch

• Question 868:

  What is the maximum hop count for RIP?

  B. 255
  D. 16
  A

• Question 869:

  An engineer executes the ip flow ingress command in interface configuration mode. What is the result of this action?

  A. It enables the collection of IP flow samples arriving to the interface
  B. It enables the collection of IP flow samples leaving the interface.
  C. It enables IP flow while disabling IP CEF on the interface.
  D. It enables IP flow collection on the physical interface and its subinterfaces.
  A. It enables the collection of IP flow samples arriving to the interface

• Question 870:

  Which two among the following are used to indicate external type of route in routing table? (Choose two.)

  A. D EX
  B. IA
  C. O E2
  D. R E2
  E. i L2
  A. D EX
  C. O E2
