Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 691:

  Which protocol does VRF-Lite support?

  A. IS-IS
  B. ODR
  C. EIGRP
  D. IGRP
  C. EIGRP

• Question 692:

  Which statement is true about the PPP Session Phase of PPPoE?

  A. PPP options are negotiated and authentication is not performed. Once the link setup is completed, PPPoE functions as a Layer 3 encapsulation method that allows data to be transferred over the PPP link within PPPoE headers.
  B. PPP options are not negotiated and authentication is performed. Once the link setup is completed, PPPoE functions as a Layer 4 encapsulation method that allows data to be transferred over the PPP link within PPPoE headers.
  C. PPP options are automatically enabled and authorization is performed. Once the link setup is completed, PPPoE functions as a Layer 2 encapsulation method that allows data to be encrypted over the PPP link within PPPoE headers.
  D. PPP options are negotiated and authentication is performed. Once the link setup is completed, PPPoE functions as a Layer 2 encapsulation method that allows data to be transferred over the PPP link within PPPoE headers.
  D. PPP options are negotiated and authentication is performed. Once the link setup is completed, PPPoE functions as a Layer 2 encapsulation method that allows data to be transferred over the PPP link within PPPoE headers.

• Question 693:

  Drag and Drop

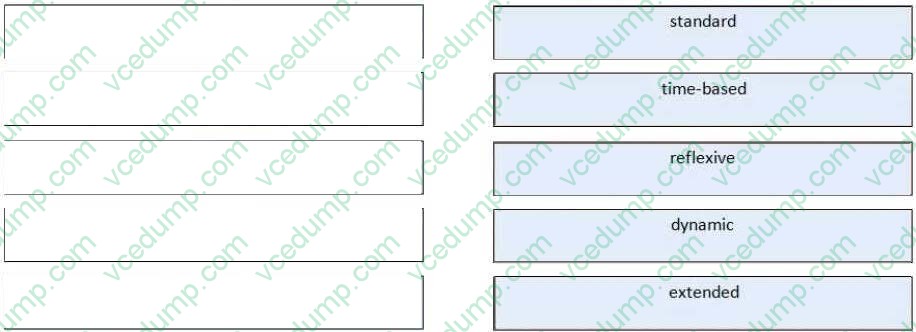

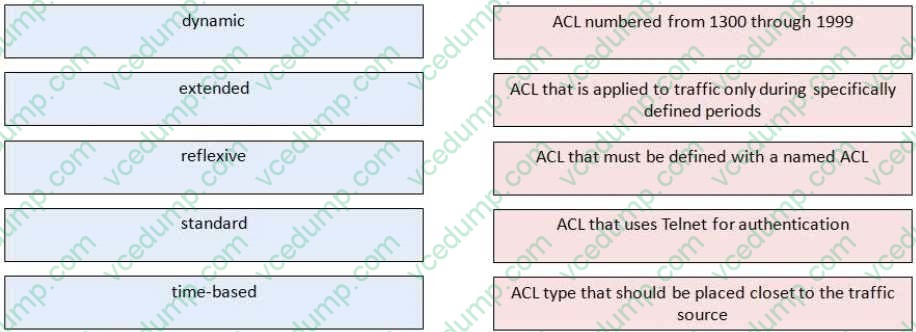

  Drag and Drop the ACL types from the left onto the correct description on the right. Access-List Types

  Select and Place:





  ---

  https://www.cisco.com/c/en/us/support/docs/security/ios-firewall/23602-confaccesslists.html#timebasedtimerange

• Question 694:

  What is the administrative distance of an EIGRP summary route?

  A. 90
  B. 5
  C. 1
  D. 170
  B. 5

• Question 695:

  Refer to the exhibit.



  Which statement about the output of the show flow-sampler command is true?

  A. The sampler matched 10 packets, each packet randomly chosen from every group of 100 packets.
  B. The sampler matched 10 packets, one packet every 100 packets.
  C. The sampler matched 10 packets, each one randomly chosen from every 100-second interval.
  D. The sampler matched 10 packets, one packet every 100 seconds.
  A. The sampler matched 10 packets, each packet randomly chosen from every group of 100 packets.

• Question 696:

  which of the following situations results in a routing loop ?

  A. when you have a single point of redistribution
  B. when you use NAT translation on the edge of your network
  C. when you implement contiguous IP routing blocks
  D. when you implement noncontiguous IP routing blocks
  E. when you have multiple points of redistribution
  E. when you have multiple points of redistribution

• Question 697:

  Which two LSA types were introduced to support OSPF for IPv6? (Choose two.)

  A. type 9
  B. type 10
  C. type 5
  D. type 7
  E. type 8
  A. type 9
  E. type 8

• Question 698:

  A packet capture log indicates that several router solicitation messages were sent from a local host on the IPv6 segment. What is the expected acknowledgment and its usage?

  A. Router acknowledgment messages will be forwarded upstream, where the DHCP server will allocate addresses to the local host.
  B. Routers on the IPv6 segment will respond with an advertisement that provides an external path from the local subnet, as well as certain data, such as prefix discovery.
  C. Duplicate Address Detection will determine if any other local host is using the same IPv6 ddress for communication with the IPv6 routers on the segment.
  D. All local host traffic will be redirected to the router with the lowest ICMPv6 signature, which is statically defined by the network administrator.
  B. Routers on the IPv6 segment will respond with an advertisement that provides an external path from the local subnet, as well as certain data, such as prefix discovery.

• Question 699:

  Drag and Drop

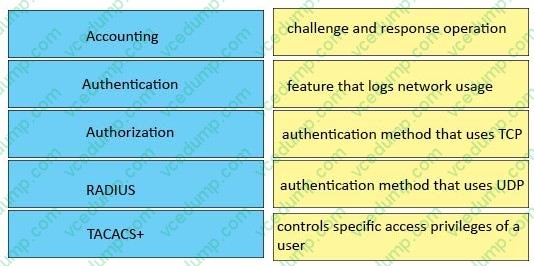

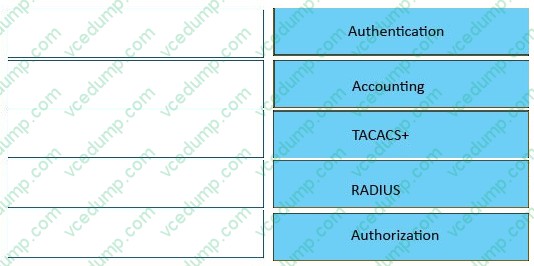

  Drag and Drop the AAA security features from the left onto the correct description on the right.

  Select and Place:





• Question 700:

  The OSPF database of a router shows LSA types 1, 2, 3, and 7 only. Which type of area is this router connected to?

  A. stub area
  B. totally stubby area
  C. backbone area
  D. not-so-stubby area
  D. not-so-stubby area
