• Question 711:

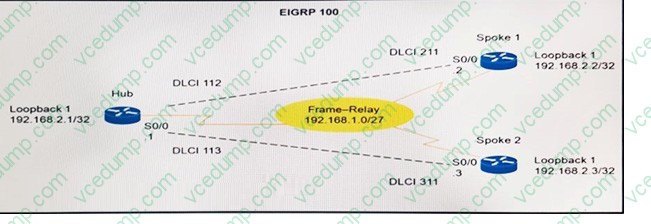

  Refer to the exhibit. A network engineer is implementing a Frame Relay design using EIGRP as the routing protocol EIGRP 100 is up and the hub is receiving advertisements for both loopback interfaces from Spoke 1 and Spoke2. Spoke 1 and Spoke 2 can see Loopback 1 advertisements from the hub, but neither spoke sees loopback advertisements from the other spoke. Why are the routing updates not prorogating properly?

  A. The network mask that is used on the loopback interfaces of the spoke routers is invalid
  B. Split horizon on the hub interface is preventing advertisements
  C. There is a physical Layer 1 issue between one of the spokes and the hub
  D. Split horizon on one of the spoke interfaces is preventing advertisements
  B. Split horizon on the hub interface is preventing advertisements

• Question 712:

  Drag and Drop

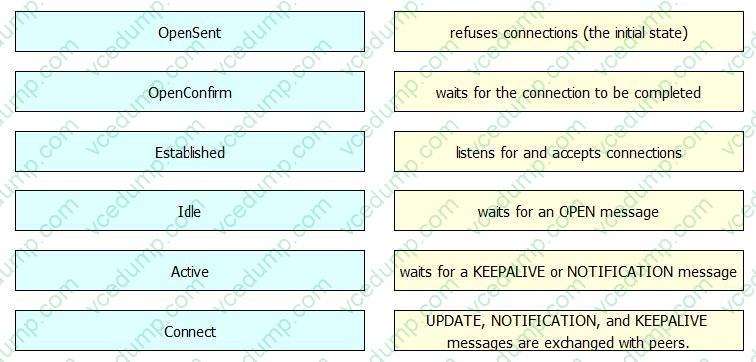

  Drag and drop the BGP states from the left to the matching definitions on the right.

  Select and Place:





• Question 713:

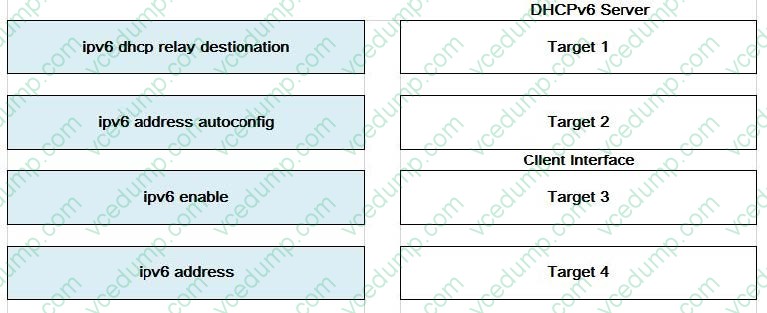

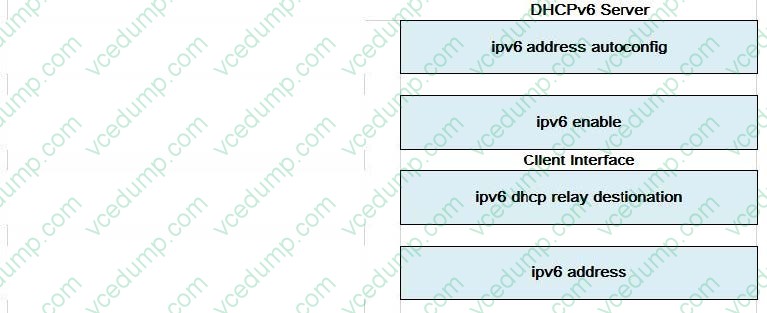

  Drag and Drop

  Select and Place:





• Question 714:

  Which IP SLA operation requires Cisco endpoints?

  A. UDP Jitter for VoIP
  B. ICMP Path Echo
  C. ICMP Echo
  D. UDP Jitter
  A. UDP Jitter for VoIP

• Question 715:

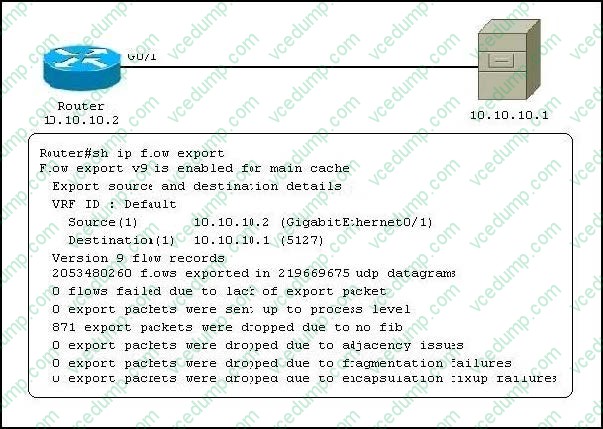

  Refer to the exhibit. Which statement about the command output is true?



  A. The router exports flow information to 10.10.10.1 on UDP port 5127.
  B. The router receives flow information from 10.10.10.2 on UDP port 5127
  C. The router exports flow information to 10.10.10.1 on TCP port 5127
  D. The router receives flow information from 10.10.10.2 on TCP port 5127.
  A. The router exports flow information to 10.10.10.1 on UDP port 5127.

• Question 716:

  One question about ipv6 eigrp features supported (choose two)

  A. Partial Updates
  B. Complete Updates
  C. Windows Update
  D. Scaling
  A. Partial Updates
  D. Scaling

• Question 717:

  Drag and Drop

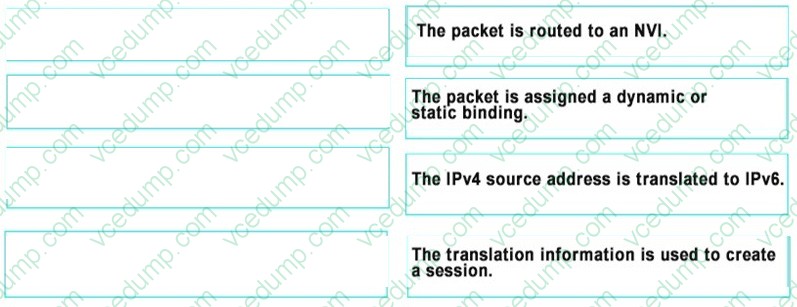

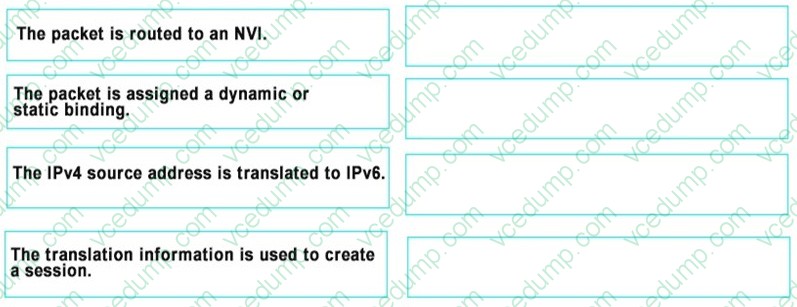

  Drag and drop the steps in the NAT process for IPv4-initiated packers from the left into the correct sequence on the right.

  Select and Place:





• Question 718:

  You have been asked to evaluate an OSPF network setup in a test lab and to answer questions a customer has about its operation. The customer has disabled your access to the show running- config command.



  Which of the following statements is true about the serial links that terminate in R3



  How many times was SPF algorithm executed on R4 for Area 1?

  A. 1
  B. 5
  C. 9
  D. 20
  E. 54
  F. 224
  C. 9

• Question 719:

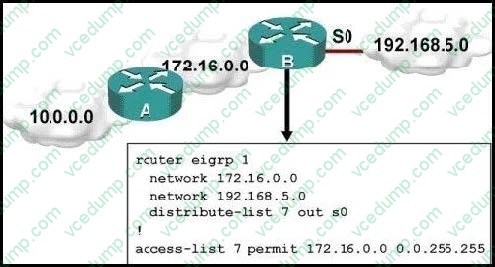

  Refer to the exhibit.



  Which one statement is true?

  A. Traffic from the 172.16.0.0/16 network will be blocked by the ACL.
  B. The 10.0.0.0/8 network will not be advertised by Router B because the network statement for the 10.0.0.0/8 network is missing from Router B.
  C. The 10.0.0.0/8 network will not be in the routing table on Router B.
  D. Users on the 10.0.0.0/8 network can successfully ping users on the 192.168.5.0/24 network, but users on the 192.168.5.0/24 cannot successfully ping users on the 10.0.0.0/8 network
  E. Router B will not advertise the 10.0.0.0/8 network because it is blocked by the ACL.
  E. Router B will not advertise the 10.0.0.0/8 network because it is blocked by the ACL.

• Question 720:

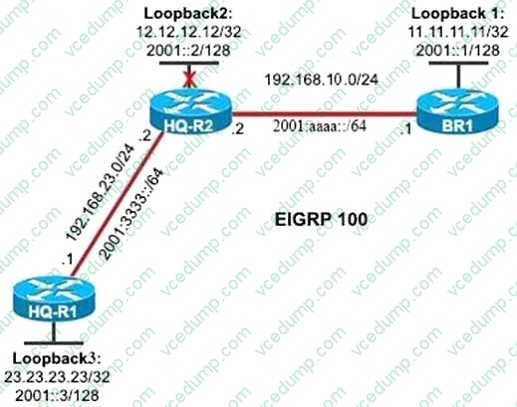

  All interfaces on each router are participating in the EIGRP 100 process. Interface Loopback 2 on HQR2 is currently in shutdown mode. An engineer issues the eigrp stub command on router BR1. Which statements about the query messages sent from router HQ-R2 for a route to reach the 12.12.12.12/32 network is true?

  A. Router HQ-R2 sends a query message to the feasible successor for a route to 12.12.12.12/32 network.
  B. BR1 receives query messages from HQ-R2 for a route to 12.12.12.12/32 network
  C. Router HQ-R1 receives query messages from HQ-R2 for a route to 12.12.12.12/32 network.
  D. Router HQ-R1 and BR1 receives query messages from HQ-R2 for a route to 12.12.12/32 network.
  C. Router HQ-R1 receives query messages from HQ-R2 for a route to 12.12.12.12/32 network.
